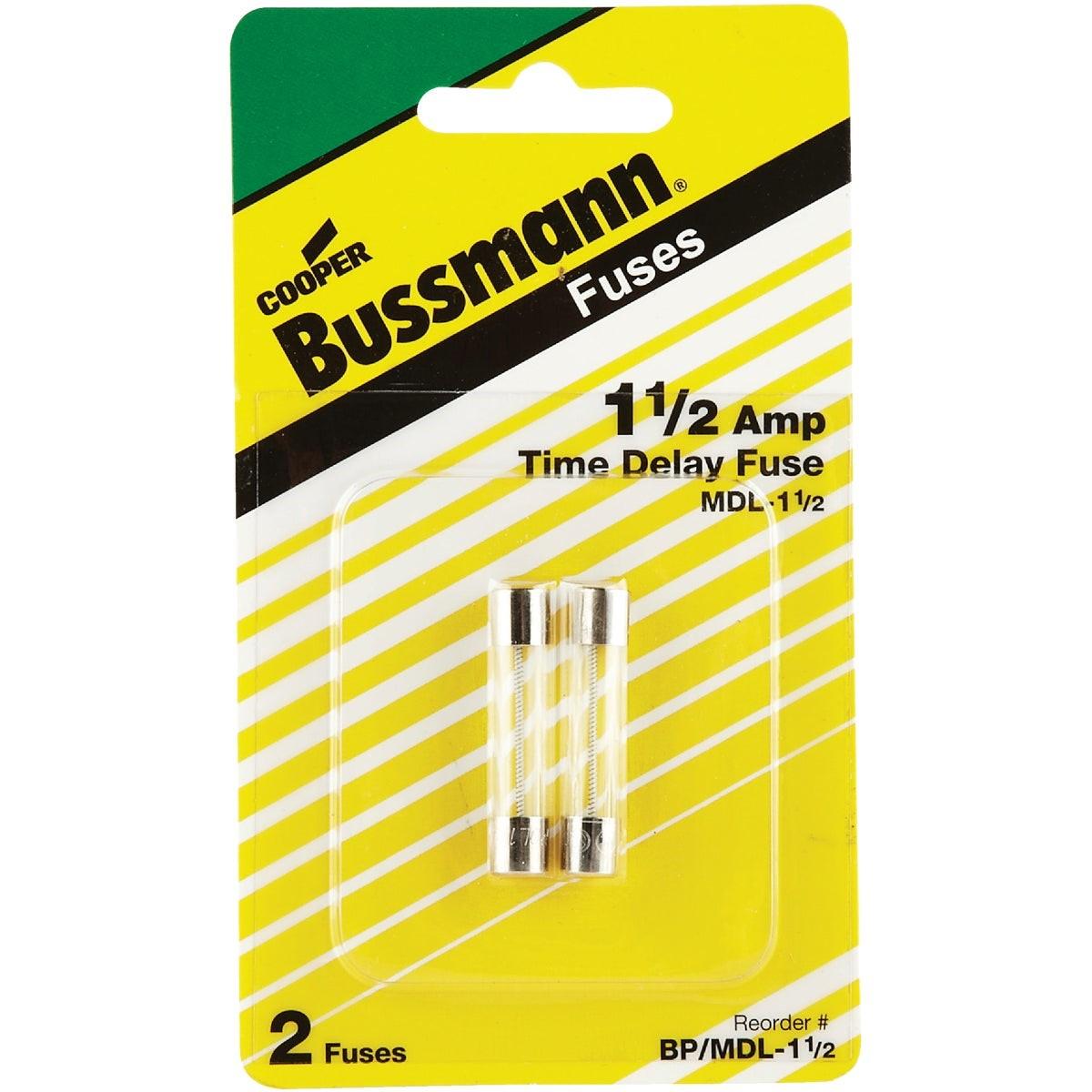

Eaton BP/MDL-1-1/2 Glass Tube Time-delay Fuse 1.5A 2-pack

Product Description

The EATON BP/MDL-1-1/2 is a time-delay (slow-blow) MDL-series glass tube fuse rated at 1.5 amps, sold in a 2-pack. Time-delay fuses are designed to tolerate brief inrush currents at startup without opening, making them the correct choice for loads that draw a short current surge when power is applied. The fuse body measures 1.25 inches in length and 0.25 inches in diameter, conforming to the standard MDL glass tube form factor. The BP/MDL-1-1/2 carries a UL listing, confirming it meets Underwriters Laboratories safety requirements for this fuse class. Electricians and electronics technicians use this fuse in low-current circuit protection applications.

This fuse is used in computers, satellite dishes, office equipment, and other electronic devices that require time-delay overcurrent protection. The MDL glass tube form factor is a widely standardized size found in panel-mount and inline fuse holders across consumer and light commercial electronics. The 2-pack format suits both initial installation and keeping a spare on hand for service calls. This is a low-voltage, low-amperage fuse suited to sensitive electronic load circuits rather than high-current power distribution.

Key Features

• Time-delay (slow-blow) action tolerates startup inrush without nuisance opens
• 1.5 amp rating for low-current electronic circuit protection
• Standard MDL glass tube body: 1.25 inches long, 0.25 inches diameter
• UL listed for safety compliance
• 2-pack provides an immediate replacement spare
• Fits standard MDL-compatible inline and panel-mount fuse holders

Compatibility

Designed as an OEM-style replacement for standard MDL glass tube fuse holders used in computers, satellite dishes, and office equipment requiring a 1.5 amp time-delay fuse.

Installation Notes

Installation should be performed by a qualified electrician or electronics technician. Always de-energize and disconnect power to the equipment before replacing a fuse. Confirm the replacement fuse matches the original amperage rating and fuse type before installing. Never substitute a higher-rated fuse or bypass the fuse holder.

Technical Specifications

• Amperage Rating: 1.5 amps
• Fuse Type: Time-delay (slow-blow)
• Series: MDL
• Body Style: Glass tube
• Length: 1.25 inches
• Diameter: 0.25 inches
• Pack Quantity: 2
• Weight: 0.016 pounds
• Certification: UL Listed
• UPC: 00051712813372

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/MDL-1-1/2
