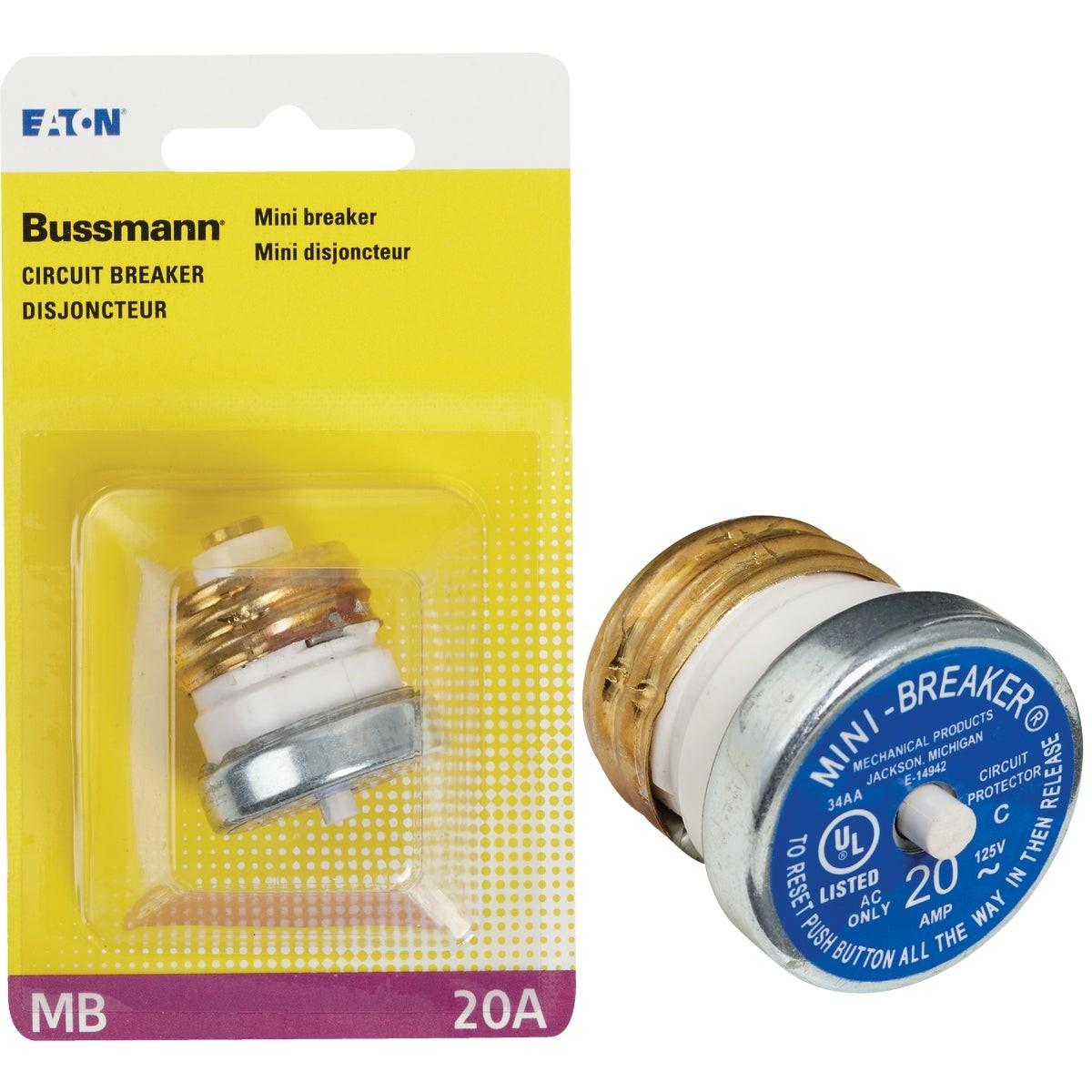

Eaton BP/MB-20 Time-delay Mini-breaker 20A 125V

Product Description

The EATON BP/MB-20 is a time-delay mini-breaker designed as a permanent replacement for Edison base plug fuses. Rated at 20 amps and 125 volts, it installs directly into a standard Edison base fuse socket and restores circuit protection without the need to stock replacement fuses. A built-in time-delay function prevents nuisance tripping during the high inrush current draw that occurs when motors and appliances start up. Resetting is straightforward: press the button to restore current after a trip. The unit is UL listed for residential and light commercial panelboard applications.

This mini-breaker suits residential fuse panels where Edison base fuses are still in service. It is a common solution in older homes and light commercial buildings that have not been upgraded to a modern breaker panel. Electricians and property maintenance technicians install this device when a fuse holder needs a reliable, resettable protective device in place of a one-time-use fuse. It is appropriate for branch circuits feeding general lighting, receptacle loads, and small appliances within the 20-amp, 125-volt rating.

Key Features

• Installs into standard Edison base fuse sockets for direct, permanent fuse replacement
• Resettable by pressing the button — no fuse replacement required after a trip
• Built-in time delay handles motor and appliance inrush current, reducing nuisance trips
• Rated 20 amps at 125 volts for standard residential branch circuit protection
• UL listed for safety compliance in residential and light commercial installations

Compatibility

Designed as an OEM-style replacement for most Edison base plug fuses in residential and light commercial fuse panels rated for 125-volt branch circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). Always shut off the main panel disconnect or de-energize the fuse block before removing the existing fuse or installing this device. Confirm the panel and circuit voltage rating matches the 125-volt rating of this breaker before installation. Do not install in panels rated above 125 volts or on circuits exceeding 20 amps.

Technical Specifications

• Amperage: 20 amps
• Voltage: 125 volts
• Base Type: Edison base
• Function: Time-delay, resettable
• Weight: 0.096 pounds
• Listing: UL listed
• Minimum Order Quantity: 1

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/MB-20
