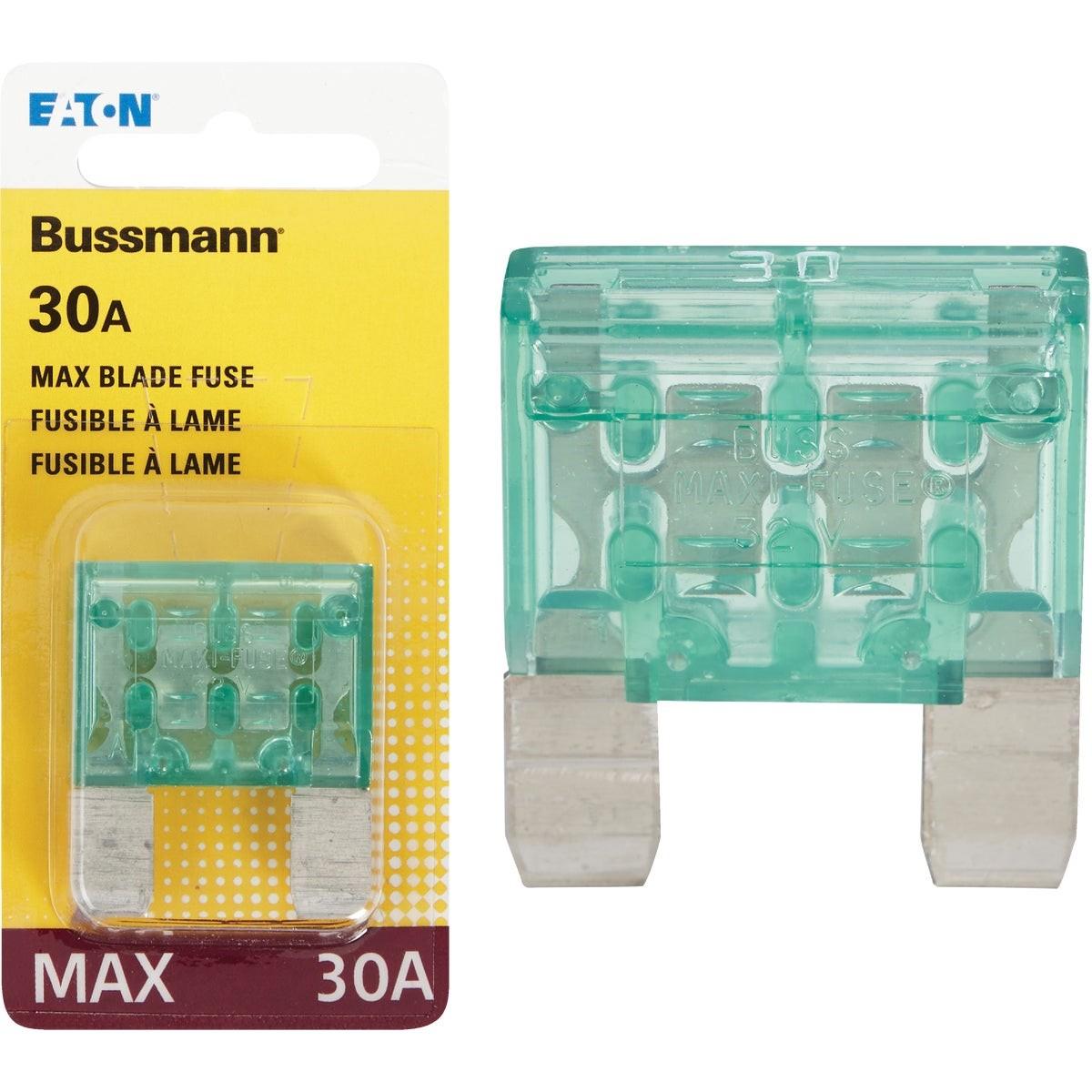

Eaton BP/MAX-30-RP Blade Maxi Automotive Fuse 30A 32V

Product Description

The EATON BP/MAX-30-RP is a blade-type Maxi automotive fuse rated at 30 amps and 32 volts. Maxi fuses are larger-format blade fuses used to protect high-current circuits in vehicle electrical systems, including main power distribution, high-draw accessories, and underhood fuse block applications. This fuse provides overcurrent protection by opening the circuit when current exceeds the rated threshold, preventing damage to wiring and connected components. It is installed by automotive technicians and fleet service professionals working on passenger vehicles and light trucks.

The BP/MAX-30-RP is suited for use in late-model domestic and import passenger cars and light trucks that use Maxi blade-style fuse holders. Maxi fuses are commonly found in underhood fuse and relay centers, protecting circuits such as alternator output feeds, cooling fan motors, and other high-amperage loads. The 32-volt rating covers standard 12-volt automotive electrical systems with adequate margin.

Key Features

• 30-amp rating for high-current automotive circuit protection
• 32-volt rating compatible with standard 12-volt vehicle electrical systems
• Blade Maxi form factor fits Maxi fuse holders in underhood fuse centers
• Compatible with most late-model domestic and import vehicles
• Single-piece retail pack with minimum order quantity of one

Compatibility

Compatible with most late-model domestic and import cars and light trucks equipped with Maxi blade-style fuse holders.

Installation Notes

Maxi fuses are serviced by automotive technicians and electricians working on vehicle electrical systems. Disconnect the vehicle battery or isolate the circuit before removing or installing fuses to prevent arcing and accidental circuit activation. Always replace a blown fuse with one of the same amperage rating — installing a higher-rated fuse will not protect the wiring and can cause a fire hazard. Verify the root cause of any overcurrent condition before installing the replacement fuse.

Technical Specifications

• Amperage Rating: 30 amps
• Voltage Rating: 32 volts
• Fuse Type: Blade Maxi
• Weight: 0.035 pounds
• UPC: 00051712174701

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/MAX-30-RP
