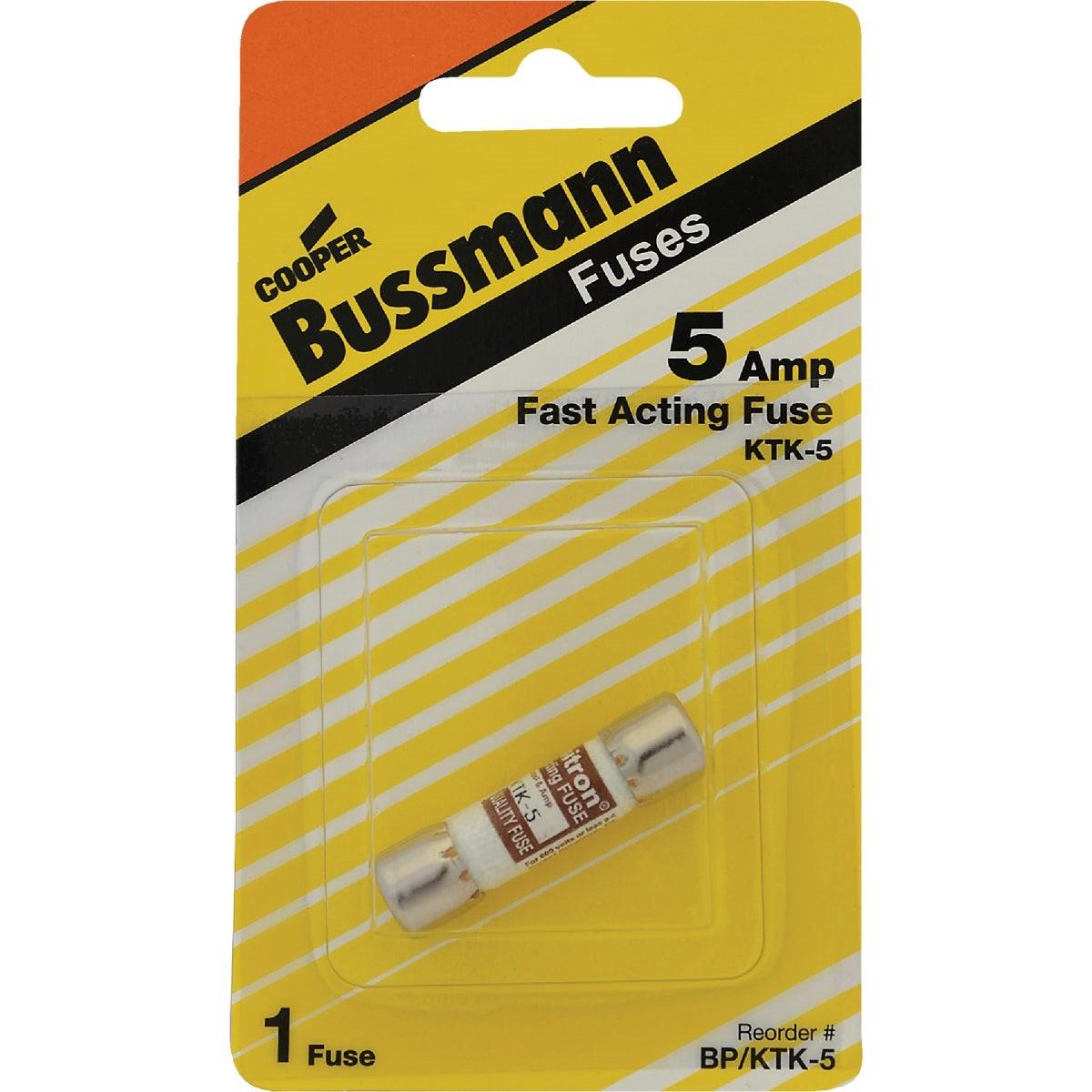

Eaton BP/KTK-5 Limitron Ktk Midget Cartridge Fuse 5A

Product Description

The EATON BP/KTK-5 is a fast-acting supplemental midget cartridge fuse in the Limitron KTK series, rated at 5 amps and 600 volts maximum. It features a high-strength melamine tube that supports a high interrupting rating, making it suitable for protecting sensitive control equipment and branch circuits. The compact form factor measures 1.5 inches in length and 0.406 inches in diameter, fitting standard midget fuse holders. Licensed electricians and instrumentation technicians are the primary installers of this fuse type.

This fuse is designed for use in control circuits, lighting circuits, and meter circuits where supplemental overcurrent protection is required. Its fast-acting response characteristic makes it well suited for applications where equipment must be protected quickly from overcurrent conditions. It is commonly found in industrial control panels, commercial lighting systems, and metering equipment where space-saving midget fuse formats are specified.

Key Features

• Fast-acting current response for rapid overcurrent protection
• High-strength melamine tube construction supports high interrupting rating
• 600V maximum voltage rating for versatile circuit application
• Compact midget cartridge format: 1.5 inches long by 0.406 inches diameter
• UL Listed for use in supplemental overcurrent protection applications

Compatibility

Designed as an OEM-style supplemental midget fuse replacement compatible with standard KTK-style midget fuse holders rated for 600V applications including control circuits, lighting circuits, and meter circuits.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Always de-energize and lock out the circuit before replacing a fuse. Verify the replacement fuse matches the circuit voltage and ampere rating before installation. Do not install a fuse with a higher ampere rating than the circuit is designed to carry.

Technical Specifications

• Ampere Rating: 5 amps
• Voltage Rating: 600 volts
• Fuse Class: KTK Supplemental Midget
• Response Type: Fast-Acting
• Length: 1.5 inches
• Diameter: 0.406 inches
• Body Material: High-Strength Melamine Tube
• Weight: 0.035 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/KTK-5
