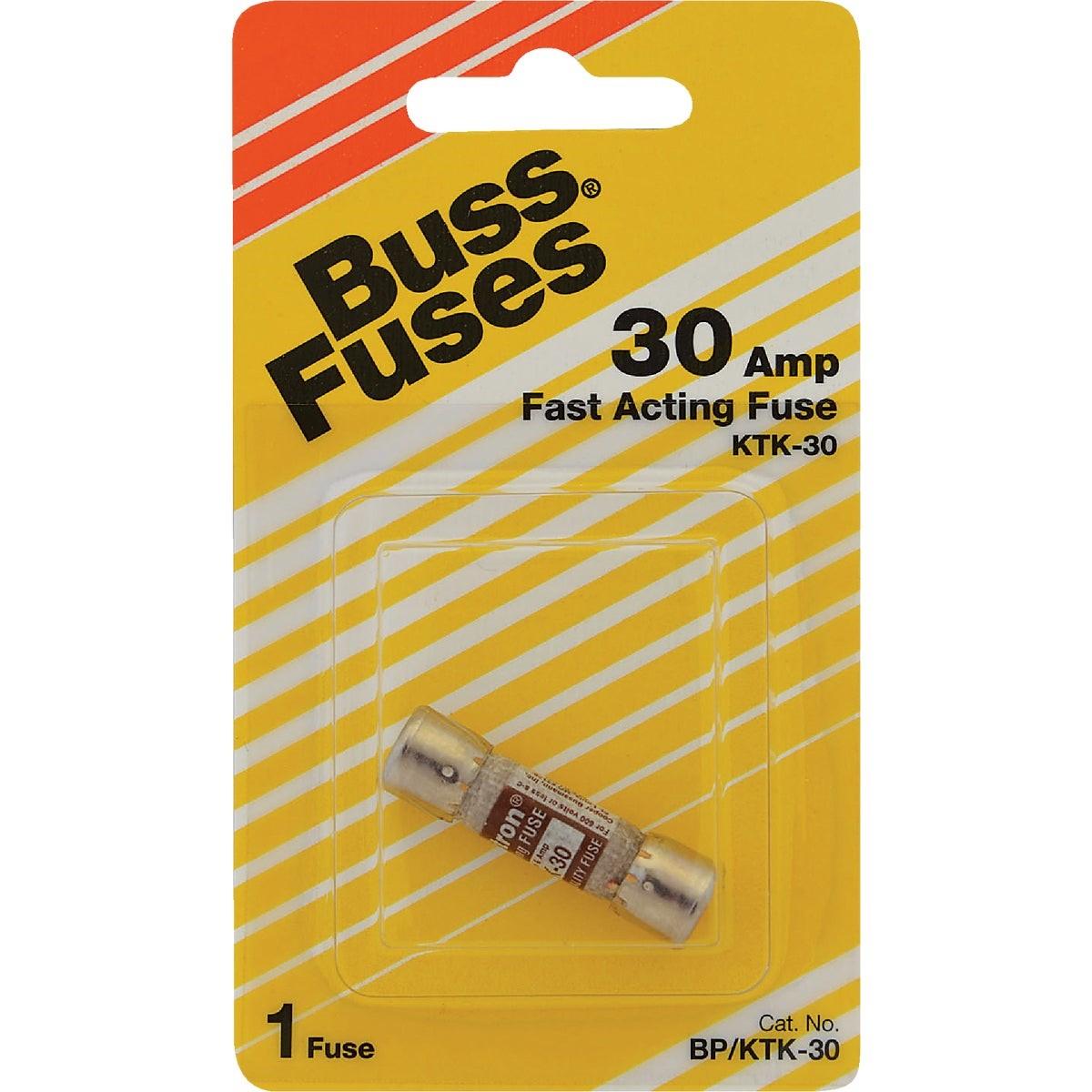

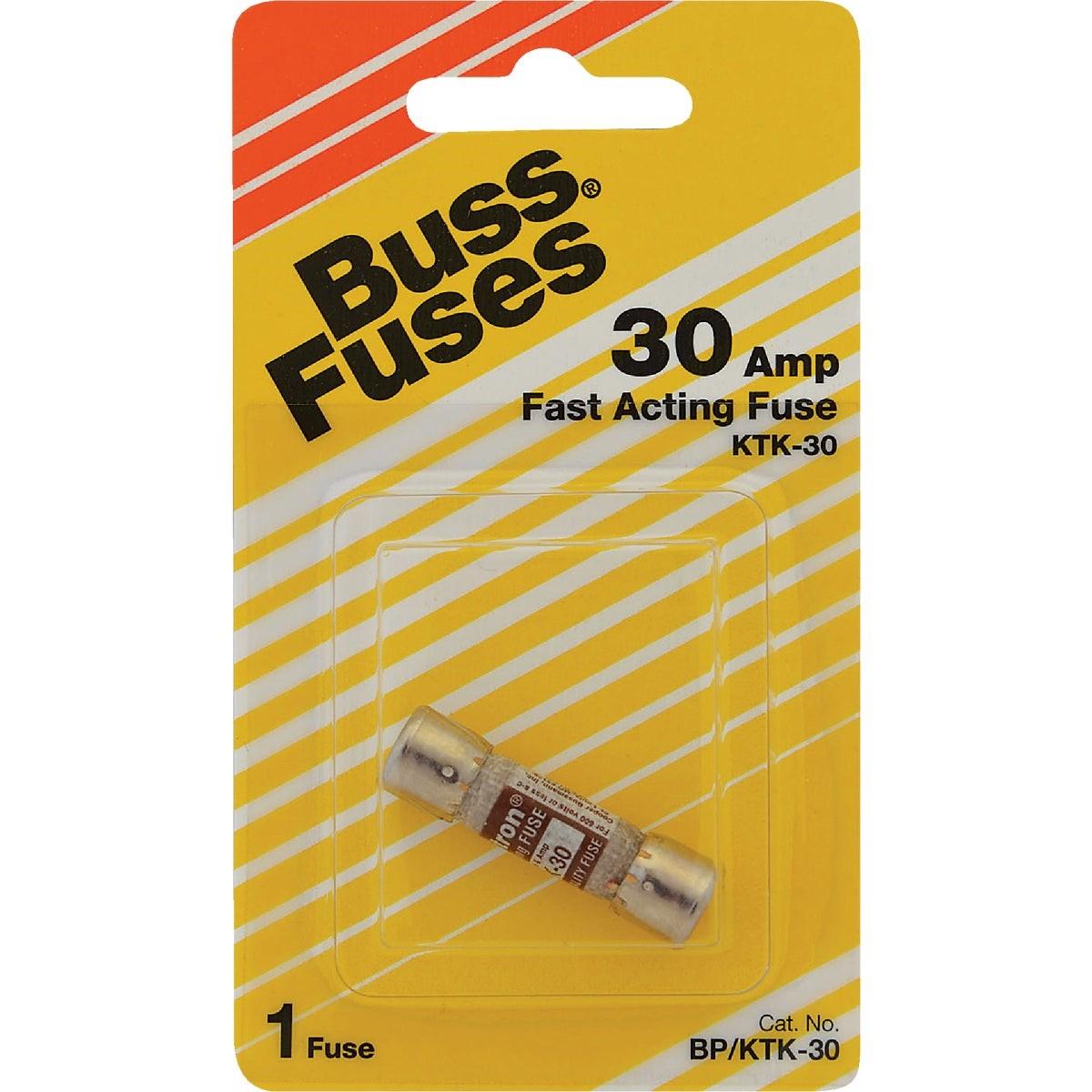

Eaton BP/KTK-30 Limitron Ktk Midget Fuse 30A 600V

Product Description

The EATON BP/KTK-30 is a Limitron fast-acting supplemental midget fuse rated at 30 amps and 600 volts maximum. It is built with a high-strength melamine tube that supports a high interrupting rating, making it suited for branch-circuit protection in control, lighting, and meter circuit applications. The fuse measures 1.5 inches in length and 0.406 inches in diameter, conforming to the standard KTK midget form factor. Licensed electricians and panel technicians install this fuse in industrial control panels, machine tool circuits, and similar low-voltage distribution equipment where compact overcurrent protection is required.

This fuse is designed for use in supplemental overcurrent protection applications where a fast-acting response is critical. Common installations include control circuits, lighting circuits, and meter circuits in commercial and industrial environments. The KTK cartridge format fits standard midget fuse holders and blocks. It is sold as a single unit.

Key Features

• Fast-acting response characteristic for protection of sensitive control circuit components
• High-strength melamine tube construction supports a high interrupting rating
• Rated 30 amps at 600 volts maximum
• Standard KTK midget cartridge form factor: 1.5 inches long by 0.406 inches in diameter
• UL Listed for supplemental overcurrent protection applications
• Fits standard midget fuse holders designed for the KTK series

Compatibility

Designed as a supplemental overcurrent protection replacement for standard KTK-series midget fuse holders and fuse blocks rated for 600 volts and the KTK cartridge form factor.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before removing or installing any fuse. Verify the fuse holder is rated for 600 volts and compatible with the KTK midget cartridge form factor before installation. Do not install a fuse with a higher ampere rating than the circuit or equipment manufacturer specifies.

Technical Specifications

• Amperage Rating: 30 amps
• Voltage Rating: 600 volts
• Fuse Type: Fast-Acting Supplemental Midget Cartridge
• Series: KTK Limitron
• Length: 1.5 inches
• Diameter: 0.406 inches
• Tube Material: Melamine
• Weight: 0.035 pounds
• Certifications: UL Listed
• Unit of Measure: Pack
• Minimum Order Quantity: 1

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/KTK-30
