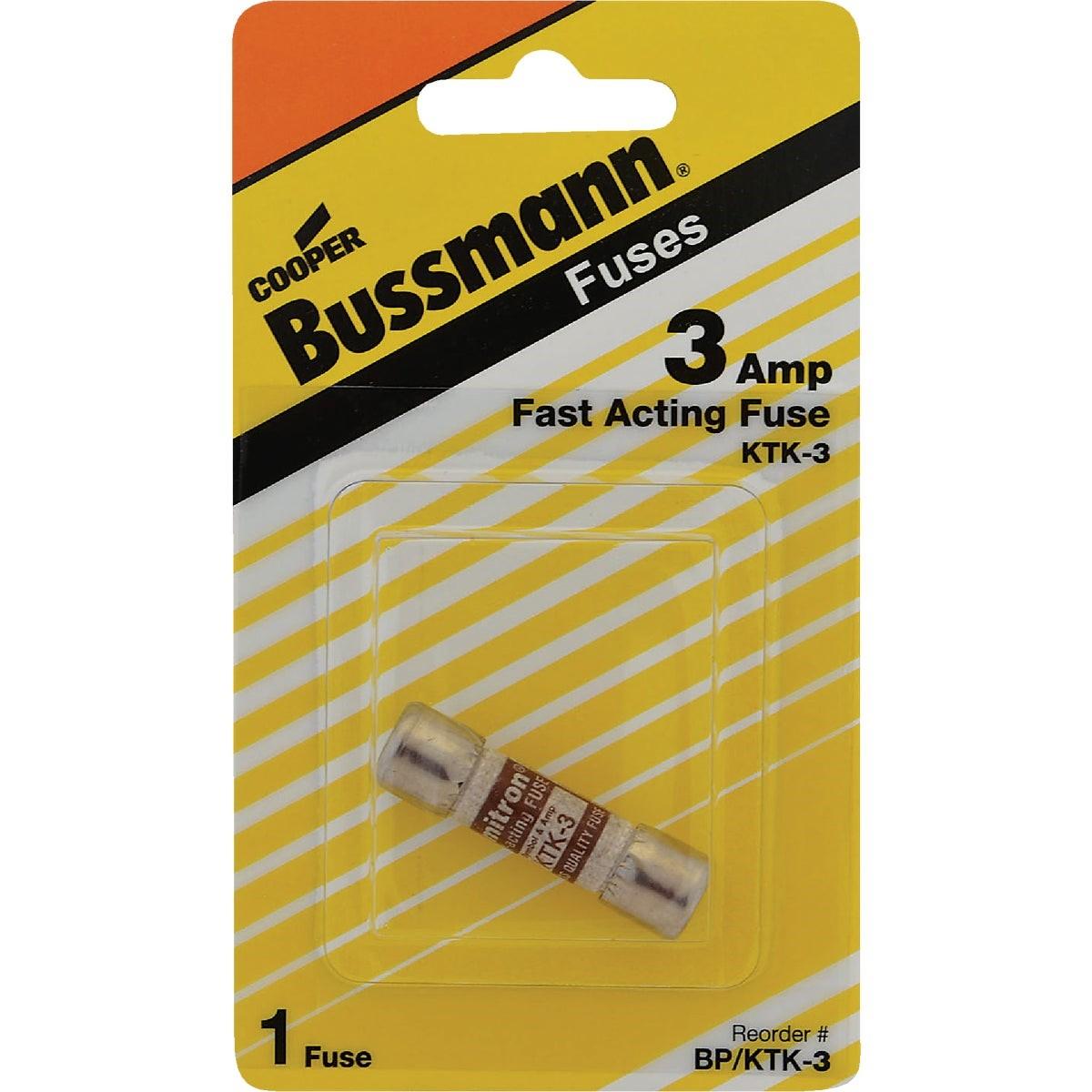

Eaton BP/KTK-3 Limitron Ktk 3A 600V Midget Cartridge Fuse

Product Description

The EATON BP/KTK-3 is a fast-acting supplemental midget fuse in the Limitron KTK series, designed for overcurrent protection in low-amperage control and lighting circuits. Rated at 3 amps and 600 volts maximum, it features a high-strength melamine tube that supports a high interrupting rating. The cartridge body measures 1.5 inches in length by 0.406 inches in diameter. Licensed electricians and controls technicians install this fuse in panel boards, control enclosures, and distribution equipment where supplemental circuit protection is required.

The BP/KTK-3 is suited for residential, commercial, and light industrial applications. Typical installation locations include control circuits, lighting circuits, and meter circuits. The fast-acting response characteristic makes it appropriate for protecting sensitive electronic components and instrumentation where delayed-response fuses would allow damaging overloads to pass through.

Key Features

• Fast-acting response for protection of control and instrumentation circuits
• High-strength melamine tube construction supports high interrupting rating
• 3A current rating at 600V maximum
• Compact cartridge form factor: 1.5 inches long by 0.406 inches in diameter
• UL Listed for supplemental overcurrent protection

Compatibility

Designed as an OEM-style replacement or supplemental midget fuse for use in KTK-series fuseholders and control panel fuse blocks rated for 13/32-inch diameter cartridge fuses.

Installation Notes

Installation of supplemental fuses should be performed by a licensed electrician in accordance with NEC requirements. De-energize and lock out the circuit before removing or installing any fuse. Verify that the fuseholder is rated for the KTK cartridge form factor and that the circuit voltage and amperage do not exceed the fuse ratings. Do not substitute a higher-amperage fuse to restore a tripped circuit without first identifying the cause of the overcurrent condition.

Technical Specifications

• Current Rating: 3A
• Voltage Rating: 600V maximum
• Fuse Type: Fast-Acting Supplemental Midget Cartridge
• Series: Limitron KTK
• Length: 1.5 inches
• Diameter: 0.406 inches
• Body Material: High-strength melamine tube
• Weight: 0.035 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/KTK-3
