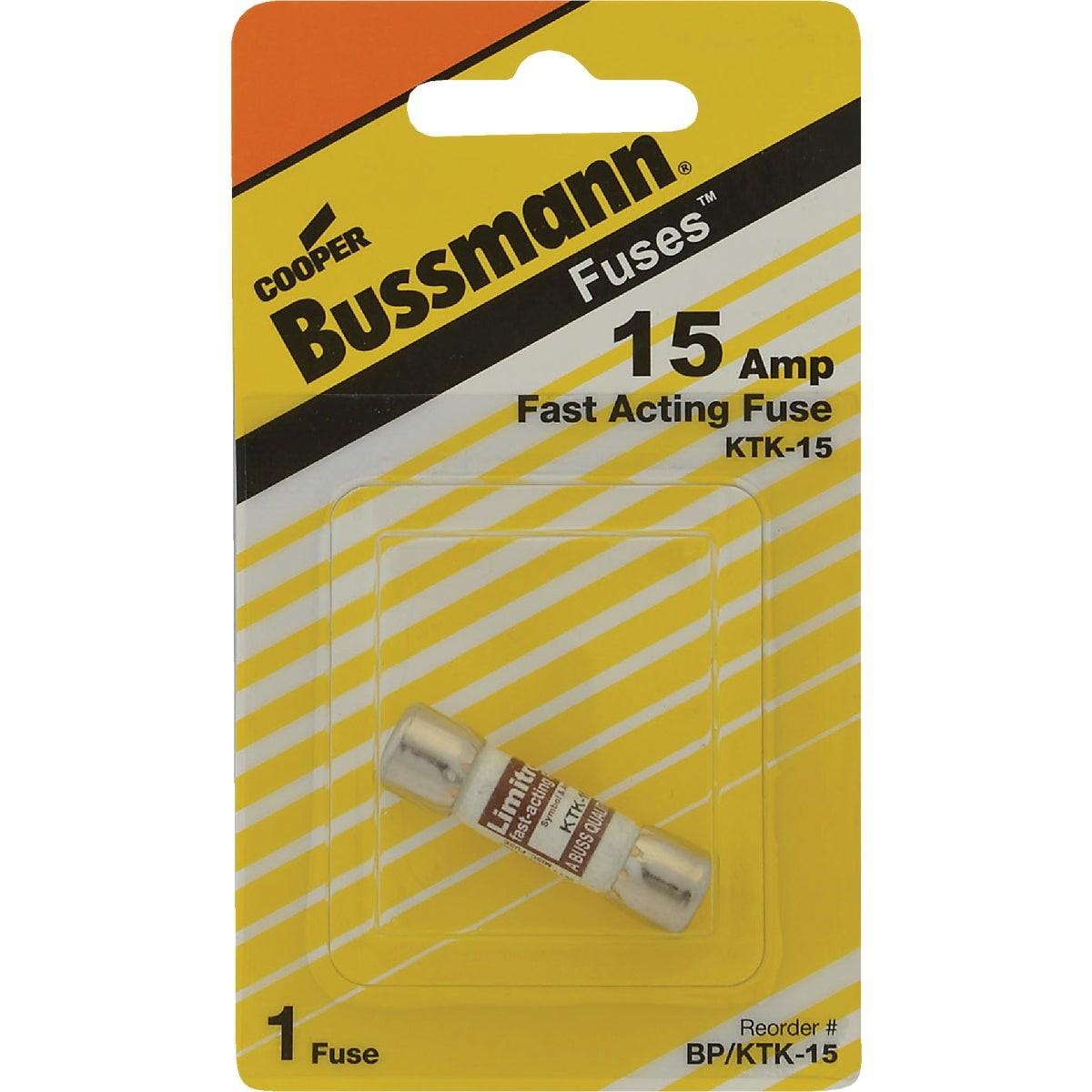

Eaton BP/KTK-15 Limitron Ktk Midget Fuse 15A 600V

Product Description

The EATON BP/KTK-15 is a fast-acting supplemental midget fuse in the Limitron KTK series, designed for overcurrent protection in low-amperage branch and control circuits. Rated at 15 amps and 600 volts maximum, this cartridge fuse features a high-strength melamine tube that delivers a high interrupting rating suited to demanding electrical environments. The compact form factor measures 1.5 inches in length by 0.406 inches in diameter, fitting standard midget fuse blocks. Licensed electricians and industrial maintenance technicians install this fuse as supplemental protection in panels, control enclosures, and metering equipment.

The BP/KTK-15 is suited for residential, commercial, and light industrial applications where supplemental overcurrent protection is required. Typical circuits include machine control circuits, lighting circuits, and meter circuits. The fast-acting response makes it appropriate for protecting sensitive downstream components where time-delay characteristics would allow excess fault current to pass. The KTK form factor fits Class CC-style midget fuse holders and standard 13/32-inch ferrule fuse blocks widely used in control panel construction.

Key Features

• Fast-acting overcurrent response protects sensitive control and lighting circuits
• High-strength melamine tube construction supports a high interrupting rating
• 600-volt maximum rating suitable for standard control and branch circuit applications
• Compact midget cartridge format: 1.5 inches long by 0.406 inches in diameter
• UL Listed supplemental fuse for use in identified fuse holders
• Single-piece pack with a minimum order quantity of one

Compatibility

Designed for use in standard 13/32-inch ferrule midget fuse holders and KTK-rated fuse blocks used in control circuits, lighting circuits, and meter circuits. Use only in fuse holders identified for supplemental fuse applications.

Installation Notes

Installation and replacement of branch circuit and supplemental fuses must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always de-energize and lock out the circuit before removing or installing any fuse. Verify the fuse holder is rated for KTK supplemental midget fuses before installing. Do not substitute a higher-amperage fuse to clear a nuisance opening -- investigate and correct the underlying fault condition first.

Technical Specifications

• Amperage Rating: 15 amps
• Voltage Rating: 600 volts maximum
• Fuse Type: Fast-acting supplemental midget cartridge
• Series: Limitron KTK
• Length: 1.5 inches
• Diameter: 0.406 inches (13/32 inches)
• Tube Material: High-strength melamine
• Weight: 0.035 pounds
• Certifications: UL Listed
• UPC: 00051712636780

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/KTK-15
