Eaton BP/HHM-RP In-line Blade Fuse Holder 30 Amp Atm

Product Description

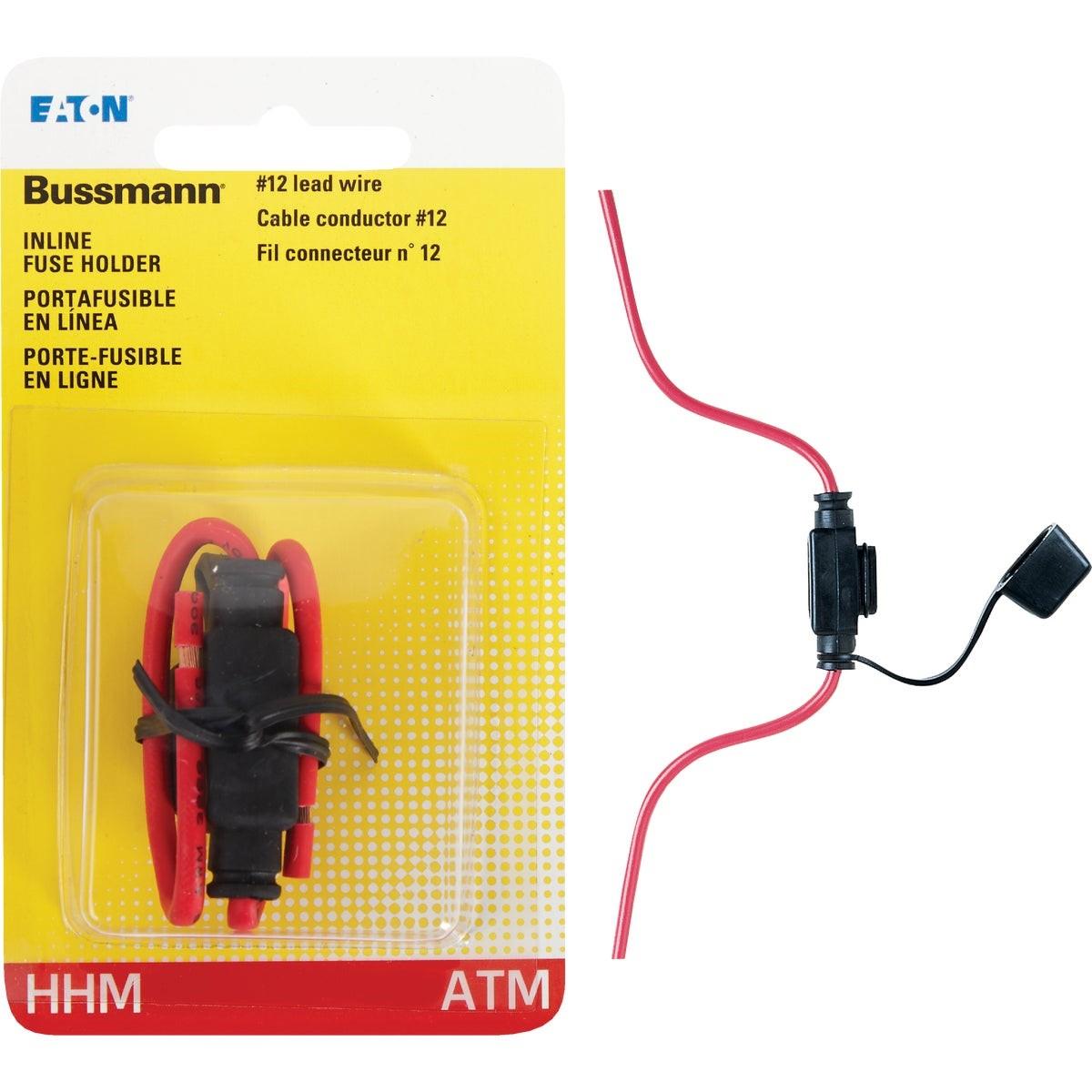

The EATON BP/HHM-RP is an in-line blade fuse holder designed for ATM mini blade-type fuses rated up to 30 amps at 32 volts DC. It includes a lead wire for direct inline installation and a protective cap to shield the fuse from moisture, debris, and accidental contact. This type of fuse holder is commonly installed in automotive, marine, and low-voltage DC circuits where a serviceable overcurrent protection point is needed outside of a fuse block. Electricians and automotive technicians install this component wherever a branch circuit or accessory wire requires dedicated fuse protection in a compact, accessible format.

This fuse holder fits standard ATM mini blade fuses, making it well suited for automotive accessory wiring, trailer harnesses, marine electrical systems, and low-voltage DC power distribution in vehicles or equipment. The inline design allows installation anywhere along a wire run without the need for a panel-mounted fuse block. It is a practical solution for add-on circuits, aftermarket accessory installs, and field repair applications where a replacement fuse point is needed quickly.

Key Features

• Accepts ATM mini blade-type fuses up to 30 amps
• Rated for 32 volts DC service
• Includes lead wire for direct inline integration into a wire harness
• Protective cap shields fuse from contamination and accidental contact
• Compact form factor suitable for tight wiring runs and enclosed spaces

Compatibility

Designed for use with ATM mini blade-type fuses in 12-volt and 24-volt DC automotive, marine, and low-voltage equipment circuits not exceeding 30 amps and 32 volts DC.

Installation Notes

Disconnect the power source or battery before installing or servicing this fuse holder. Strip the circuit wire to the appropriate length, connect the lead wires using suitable crimp connectors or solder joints rated for the application, and ensure polarity and circuit amperage do not exceed the 30-amp and 32-volt DC ratings. Route the assembly away from sharp edges, heat sources, and moving parts, and secure the protective cap firmly after fuse installation to maintain protection against moisture ingress.

Technical Specifications

• Fuse Type: ATM Mini Blade
• Maximum Current Rating: 30 amps
• Maximum Voltage Rating: 32 volts DC
• Holder Style: In-Line with Lead Wire
• Protective Cap: Included
• Weight: 0.07 pounds
• UPC: 00051712182485

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/HHM-RP
