Eaton BP/HHD-RP Inline Blade Fuse Holder 20 Amp Atc

Product Description

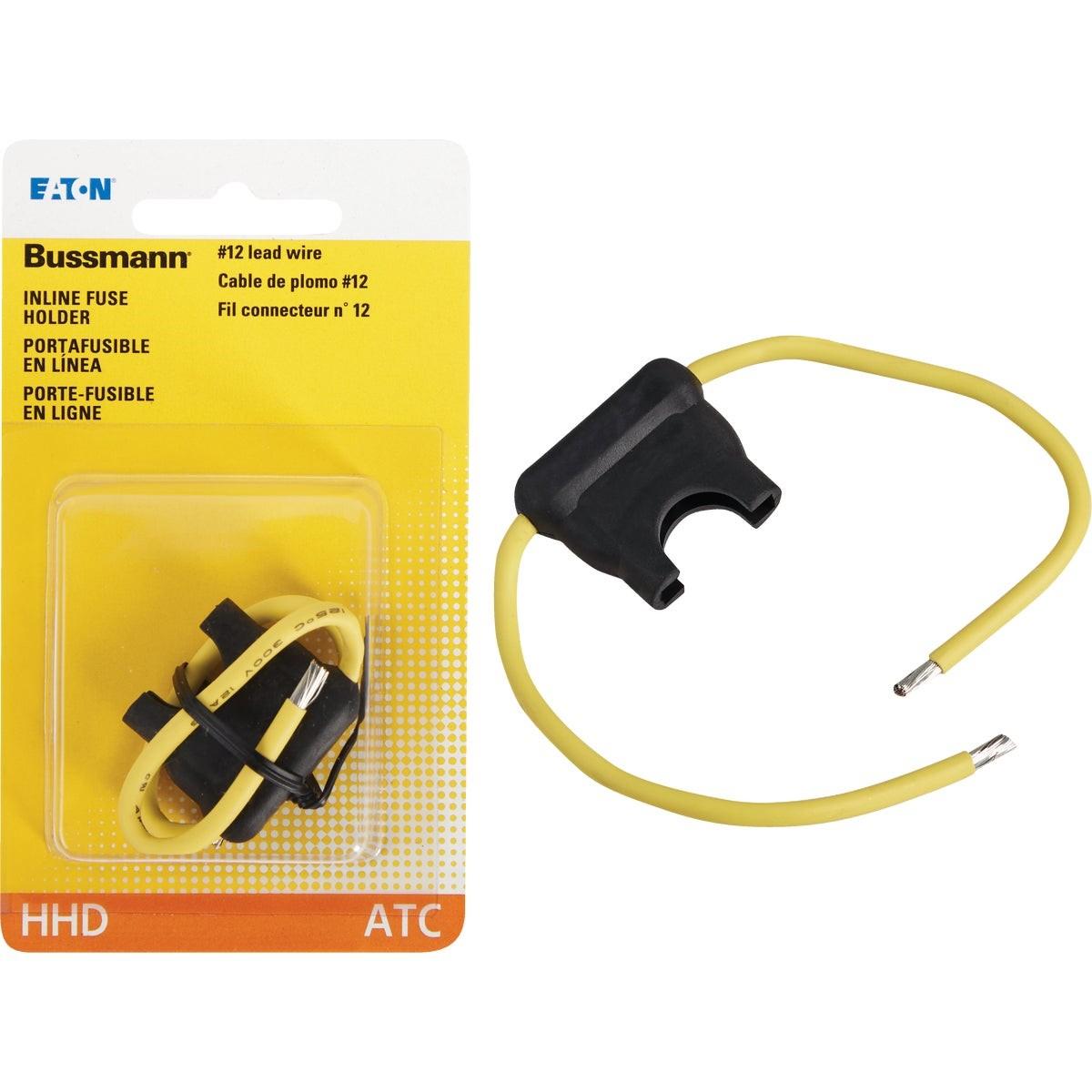

The EATON BP/HHD-RP is an inline fuse holder designed for blade-type ATC fuses rated up to 20 amps. It provides a secure, weatherproof-grade housing for a single ATC blade fuse in line with a wiring circuit, protecting equipment from overcurrent faults. The internal wiring meets UL 3266 standards, and the connector interface meets the SAE J2030 heavy-duty electrical connector performance standard. Licensed electricians, automotive technicians, and marine or fleet maintenance professionals install this holder wherever ATC fuse protection is needed in a dedicated wire run.

This fuse holder suits a range of low-voltage DC wiring applications including automotive, light truck, marine, RV, and mobile equipment electrical systems. It is sized for standard ATC blade fuses and is well suited to aftermarket wiring harnesses, accessory circuits, and field-installed electrical protection runs. The holder can be routed along any wire path that requires an accessible, in-line serviceable fuse point.

Key Features

• Accepts standard ATC blade-type fuses rated up to 20 amps
• Internal wiring rated to UL 3266 insulation standard
• Connector meets SAE J2030 heavy-duty electrical connector performance requirements
• Inline design integrates directly into a wire run for easy fuse access and replacement
• Sold in minimum pack quantity of 5 units

Compatibility

Designed as an OEM-style inline holder for standard ATC blade fuses up to 20 amps. Suitable for use in automotive, marine, RV, and mobile equipment low-voltage DC wiring circuits where ATC blade fuse protection is required.

Installation Notes

Installation should be performed by a qualified electrician or technician familiar with low-voltage DC wiring practices. Disconnect the power source or battery before cutting into any existing circuit and inserting the fuse holder. Route the holder away from heat sources, sharp edges, and moving parts, and secure the wiring to prevent chafing. Follow applicable wiring codes and vehicle or equipment manufacturer guidelines for circuit protection requirements.

Technical Specifications

• Fuse Type: ATC Blade
• Current Rating: 20 amps
• Wire Standard: UL 3266
• Connector Standard: SAE J2030
• Weight: 0.072 pounds
• Unit of Measure: Pack
• Minimum Order Quantity: 5

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/HHD-RP
