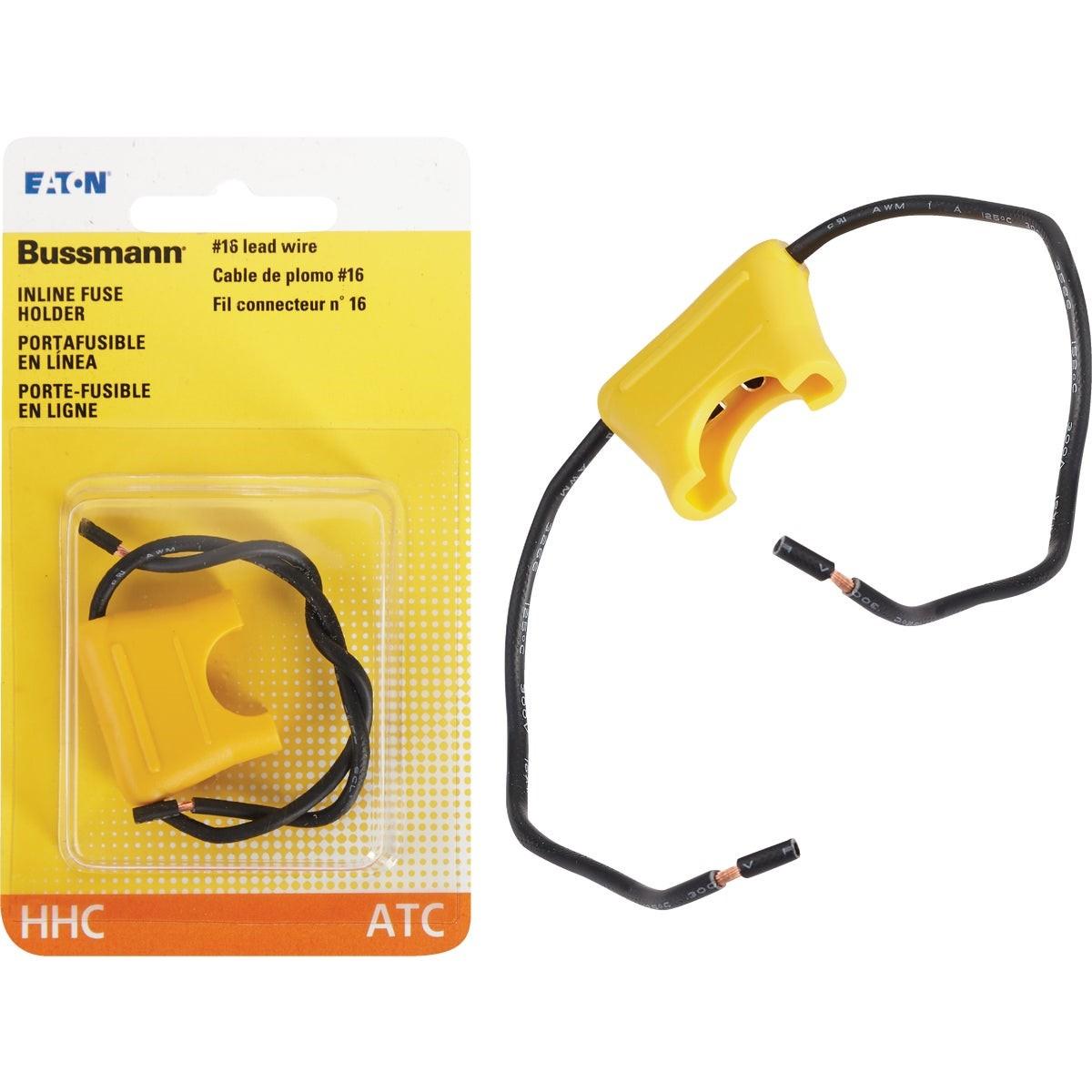

Eaton BP/HHC-RP Inline Blade Fuse Holder 20 Amp Atc

Product Description

The EATON BP/HHC-RP is an inline fuse holder designed for blade-type ATC fuses rated up to 20 amps. It provides a secure, weatherproof-ready connection point in low-voltage wiring circuits where individual circuit protection is required outside of a fuse block or panel. The holder wire is constructed to UL 3266 standards, and the connector meets SAE J2030 heavy-duty electrical connector performance requirements. Licensed electricians and automotive or mobile equipment technicians install this type of holder in vehicles, trailers, engine compartments, and accessory circuits where an inline fuse is the preferred protection method.

This fuse holder is suited for 12-volt and 24-volt DC automotive and light commercial electrical systems using standard ATC blade fuses. Typical applications include inline circuit protection for added accessories, trailer wiring, marine electrical systems, and fleet vehicle upfitting. It is also used in HVAC equipment wiring harnesses and control circuits where blade-type fuse protection is specified by the equipment manufacturer.

Key Features

• Accepts standard ATC blade-type fuses up to 20 amps
• Wire construction meets UL 3266 for safety and durability
• Connector meets SAE J2030 heavy-duty electrical connector performance standard
• Inline design allows installation anywhere along a wiring run without a fuse panel
• Sold in a pack with a minimum quantity of 5 units per order

Compatibility

Designed as an OEM-style inline fuse holder compatible with standard ATC blade-type fuses rated at 20 amps.

Installation Notes

Installation should be performed by a licensed electrician or qualified technician familiar with low-voltage DC wiring practices. Disconnect the power source or disconnect the battery before installing or servicing the fuse holder. Route the holder in a location protected from excessive heat, abrasion, and moisture exposure whenever possible. Follow applicable SAE and NEC guidelines for circuit protection and wire sizing to ensure a safe, code-compliant installation.

Technical Specifications

• Current Rating: 20 amps
• Fuse Type: ATC Blade
• Wire Standard: UL 3266
• Connector Standard: SAE J2030
• Weight: 0.054 pounds
• Unit of Measure: Pack
• Minimum Order Quantity: 5

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/HHC-RP
