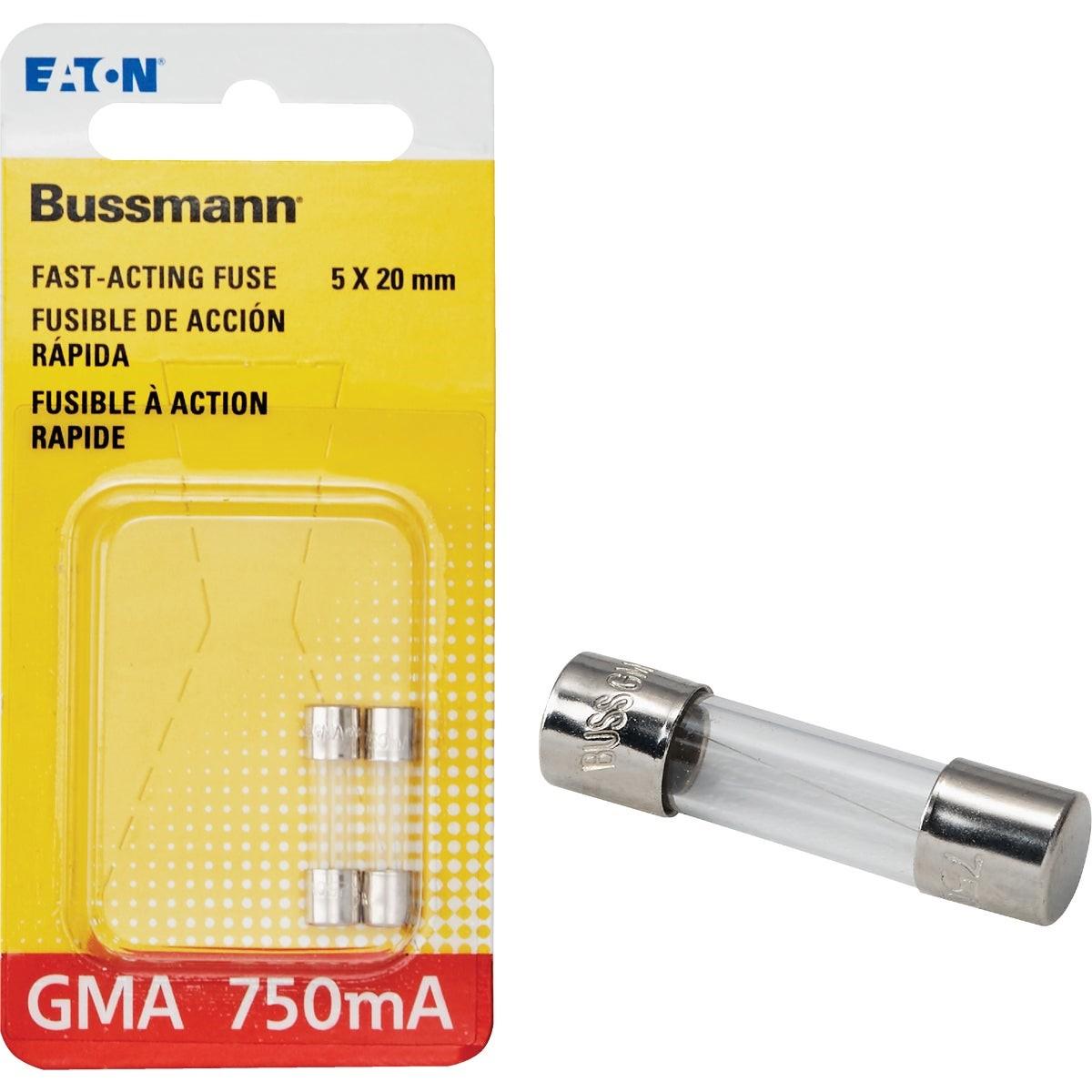

Eaton BP/GMA-750MA 750ma Glass Tube Fuse 2-pack

Product Description

The EATON BP/GMA-750MA is a fast-acting glass cartridge fuse rated at 750 milliamps (mA), packaged in a two-piece retail blister pack. Measuring 5 mm in diameter by 20 mm in length, this miniature GMA-series fuse is designed for overcurrent protection in low-current electronic circuits. Fast-acting construction means the fuse responds quickly to fault conditions without intentional delay, making it appropriate where downstream components require immediate protection. It carries a UL listing for use in applicable electronic equipment applications. Licensed electricians and electronics technicians are the typical installers.

This fuse is suited for testers, meters, bench instruments, and other small electronic equipment that requires a standardized 5x20mm glass tube fuse. The fast-acting characteristic makes it a fit for circuits that do not experience normal inrush current surges, such as resistive loads and sensitive signal-path equipment. The 750mA rating targets low-power circuits where precision overcurrent protection is critical to protecting downstream components from damage.

Key Features

• Fast-acting response for immediate overcurrent protection in sensitive electronic circuits
• 750mA current rating for low-power electronic applications
• Standard 5x20mm glass tube body fits common fuse holders and panel mounts
• UL listed construction for use in applicable electronic equipment
• Two-pack blister packaging for convenient bench stock replenishment

Compatibility

Designed as an OEM-style replacement for standard 5x20mm fast-acting glass tube fuse positions commonly found in electronic testers, bench instruments, and small electronic equipment.

Installation Notes

De-energize and unplug the equipment fully before removing or installing any fuse. Confirm the replacement fuse rating matches the equipment nameplate or schematic specification exactly — substituting a higher-rated fuse can damage downstream components or create a fire hazard. Use an appropriate fuse puller or needle-nose pliers rather than fingers to seat or remove the fuse in the holder. Installation should comply with applicable NEC guidelines and the equipment manufacturer's service documentation.

Technical Specifications

• Current Rating: 750 mA
• Fuse Type: Fast Acting
• Body Style: Glass Tube Cartridge
• Dimensions: 5 mm diameter x 20 mm length
• Package Quantity: 2
• Weight: 0.017 pounds
• Certifications: UL Listed
• UPC: 00051712539012

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/GMA-750MA
