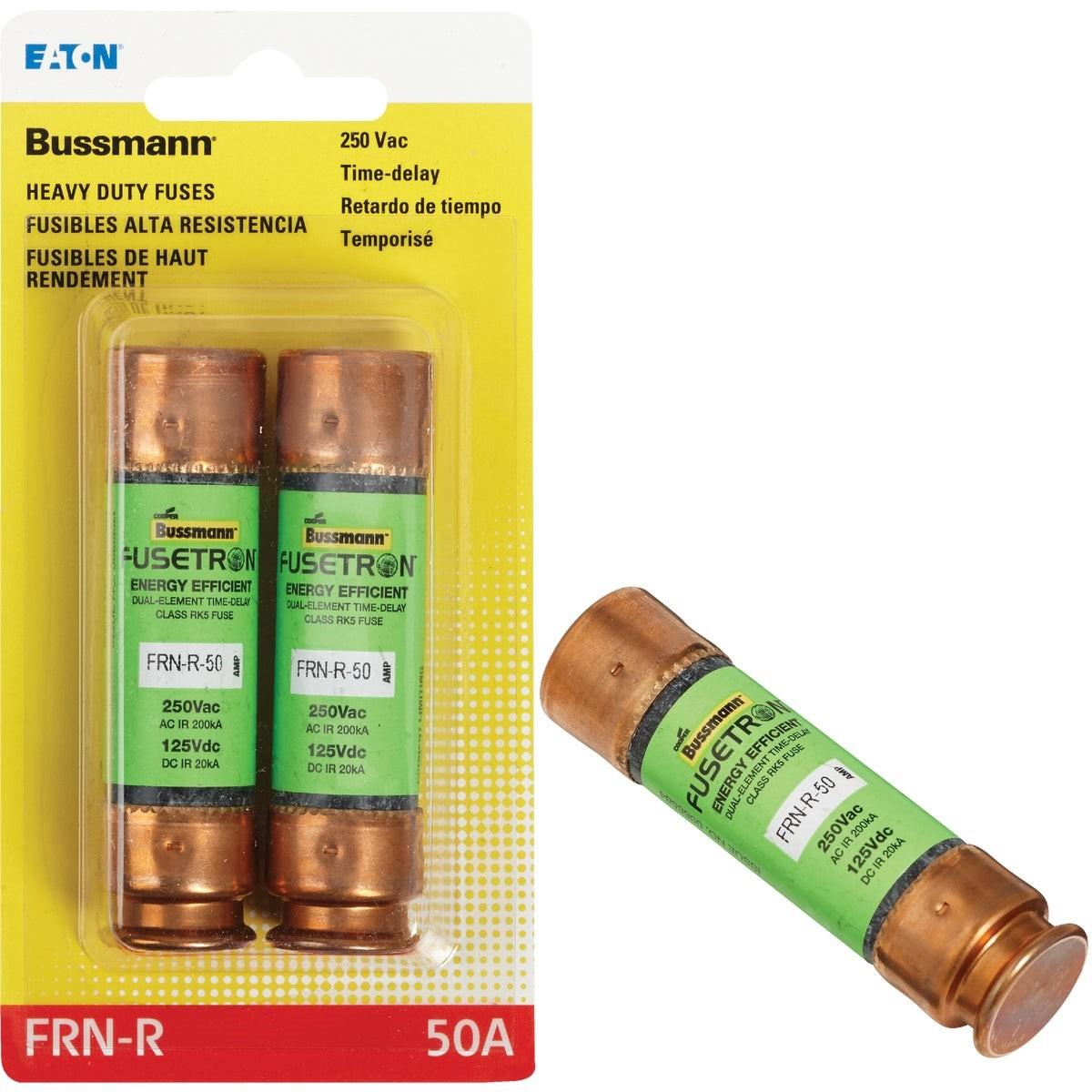

Eaton BP/FRN-R-50 50A Time Delay Cartridge Fuse 2-pack

Product Description

The EATON BP/FRN-R-50 is a dual-element, time delay cartridge fuse rated at 50 amps and 250 volts, sold as a 2-pack. It belongs to the Fusetron FRN-R series and carries a UL-listed Class R rating with a 200,000 amp interrupting rating (AIR). The dual-element design allows the initial inrush current of a motor startup to pass without opening, while still providing reliable protection when a sustained, damaging overload is present. Ferrule-end construction is standard for this current range. Licensed electricians and industrial maintenance technicians are the primary installers.

This fuse is designed for motor branch-circuit protection in residential, commercial, and light industrial applications. It is well suited for systems where motor overload or single-phasing events pose a risk of winding burnout. The time delay characteristic makes it appropriate for across-the-line motor starters where startup inrush would otherwise nuisance-trip a standard fast-acting fuse. It fits standard Class R fuse holders and rejection-style fusible disconnects rated for ferrule-end fuses in the 50A range.

Key Features

• Dual-element, time delay design passes motor startup inrush while opening on sustained overloads
• UL-listed Class R with 200,000 AIR for high fault-current environments
• Rated 50 amps at 250 volts with ferrule-end termination
• Protects motors from burnout caused by overloads and single-phasing conditions
• Sold as a 2-pack for convenience during service calls or panel work

Compatibility

Designed for use in Class R rejection-style fuse holders and fusible disconnects accepting ferrule-end cartridge fuses rated up to 250 volts. Compatible with standard motor branch-circuit protection applications in the 1/10A to 60A ferrule-end range of the FRN-R series.

Installation Notes

Installation must be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit at the upstream disconnect or breaker before removing or installing fuses. Verify the fuse holder is rated for Class R rejection-style cartridge fuses before installation. Never install a fuse rated above the conductor or equipment ampacity.

Technical Specifications

• Amperage Rating: 50 amps
• Voltage Rating: 250 volts
• Fuse Class: Class R
• Amp Interrupting Rating (AIR): 200,000 amps
• Fuse Type: Dual-element, time delay
• Terminal Style: Ferrule end
• Package Quantity: 2-pack
• Weight: 0.255 pounds
• Certifications: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/FRN-R-50
