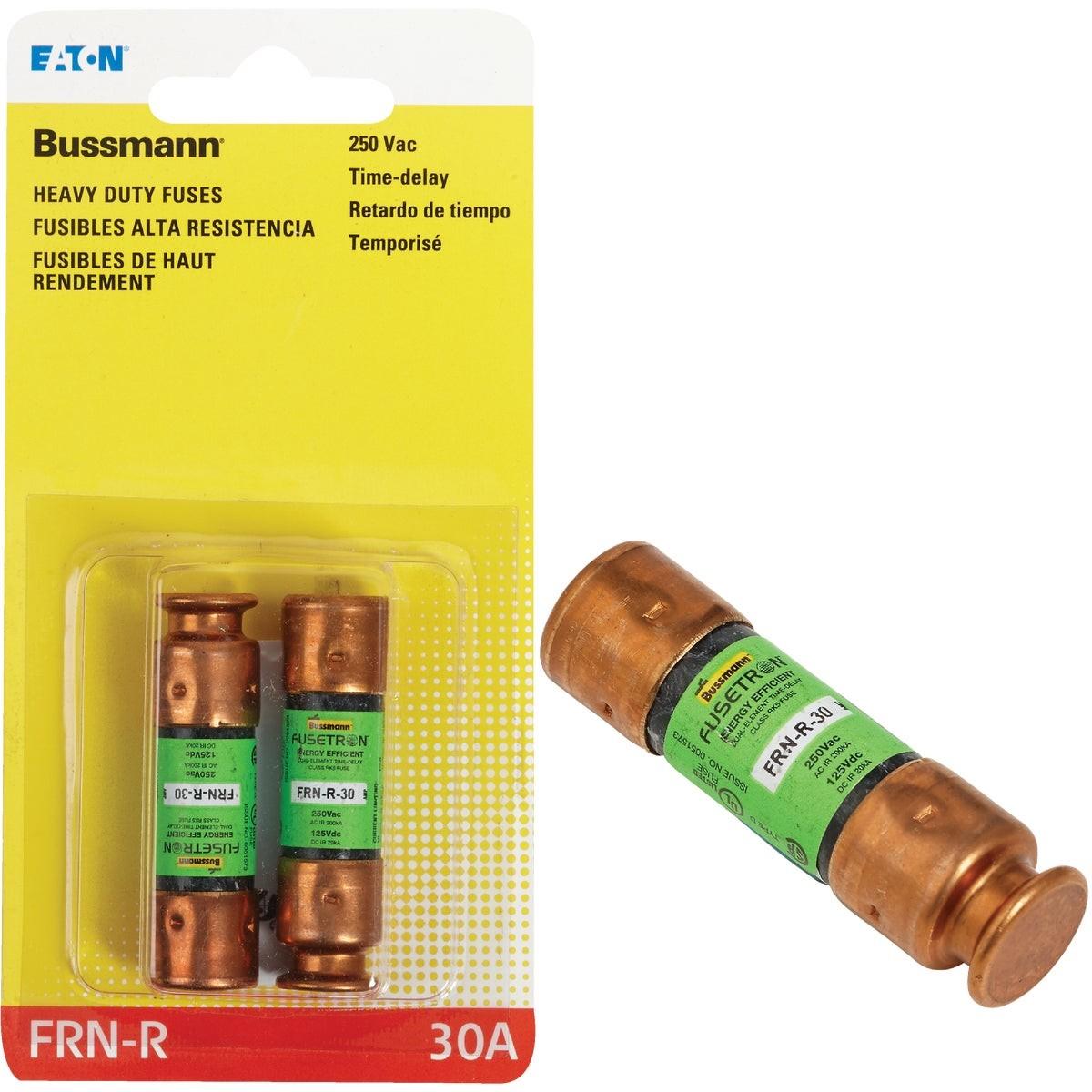

Eaton BP/FRN-R-30 Time Delay Cartridge Fuse 30A 2-pack

Product Description

The EATON BP/FRN-R-30 is a dual-element, time delay cartridge fuse rated at 30 amps and 250 volts, sold as a 2-pack. Carrying the Fusetron FRN-R designation, it belongs to UL-listed Class R with a 200,000 amp interrupting rating (AIR). The dual-element design serves two functions: it tolerates the inrush current that occurs during motor startup, and it opens the circuit before burnout when a sustained, hazardous overload is present. Ferrule-end terminations are standard on this 30A rating. Licensed electricians and motor control technicians are the primary installers of this fuse type.

This fuse is built for motor branch-circuit and feeder protection in residential, commercial, and light industrial applications. It is well suited for protecting single-phase and three-phase motor loads from overloads and single-phasing conditions. The time delay characteristic makes it appropriate wherever high inrush startup current would otherwise cause nuisance opening with a standard fast-acting fuse. It fits Class R fuse holders and rejection-style fusible disconnects designed for the FRN-R series.

Key Features

• Dual-element construction tolerates motor inrush current while opening on sustained overloads
• 200,000 AIR UL-listed Class R rating for robust fault interruption
• 30A rating includes ferrule-end terminations for Class R rejection holders
• 250V voltage rating suitable for single-phase and three-phase motor circuits
• Time delay protects motors from burnout caused by overloads or single-phasing
• Sold as a 2-pack for convenient replacement stocking

Compatibility

Designed as an OEM-style replacement for Class R rejection-style fusible disconnects and fuse holders rated for FRN-R series cartridge fuses at 250V, 30A.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the disconnect or panel before removing or inserting fuses. Verify that the fuse holder is a Class R rejection-style block rated for 250V and at least 30A before installation. Do not install a fuse in a holder that shows signs of heat damage, corrosion, or improper contact.

Technical Specifications

• Amperage: 30A
• Voltage: 250 volts
• Fuse Class: Class R
• Interrupting Rating: 200,000 AIR
• Fuse Type: Dual-element, time delay
• Termination Style: Ferrule end
• Quantity per Pack: 2
• Weight: 0.123 pounds
• Certifications: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/FRN-R-30
