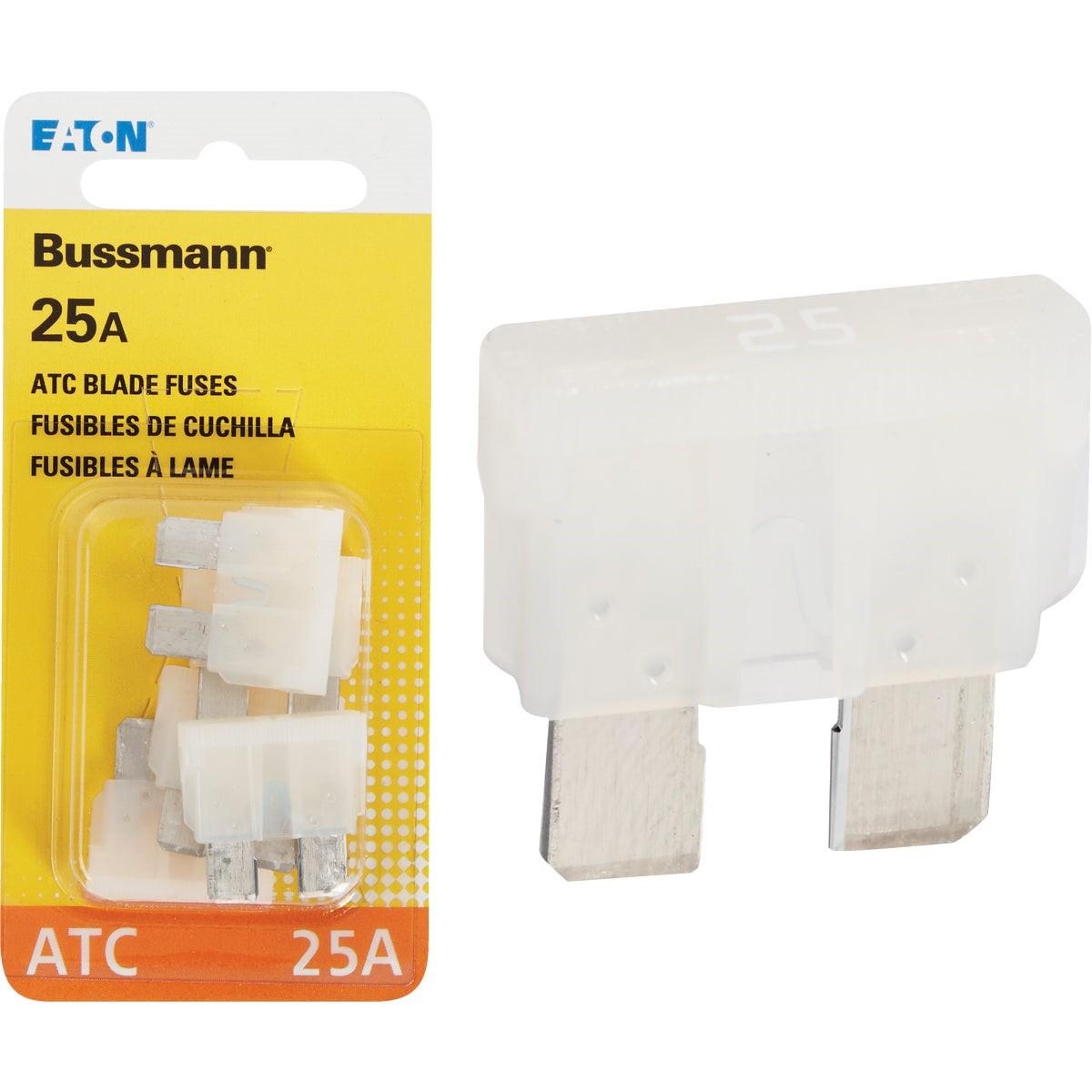

Eaton BP/ATC-25-RP Atc Blade Automotive Fuse 25A 4 Pack

Product Description

The EATON BP/ATC-25-RP is a 25-amp, 32-volt ATC blade-style automotive fuse sold in a 4-pack retail card. ATC blade fuses are the standard format used in passenger vehicle fuse boxes and inline fuse holders across most domestic and import vehicle platforms. This fuse provides overcurrent protection for automotive circuits, interrupting the circuit when current exceeds the rated 25 amps. The compact blade design allows for tool-free installation and removal using a standard fuse puller. It is suitable for use in any application requiring an ATC-style fuse at the 25-amp rating.

This fuse is designed for use in most late-model domestic and import cars and light trucks that use ATC blade-style fuse systems. Common applications include fuse panels, fuse blocks, and inline fuse holders in 12-volt and 24-volt DC automotive electrical systems operating within the 32-volt maximum voltage rating. Automotive electricians, fleet technicians, and mobile electronics installers routinely stock this size for general circuit protection work.

Key Features

• 25-amp rated current for standard automotive circuit protection
• 32-volt maximum voltage rating suitable for 12V and 24V DC vehicle systems
• ATC blade form factor fits standard automotive fuse boxes and inline holders
• 4-pack retail card for convenient stocking and jobsite use
• Tool-free removal and installation with a standard fuse puller

Compatibility

Designed as a direct-fit ATC blade fuse replacement for most late-model domestic and import cars and light trucks equipped with standard ATC blade fuse panels or inline fuse holders rated at 32 volts or below.

Installation Notes

ATC blade fuses are installed and serviced by automotive electricians and qualified technicians. Always disconnect or isolate the affected circuit before replacing a fuse to prevent accidental arcing. Never replace a fuse with one of a higher amperage rating, as this can cause wiring damage or fire. Fuse replacement in vehicle electrical systems should follow applicable vehicle service documentation and electrical safety practices.

Technical Specifications

• Amperage Rating: 25 amps
• Voltage Rating: 32 volts
• Fuse Type: ATC Blade
• Quantity per Pack: 4
• Weight: 0.035 pounds
• UPC: 00051712174183

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/ATC-25-RP
