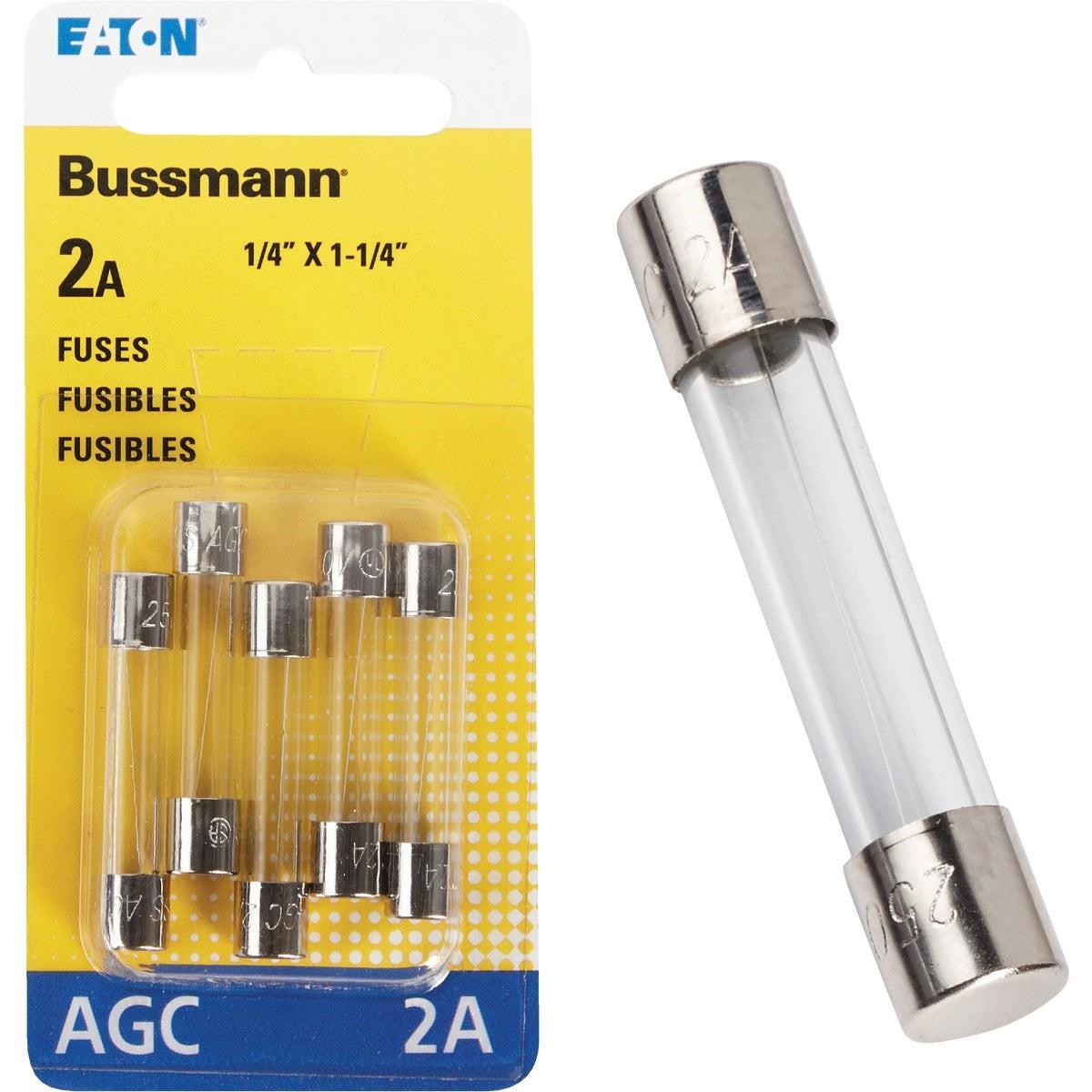

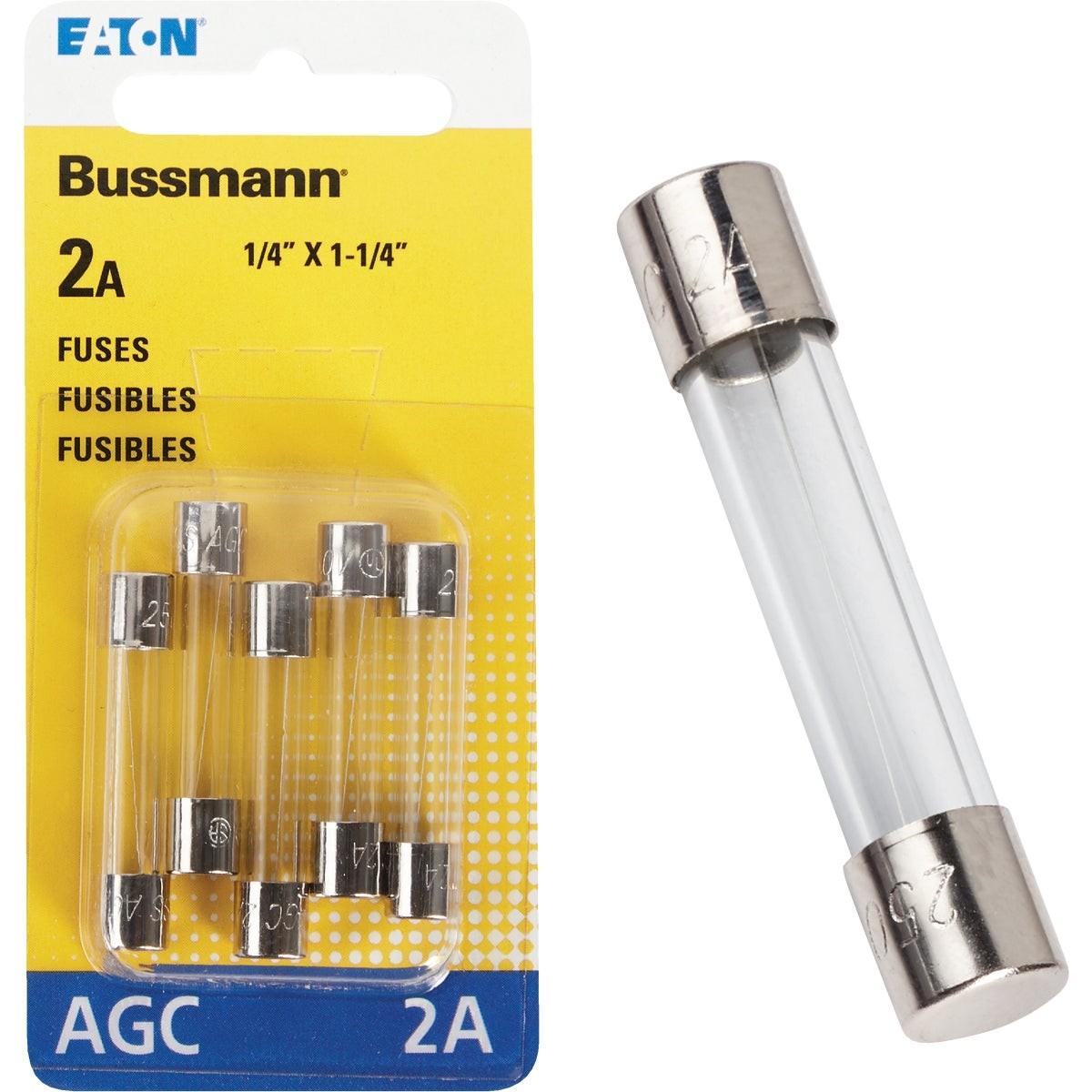

Eaton BP/AGC-2-RP Agc Glass Tube Fuse 2A 250V 5 Pack

Product Description

The EATON BP/AGC-2-RP is a glass tube fuse rated at 2 amps and 250 volts, packaged in a 5-count card. The AGC series is a fast-acting, glass-body fuse designed to protect low-voltage circuits in automotive, marine, and light industrial applications. At 0.25 inches in diameter and a standard 1.25-inch AGC form factor, it installs directly into fuse holders, panels, and inline fuse blocks that accept the AGC tube style. Electricians, marine technicians, and equipment service pros keep these on hand for routine circuit protection maintenance and quick field replacement.

This fuse is suited for residential, commercial, and mobile equipment applications where AGC-style overcurrent protection is required. Common uses include instrument panels, accessory circuits, small appliance protection, and low-current control wiring. The 5-pack card format makes it practical for service vans and shop stock where multiple replacements may be needed in a single service call.

Key Features

• 2-amp rating provides precise overcurrent protection for sensitive low-current circuits
• 250-volt rating covers standard low-voltage AC and DC control circuits
• Glass tube body allows visual inspection of the fuse element without a meter
• 0.25-inch diameter AGC form factor fits standard AGC fuse holders and inline blocks
• 5-pack card format supports efficient stock replenishment and field service kits

Compatibility

Designed as a direct replacement for AGC-style glass tube fuses in standard AGC fuse holders accepting a 0.25-inch diameter tube body.

Installation Notes

AGC glass tube fuses are replaced by qualified electricians or equipment technicians. Always de-energize the circuit and confirm zero voltage with a meter before removing or installing a fuse. Use a fuse puller where the holder design requires it to avoid contact with energized components. Replace only with a fuse of identical amperage and voltage rating — never substitute a higher-amp fuse to bypass a tripping condition.

Technical Specifications

• Amperage: 2 amps
• Voltage: 250 volts
• Fuse Type: AGC Glass Tube
• Diameter: 0.25 inches
• Quantity per Pack: 5
• Package Weight: 0.035 pounds
• UPC: 00051712175654

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/AGC-2-RP
