Eaton BP/AGC-10-RP Agc Glass Tube Fuse 10A 250V 5 Pack

Product Description

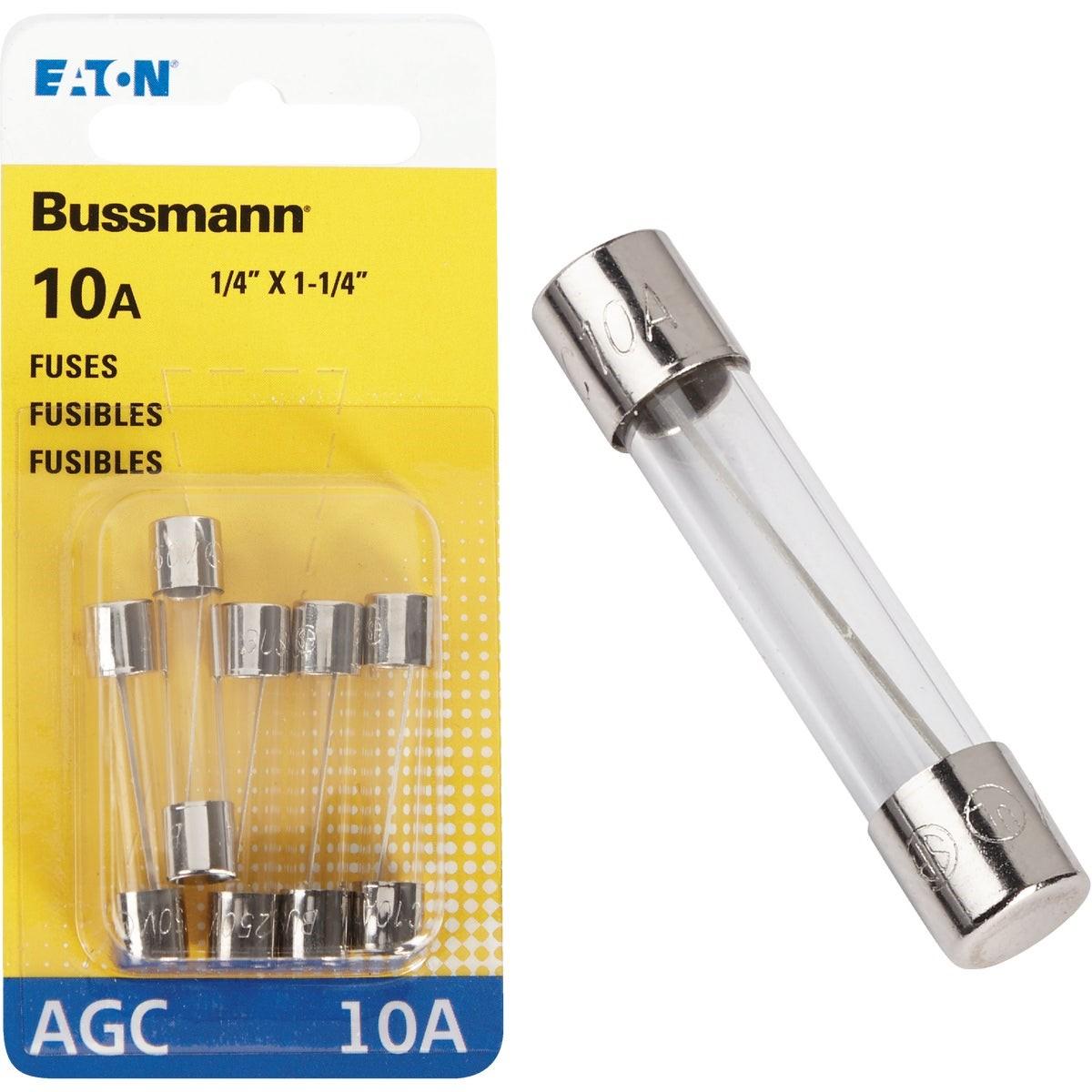

The EATON BP/AGC-10-RP is a glass tube automotive fuse rated at 10 amps and 250 volts, sold in a 5-pack card. The AGC form factor is a standard fast-acting glass tube fuse used across a wide range of control circuits, low-voltage systems, and automotive or marine electrical applications. At 0.25 inches in diameter and the standard AGC body length, these fuses provide overcurrent protection in fuse holders designed to accept the AGC footprint. Electricians, auto technicians, and marine service pros keep this fuse type on hand as a routine replacement item.

The BP/AGC-10-RP suits residential and light commercial control panels, HVAC low-voltage circuits, automotive accessory wiring, and marine electrical systems where a 10-amp fast-acting glass tube fuse is specified. The 250-volt rating makes it appropriate for both 12-volt DC vehicle circuits and low-voltage AC control wiring. Each pack contains 5 fuses, making it practical for stocking a service van or parts room.

Key Features

• 10-amp rating with 250-volt maximum for broad circuit compatibility
• AGC glass tube body allows visual inspection of the fuse element without removal
• Standard 0.25-inch diameter fits AGC-style fuse holders and inline fuse blocks
• Fast-acting element responds quickly to overcurrent events to protect downstream components
• 5 fuses per card for convenient stocking and service use

Compatibility

Designed as a direct replacement for AGC-style glass tube fuse holders rated for 10 amps and 250 volts in automotive, marine, and low-voltage control circuit applications.

Installation Notes

Installation should be performed by a qualified electrician or technician. Always de-energize the circuit and confirm voltage is absent before replacing any fuse. Verify the replacement fuse amperage and voltage rating match the original specification exactly — installing an incorrectly rated fuse can damage equipment or create a fire hazard. Follow applicable NEC requirements for overcurrent protection when used in fixed electrical systems.

Technical Specifications

• Amperage Rating: 10 amps
• Voltage Rating: 250 volts
• Fuse Type: AGC Glass Tube
• Diameter: 0.25 inches
• Quantity per Pack: 5
• Weight: 0.035 pounds
• UPC: 00051712176682

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/AGC-10-RP
