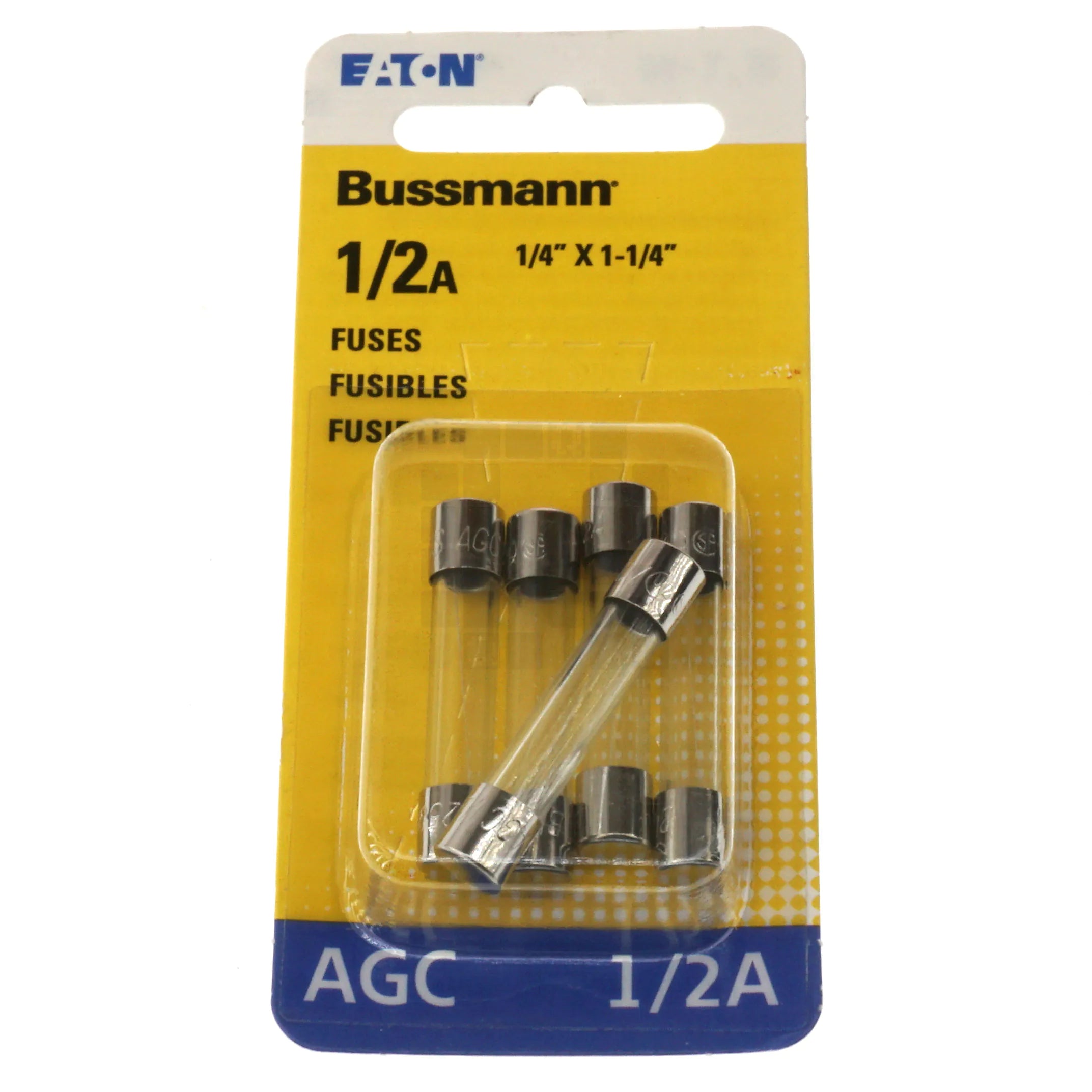

EATON BP/AGC-1/2-RP Bussmann Fast Acting Glass Fuse 5 Pack 1/2 Amp 250VAC REPLACEMENT MPN

Product Description

The Eaton BP/AGC-1/2-RP Bussmann Fast Acting Glass Fuse is designed for quick electrical protection. This product comes in a five-pack for convenience and reliability in various applications. With a maximum amperage of one-half amp and a voltage rating of two hundred fifty volts AC, it provides essential protection for electrical circuits.

• Fast Acting Design
• Five Fuses per Pack
• Rated for 1/2 Amp and 250VAC

Product Highlights

This fuse offers fast acting protection to ensure circuit safety in electrical systems.

Product Information

Standard Information

• Brand: Eaton Bussmann
• Type: Electrical Fuse

Technical Specifications

• Maximum Amperage: 1/2 A
• Voltage Rating: 250VAC
• Material: Glass Tube, Brass End Caps
• Interrupt Rating: 35 Amps @ 250V, 10,000 Amps @ 125V
• Typical DC Cold Resistance: 0.615 Ohms
• Frequency: 50Hz, 60Hz
• Overall Length: 1.250 inches
• Outside Diameter: 0.250 inches
