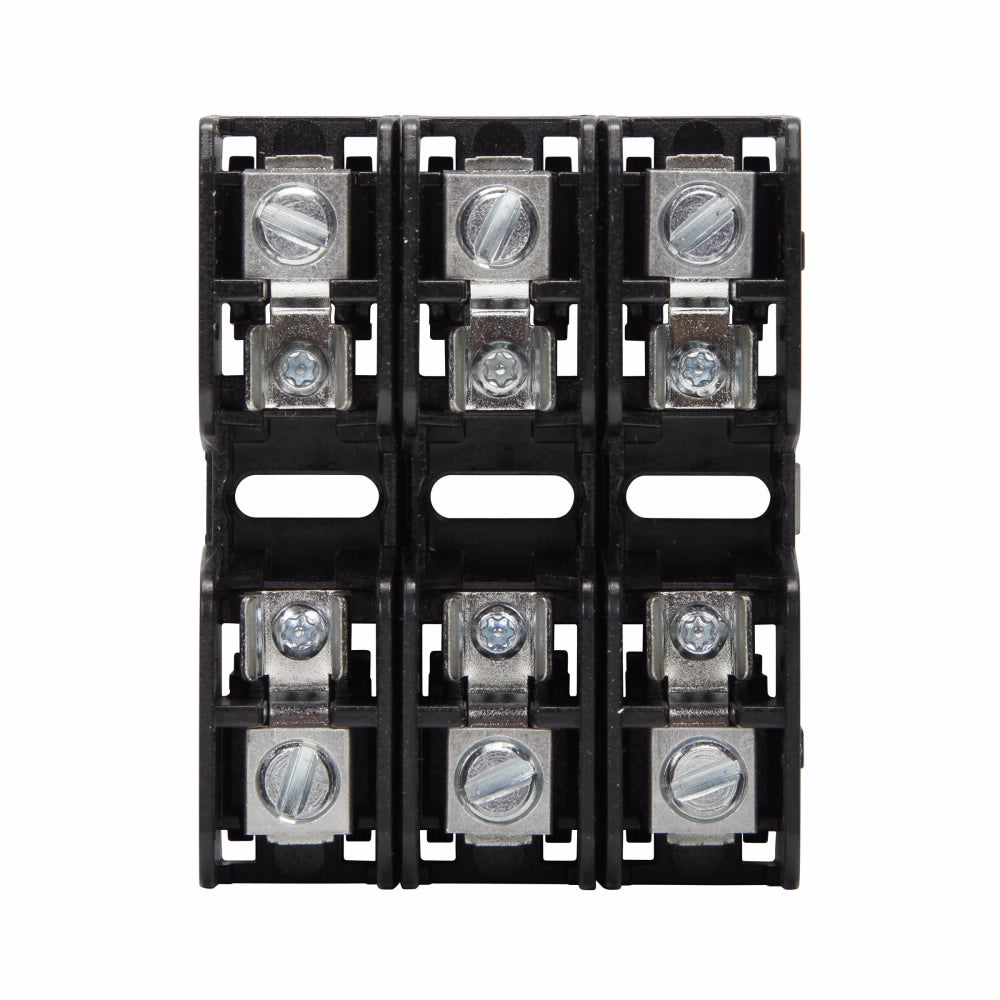

Eaton BMM603-3C BUS Midget Fuse Block with Wire Connector-3

Product Description

Eaton BMM603-3C is a modular BUS midget fuse block designed for electrical applications. This unit operates at a voltage rating of six hundred volts and a thirty-amp current rating.

• Modular design for flexible assembly
• DIN rail and panel mounting options
• Supports wire sizes from fourteen to two AWG

Product Highlights

The Eaton BMM603-3C fuse block is suitable for various electrical assemblies, ensuring efficient power distribution and safety.

Product Information

Standard Information

• Manufacturer: Eaton
• Master SKU: 0dd83a13-a666-4960-9ed0-d7ce779d0481

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 V
• Dimensions: 3 in L x 2.4 in W x 1.3 in H
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Temperature Rating: -40 to 120 deg C
• Number of Poles: 3
• Mounting Type: DIN Rail/Panel
• Connection Type: Box Lug/Wired
• Suitable For Use With: BAF Series, KTK Series, KLM Series, FNM Series, FNQ Series
• Standards/Approvals: CE Certified, RoHS Compliant, UL94 V-0 Flammability Rating
