Product Description

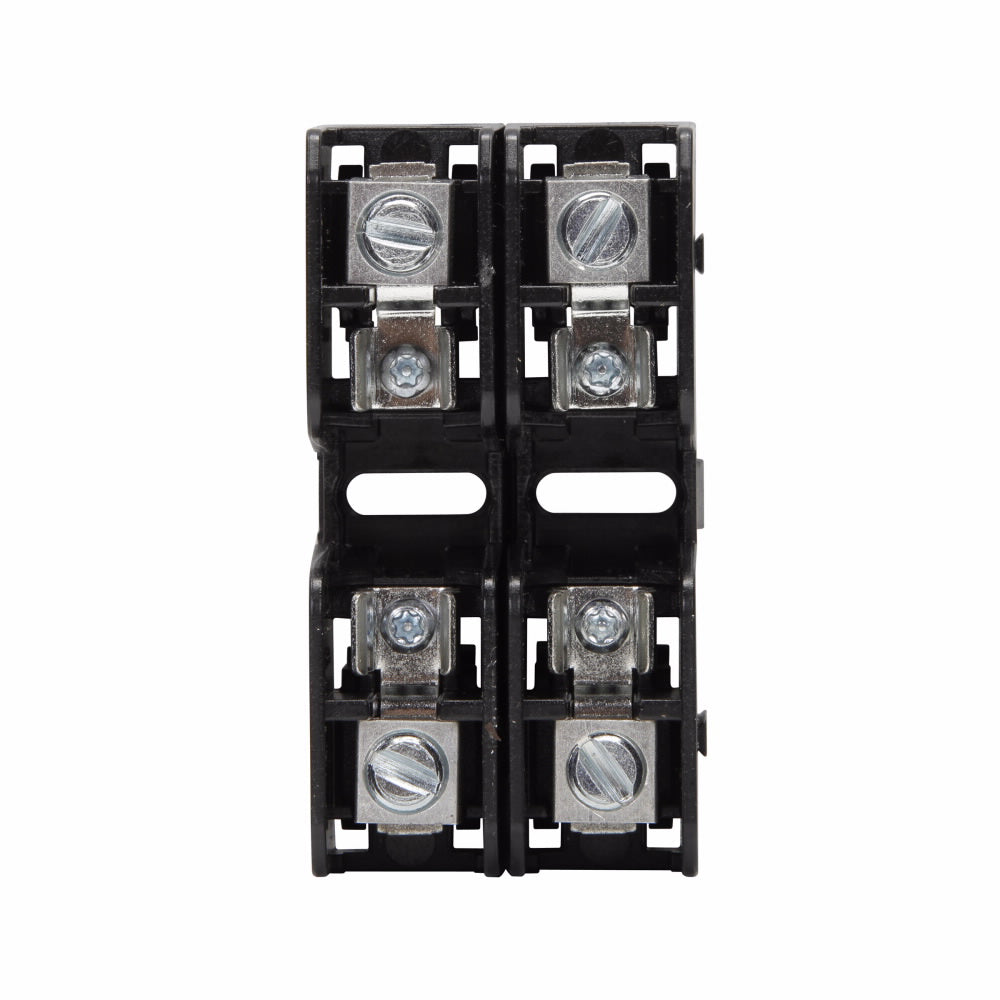

The Eaton BMM603-2C is a modular fuse block designed for electrical systems. It operates at 600 volts and supports a maximum of 30 amperes. This fuse block is compatible with various fast-acting fuses, making it suitable for diverse applications.
- Two-pole configuration for easy connectivity.
- Versatile mounting options for DIN rail or panel use.
- Thermoplastic construction for durability.
Product Highlights
The BMM603-2C enhances safety and efficiency in electrical panels, providing reliable performance across different environments.
Product Information
Standard Information
-
Manufacturer: Eaton
-
UPC: 05171248649
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 600 V
-
Number of Poles: 2
-
Fuse Length: 1-1/2 in
-
Fuse Diameter: 13/32 in
-
Temperature Rating: -40 to 120 deg C
-
Mounting Type: DIN Rail/Panel
-
Connection Type: Box Lug/Wired
-
Material: Thermoplastic
-
Standards/Approvals: RoHS Compliant
-
Suitable For Use With: BAF Series 250 VAC Fast Acting, KTK Series 600 VAC Fast Acting, KLM Series 600 VAC/VDC Fast Acting, FNM Series 250 VAC Time Delay, FNQ Series 500 VAC Time Delay and Class aM/gG/gL IEC Industrial Fuses
