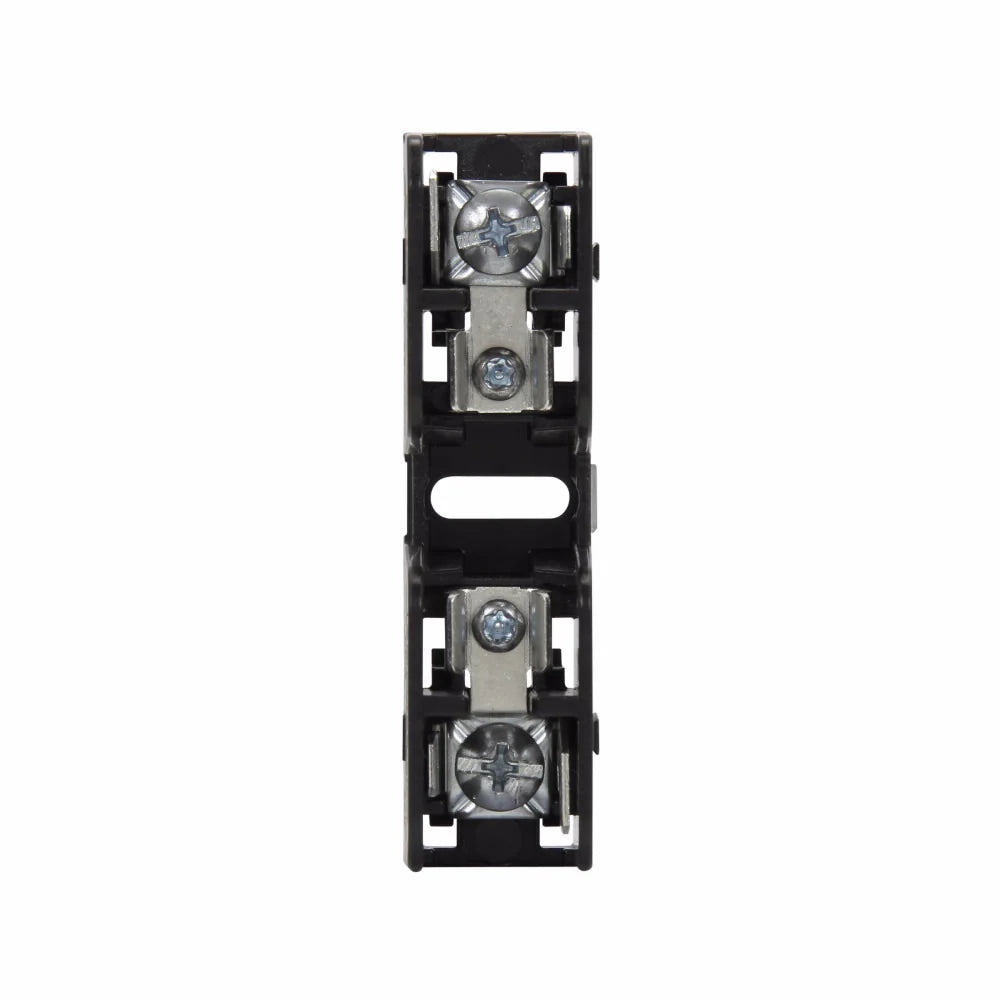

Eaton BMM603-1PQ Eaton Bussmann BMM603-1PQ 1-Pole Midget Fuse Block with Pressure Plate and Quick Connect

Product Description

The Eaton Bussmann BMM603-1PQ is a modular fuse block designed for efficient use in electrical assemblies, panels, and original equipment manufacturer (OEM) applications. It operates at a voltage of six hundred volts with a thirty ampere rating. This single-pole device utilizes a pressure plate and quick connect for easy installation and maintenance.

• Modular design for tool-less assembly
• DIN rail and panel mount options
• Suitable for various fuse types and applications

Product Highlights

The Bussmann series fuse blocks provide versatility and reduce labor costs in panel designs.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Type: Modular
• Voltage Rating: 600 V
• Amperage Rating: 30 A
• Number of Poles: 1
• Temperature Rating: -40 to 120 deg C
• Dimensions: 3 in L x 0.8 in W x 1.3 in H
• Connection Type: 1/4 in Quick-Connect/Pressure Plate
• Fuse Length: 1-1/2 in
• Fuse Diameter: 13/32 in
• Material: Thermoplastic
• Suitable For Use With: BAF Series, KTK Series, KLM Series, FNM Series, FNQ Series industrial fuses
• Standards/Approvals: CE Certified, CSA 47235-6225-01, RoHS Compliant, UL File No.E14853 Guide IZLT, UL94 V-0 Flammability Rating
