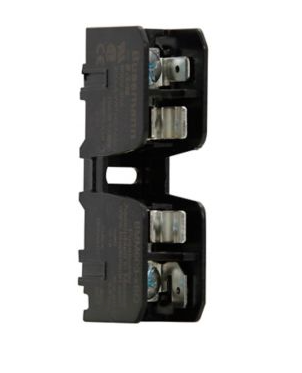

Eaton BM6031SQ 1-Pole Type-M Supplementary Fuse Block 600V (13/32 x 1-1/2)

Product Description

The Eaton BM6031SQ is a Bussmann 1-pole Type-M supplementary fuse block rated for 600 VAC/VDC. It accepts 13/32 inch x 1-1/2 inch midget (Type M) fuses and provides screw terminals with quick-connect capability for wiring. Constructed of thermoplastic with tin-plated bronze terminals, the block supports a wide current range and is intended for power distribution and fuse block installations.

• Rated 600 VAC/VDC; current range 100 mA - 20 A; single-pole Type M supplementary fuse block.
• Accepts 13/32 inch x 1-1/2 inch midget (Class M) fuses; compatible with common midget fuse types.
• Screw terminals with quick-connect; thermoplastic body with tin-plated bronze terminals; suitable for panel or chassis mounting.

Product Highlights

Single-pole Type M fuse block; 600 V AC/DC rating; accepts 13/32 x 1-1/2 midget fuses; screw/quick-connect terminals; thermoplastic construction.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BM6031SQ
• Country of Origin: Mexico
