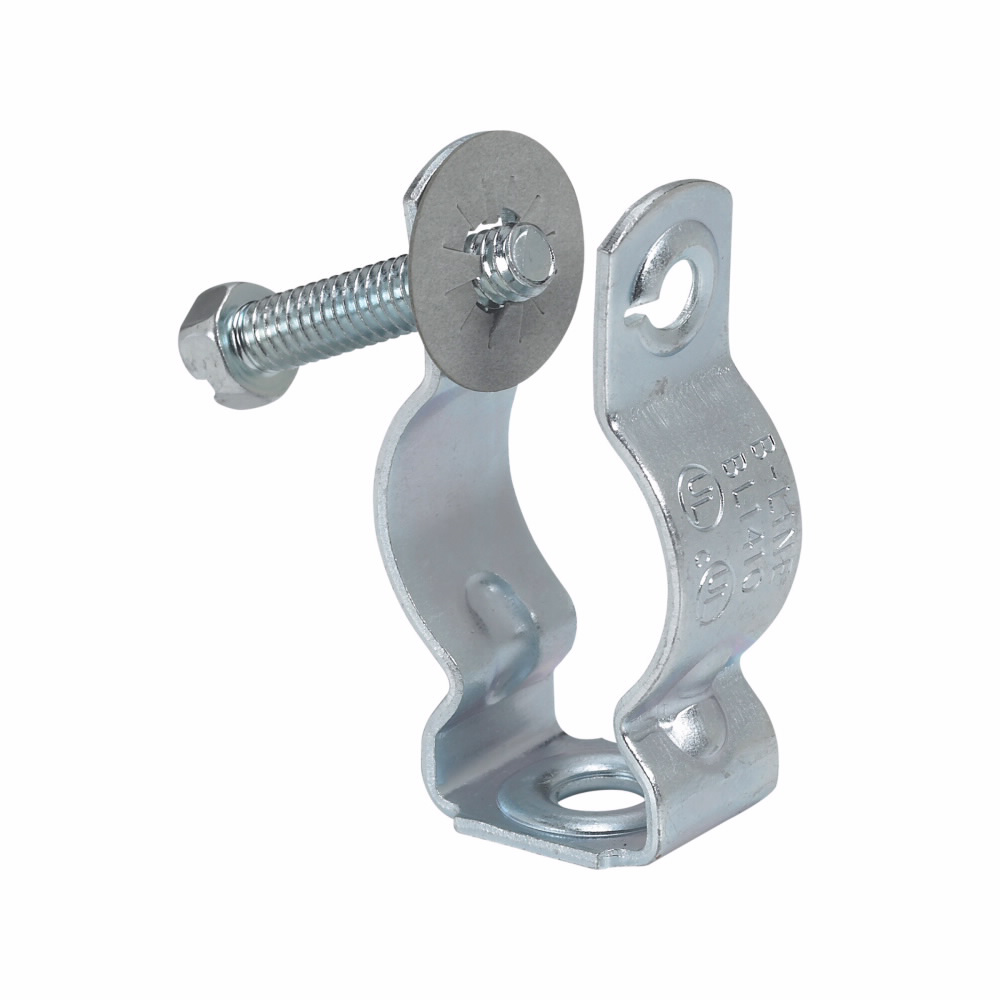

Eaton BL1420 Conduit Hanger 1 Inch Emt Rigid Zinc Plated

Product Description

The EATON BL1420 is a zinc-plated conduit hanger from the B-Line series, designed to support and secure 1-inch EMT and 1-inch rigid conduit in commercial and industrial electrical installations. This fastener handles a rated load capacity of 400 pounds, making it suitable for demanding overhead and structural mounting applications. The hanger accommodates mounting surfaces ranging from 0.5 inches to 4 inches, giving installers flexibility across varied structural members. Weighing just 0.08 pounds, the BL1420 is a lightweight, single-piece support that electricians reach for during conduit rough-in work.

The BL1420 is intended for use in conduit and cable support systems where 1-inch trade size conduit must be secured to beams, strut, or other structural substrates. It is well suited for commercial construction, industrial facilities, and retrofit installations requiring a reliable, corrosion-resistant conduit hanger. The zinc plating provides baseline protection against oxidation in standard interior environments.

Key Features

• Supports 1-inch EMT and 1-inch rigid conduit
• Rated load capacity of 400 pounds
• Mounting range: 0.5 inches minimum to 4 inches maximum
• Zinc-plated finish for corrosion resistance
• Lightweight at 0.08 pounds for easy handling during installation
• Part of the Eaton B-Line series conduit support system

Compatibility

Designed as an OEM-style conduit support fastener compatible with 1-inch EMT and 1-inch rigid conduit systems requiring a hanger with a mounting range of 0.5 to 4 inches.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits in the work area before beginning conduit support work. Ensure the mounting substrate can support the rated load before fastening. Do not exceed the 400-pound load rating or the 4-inch maximum mount size specified for this hanger.

Technical Specifications

• Conduit Size (EMT): 1 inch
• Conduit Size (Rigid): 1 inch
• Trade Size: 2
• Load Capacity: 400 pounds
• Minimum Mount Size: 0.5 inches
• Maximum Mount Size: 4 inches
• Weight: 0.08 pounds
• Finish: Zinc Plated
• UPC: 781011198022

Standard Information

• Brand: EATON
• Manufacturer Part Number: BL1420
