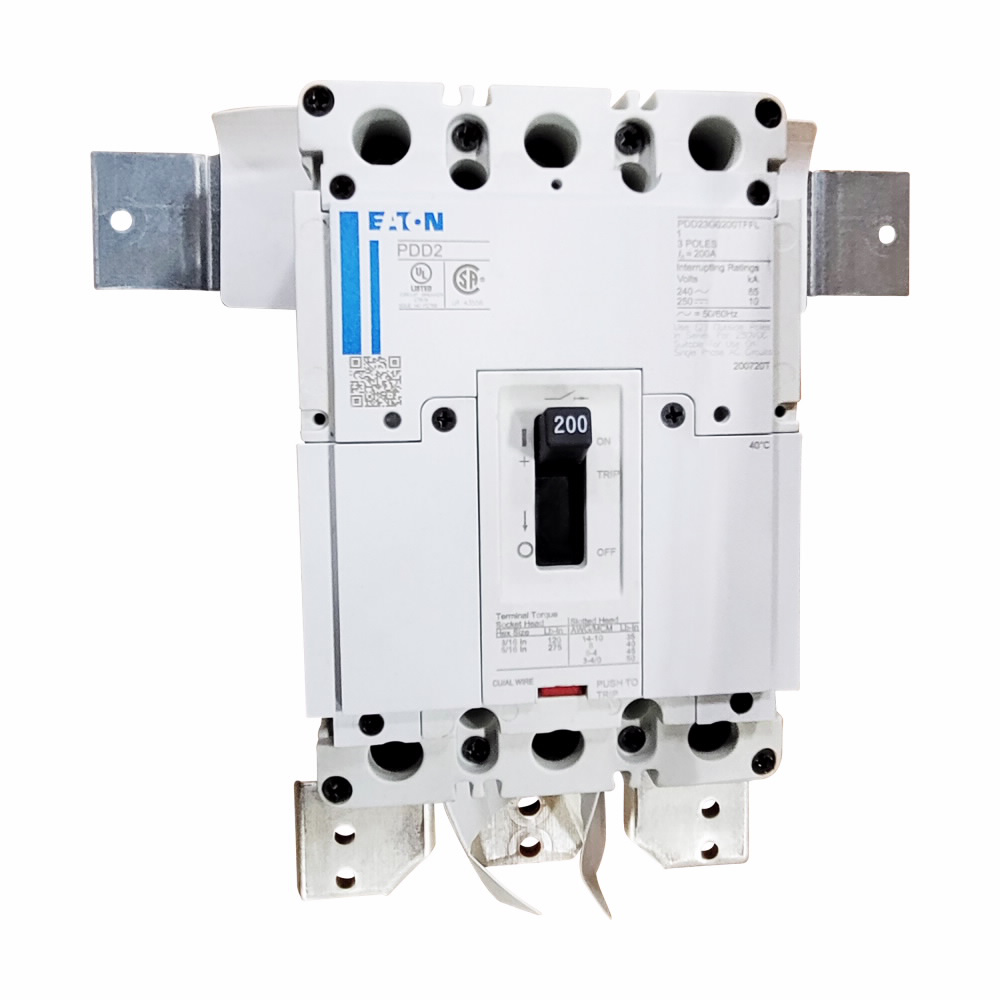

Eaton BKG2G200B Type BKG Convertible Main/Sub-Feed Circuit Breaker Kit with Vertical Bottom, 480 VAC, 200 Amp, 35 kAIC

Product Description

The Eaton BKG2G200B is a main circuit breaker kit suitable for both main and sub-feed applications. This breaker operates at four hundred eighty volts and has a current rating of two hundred amps. The kit includes essential components such as line terminals and load bus connectors. It is designed to support single-phase or three-phase configurations.

• Includes circuit breaker, line terminals, and load bus connectors
• Rated for 200 amps at 480 volts
• 35 kAIC rating for dependable performance

Product Highlights

This kit provides versatility in electrical systems, allowing for top or bottom mounting options. It is ideal for use in various applications, making it a valuable addition to any electrical setup.

Product Information

Standard Information

• Brand: Eaton
• Type: Convertible Main Circuit Breaker Kit

Technical Specifications

• MPN: BKG2G200B
• Voltage: 480 VAC
• Amperage: 200 Amp
• 35 kAIC: Yes
• Wiring: AI/Cu (1) #4-4/0
• Dimensions: Length 6 inches, Height 3 inches
• Weight: 4 lbs
• UPC: 78668936552
