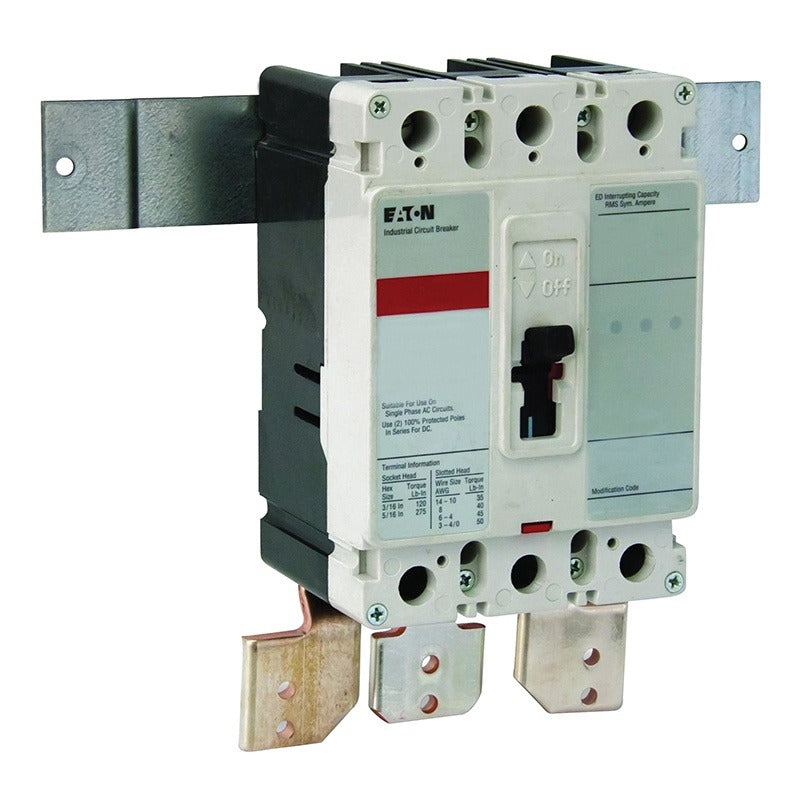

Eaton BKFD150 Main Circuit Breaker Kit 150 A (6 x 4 x 3 in)

Product Description

Eaton BKFD150 is a Pow-R-Stock FD frame main circuit breaker kit rated 150 A for single- or three-phase panelboard applications. The kit supports top or bottom feed mounting, accepts 4 to 4/0 AWG conductors, and includes terminals for service connections. It is intended for use with Pow-R-Line PRL1A/PRL2A panelboards and is sized for standard commercial and industrial distribution panels.

• FD frame main breaker kit rated 150 A with top/bottom feed mounting
• Rated for 480 VAC operation and a 25 kA interrupt rating; suitable for single- or three-phase systems
• Accepts 4 to 4/0 AWG conductors and includes terminals; dimensions 6 x 4 x 3 in

Product Highlights

FD frame main breaker kit; 150 A, 480 VAC; top/bottom mounting; 4–4/0 AWG conductor range; 25 kA interrupt rating

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BKFD150
• Country of Origin: Mexico
