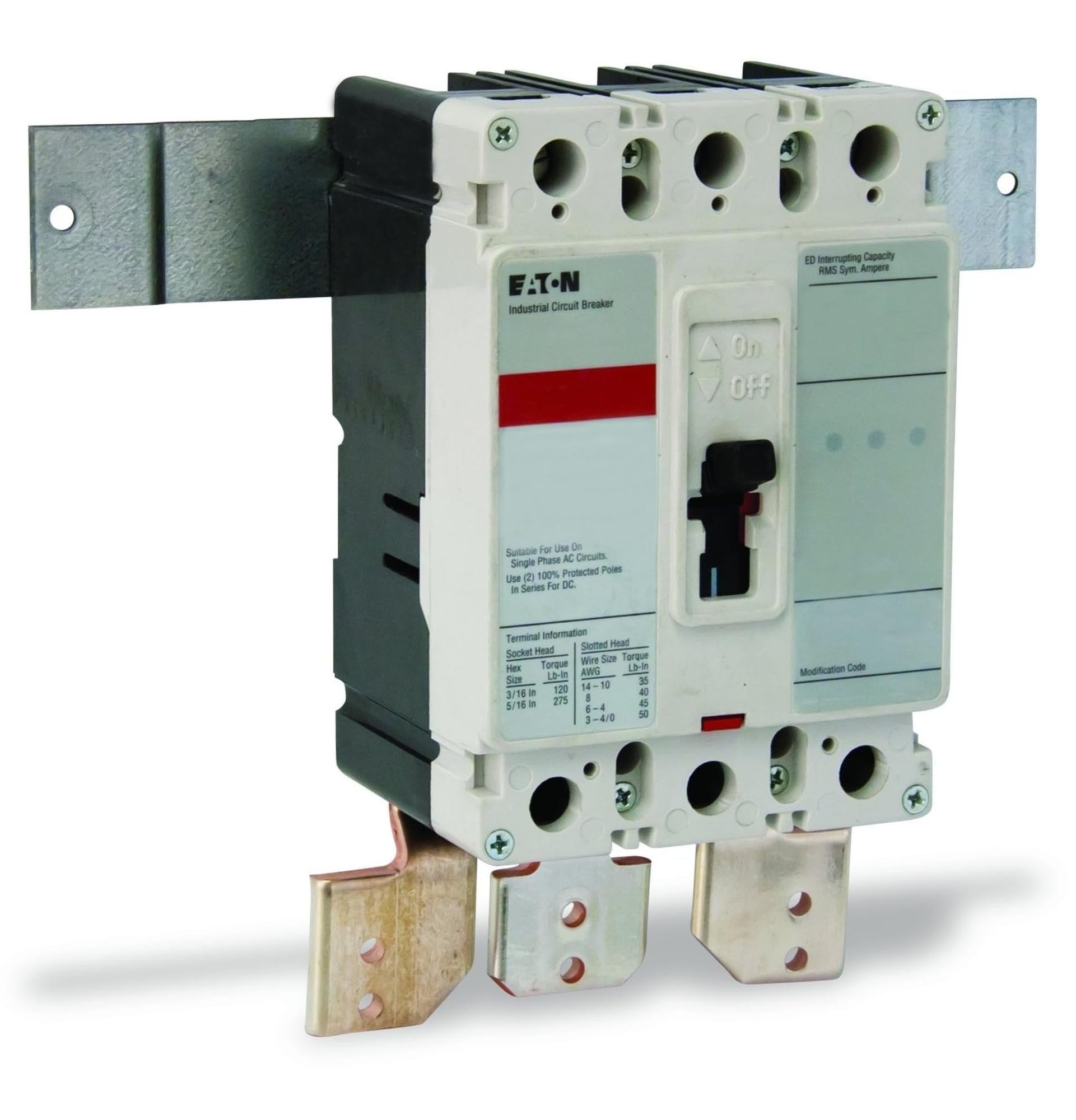

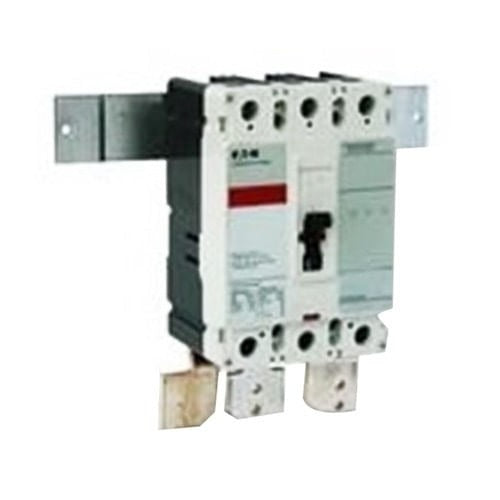

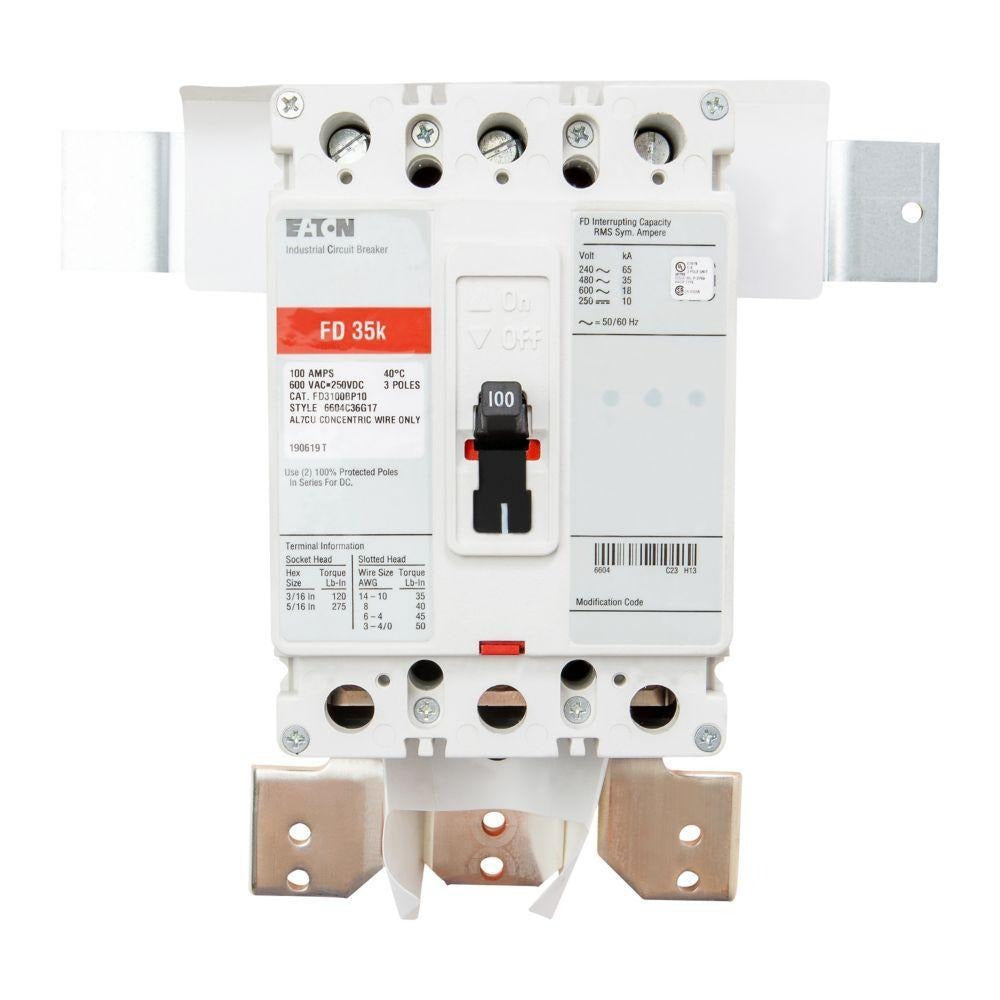

Eaton BKFD100 Main Breaker Kit 100 A (1/3-Phase)

Product Description

Eaton BKFD100 is a Pow-R-Stock main circuit breaker kit that provides a 100 A FD-frame main breaker for panelboard protection. The kit is rated for 480 VAC with a 25 kA interrupting rating, configured as a 3-pole unit that supports single- or three-phase systems and top or bottom mounting. The assembly supports #14 to 1/0 AWG copper or aluminum conductors and includes the circuit breaker and terminal, compatible with PRL2A panelboards.

• Rated 100 A, 480 VAC, FD frame, 3 poles with 25 kA interrupting rating
• Top or bottom mounting; supports single- or three-phase installations
• Wire range #14 to 1/0 AWG; includes circuit breaker and terminal; compatible with PRL2A

Product Highlights

Main breaker kit for panelboards; 100 A, 480 VAC, FD frame, 3-pole, top/bottom mount, #14–1/0 AWG

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BKFD100
• Country of Origin: Mexico
