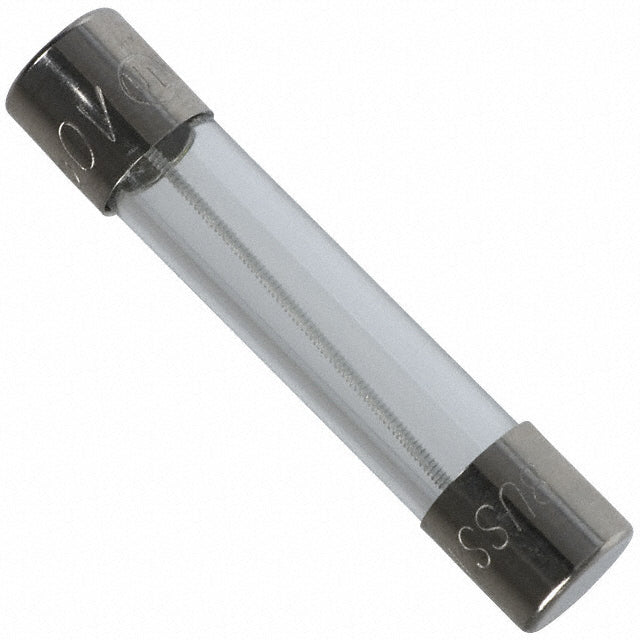

Eaton BK/MDL-3-R Fuse 250VAC Pack of 100

Product Description

The Eaton BK/MDL-3-R fuse offers advanced circuit protection in a compact, cylindrical glass body designed for professional electrical setups. It's an essential component for electrical distribution and circuit protection.

• Rated for 3A and 250V AC with a 100A interrupt rating at 250V AC.
• Time delay feature for handling temporary overloads without tripping.
• Compatible with multiple fuse block series including 1A1907, HB, HFA, and more.

Product Highlights

The glass fuse provides visual indication for easy inspection, enhancing safety and maintenance efficiency. With dimensions measuring approximately 31.7 mm in length and 6.4 mm in diameter, it fits easily into tight spaces. Certified by CE, CSA, and UL, ensuring reliable performance and standards compliance.

Product Information

Standard Information

• Speed: Time Delay
• Cap Diameter: 6 19/25 mm

Technical Specifications

• AC Voltage Rating: 250V AC
• DC Voltage Rating: Not Rated
• Body Material: Glass
• Fuse Size: 31.70 mm L x 6.40 mm dia
• Interrupt Rating: 100 A at 250V AC
• Body Style: Cylindrical
• Country of Origin: Taiwan, Province of China
