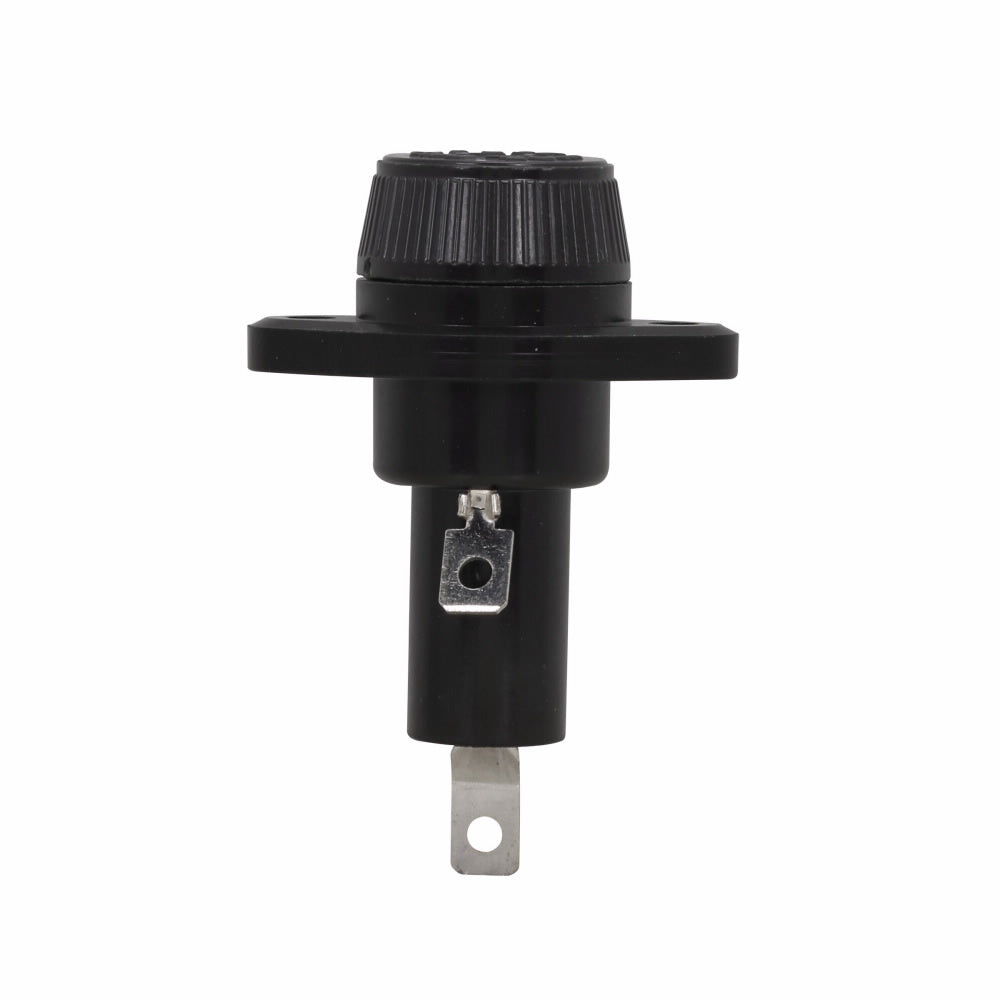

Eaton BK/HPF-EE Bussmann Buss Fuseholder S.D. 600 V 15 A

Product Description

Eaton BK/HPF-EE Bussmann Buss Fuseholder is a reliable component for electrical assemblies. This fuseholder supports a voltage rating of six hundred volts and an amperage rating of fifteen amps. The design includes quick-connect terminals for a 1/2 inch connection, facilitating easy installation. The compact dimensions of one point seventy-eight inches in diameter and two point sixty-nine inches in length make it suitable for panel mounting applications.

• Voltage rating of six hundred volts
• Amperage rating of fifteen amps
• Class CC with panel mount capabilities

Product Highlights

This Bussmann fuseholder is CE certified, CSA certified, and RoHS compliant, ensuring it meets industry standards for safety and performance.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171210863

Technical Specifications

• Application: Electrical Assemblies, Branch circuit protection, Panels and OEMs
• Class: CC
• Connection Type: 1/2 inch Quick-Connect Terminal
• Dimensions: 1.78 inches Diameter x 2.69 inches Length
• Manufacturer Part Number: BK/HPF-EE
• Mounting Type: Panel
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL Listed
• Type: Standard
• Voltage Rating: 600 V
• Amperage Rating: 15 A
