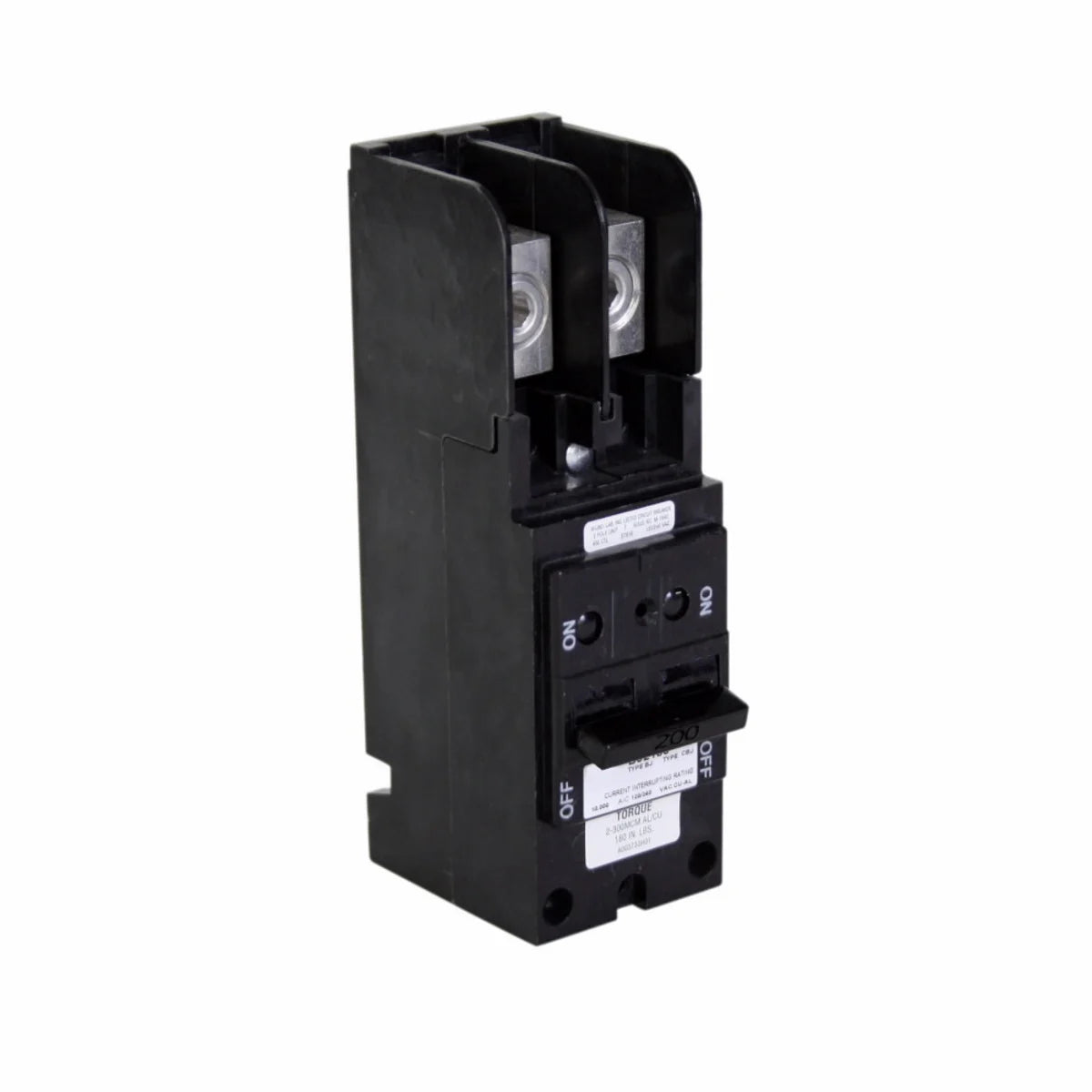

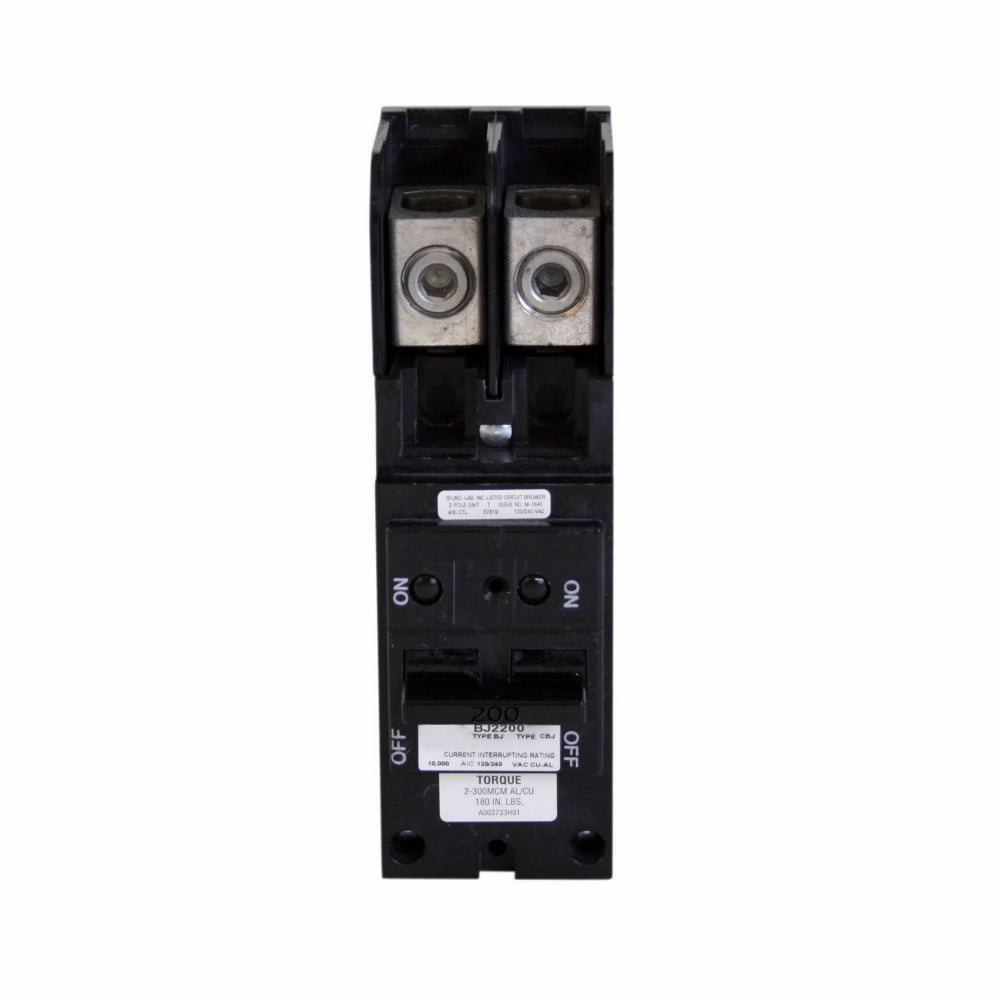

EATON BJ2200 Type BJ Plug-On Main Circuit Breaker, 240 VAC, 200 Amp, 10 kAIC, 2-Pole

Product Description

The EATON BJ2200 is a plug-on main circuit breaker designed for use in residential and commercial electrical systems. This breaker operates at 120/240 VAC and has a capacity of 200 Amps with a 10 kA interrupt rating. The two-pole construction allows for the connection of two separate circuits. It is compatible with wire sizes ranging from 2 AWG to 300 kcmil for both copper and aluminum.

• Common trip mechanism requiring four one-inch spaces.
• Designed for use in plug-on mounting applications.
• UL 489 and Federal Specification W-C375 approved for safety and reliability.

Product Highlights

This circuit breaker is ideal for applications such as service entrance equipment and group metering in multi-tenant buildings. The BJ2200 ensures protection against overload and short circuits, and its rainproof enclosure adds to its durability.

Product Information

Standard Information

• Brand: EATON
• Manufacturer: EATON

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Interrupt Rating: 10 kA
• Number of Poles: 2
• Trip Type: Common
• Dimensions: 6.5 inches (length) x 3.5 inches (width) x 2.5 inches (height)
• Temperature Rating: 60 to 75 deg C
• Wire Size: 2 AWG to 300 kcmil Copper/Aluminum
• Mounting Type: Plug-On
