EATON BJ2150 Type BJ Plug-On Main Circuit Breaker, 240 VAC, 150 Amp, 10 kAIC, 2-Pole

Product Description

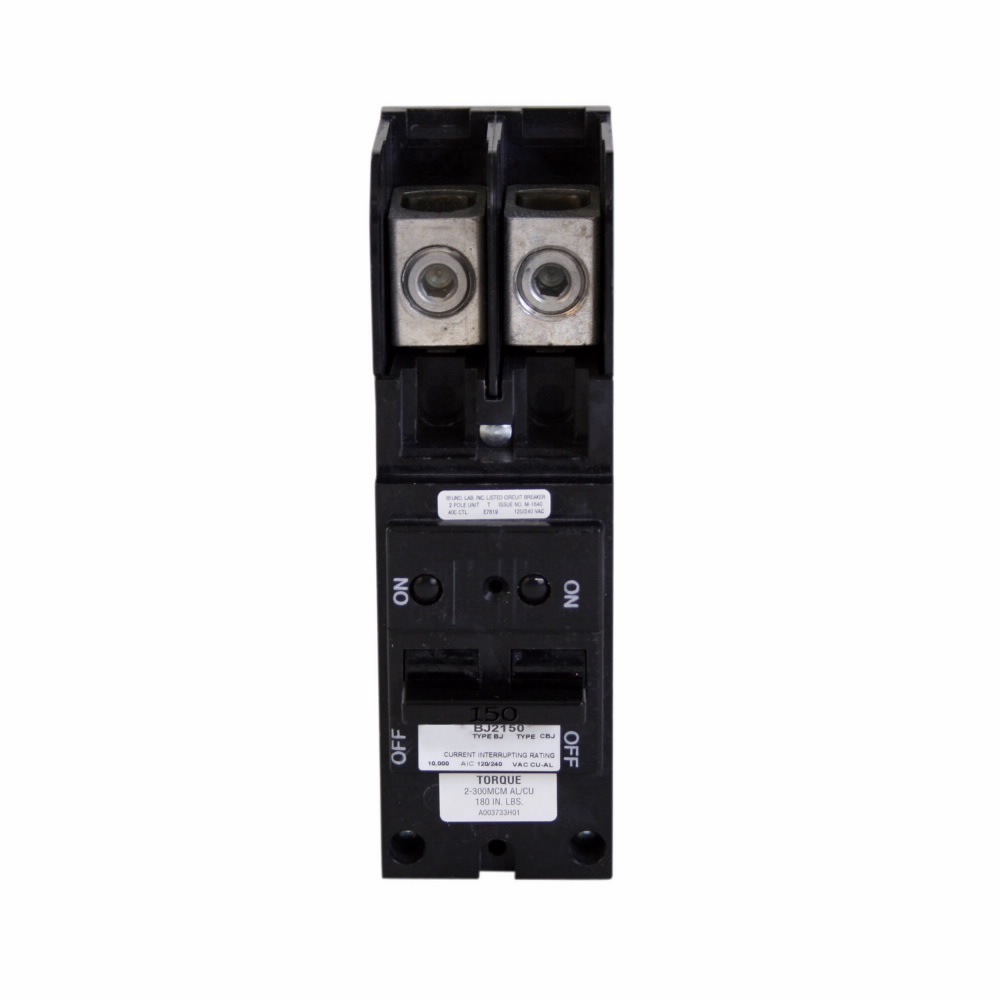

The EATON BJ2150 is a Type BJ Plug-On Main Circuit Breaker with a voltage rating of one hundred twenty to two hundred forty volts and an amperage rating of one hundred fifty amps. This circuit breaker is designed for use in electrical distribution panels, providing reliable protection for various applications.

• Voltage Rating: 120/240 VAC
• Amperage Rating: 150 A
• Interrupt Rating: 10 kAIC

Product Highlights

Ideal for residential and commercial settings, this breaker ensures effective circuit protection. It provides a plug-on connection type that allows for easy installation and removal.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BJ2150

Technical Specifications

• Type: Sub Feed
• Number of Poles: 2
• Connection Type: Plug-On
• Trip Type: Common/Thermal Magnetic
• Wire Size: 2 AWG to 300 kcmil Copper/Aluminum
• Temperature Rating: 75 deg F
• Dimensions: 6-1/2 in L x 3-1/2 in W x 2-1/2 in H
