Eaton BH4H7 Angle Bracket Fastener 1/4-20 Threaded Rod

Product Description

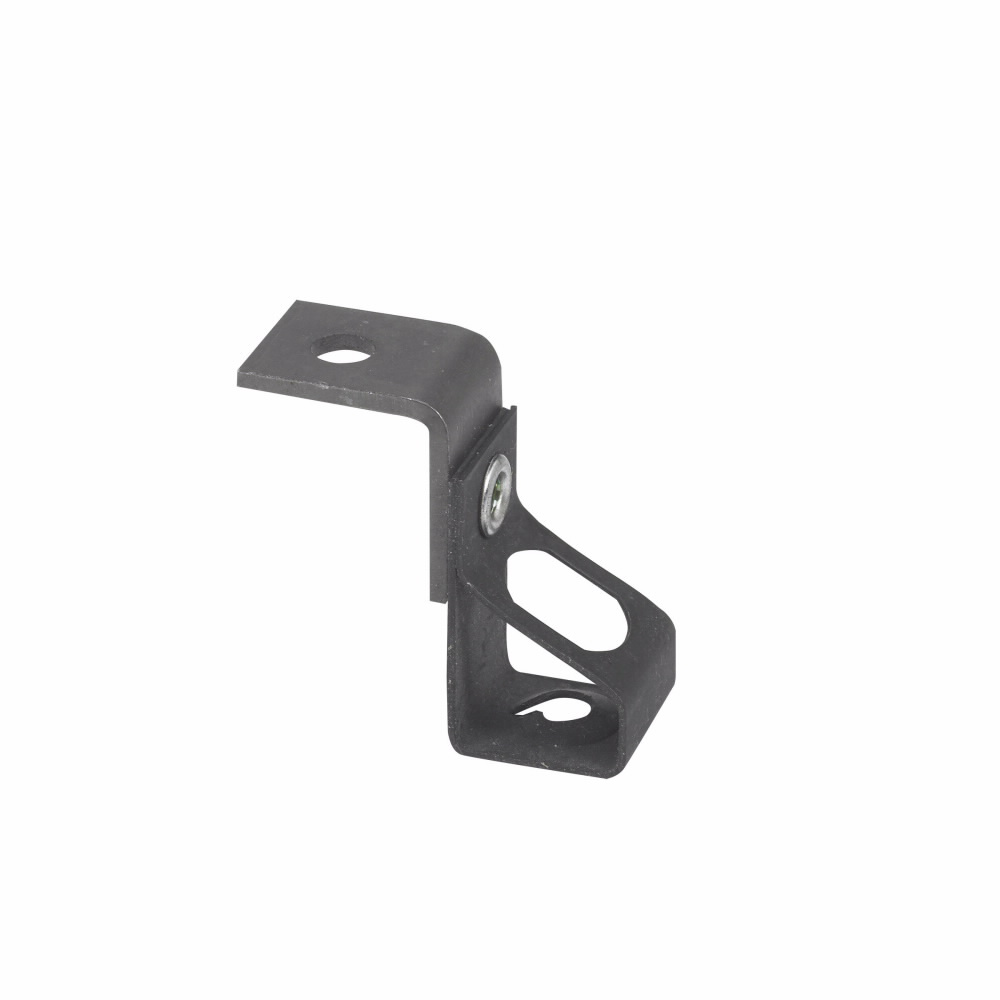

The EATON BH4H7 is an angle bracket fastener from the B-Line series of threaded rod and drop wire supports. It is designed to secure 0.25 inch-20 threaded rod to structural angle iron or similar framing members. The BH4H7 delivers a 160 lb load capacity in a compact form factor measuring 1 inch in height, 1 inch in length, and 1 inch in width. Weighing just 0.062 pounds, this fastener is a standard component in commercial and industrial pipe, conduit, and duct support systems. Licensed electricians, pipefitters, and mechanical contractors install this hardware as part of suspended support assemblies.

The BH4H7 is suited for use in both commercial and industrial construction where threaded rod hanger systems are required. It connects 0.25 inch-20 threaded rod to angle iron supports, making it a common component in suspended ceiling grid systems, conduit runs, HVAC ductwork support, and mechanical piping installations. Its small size allows installation in tight framing conditions where larger brackets would not fit.

Key Features

• Accepts 0.25 inch-20 threaded rod for secure mechanical connection
• 160 lb load capacity for reliable support in suspended assemblies
• Compact 1 inch x 1 inch x 1 inch profile fits tight framing spaces
• Lightweight at 0.062 pounds, minimizing added dead load
• Part of the EATON B-Line series threaded rod and drop wire support system

Compatibility

Designed as an OEM-style component within the EATON B-Line series threaded rod and drop wire support system, compatible with 0.25 inch-20 threaded rod installations in standard commercial and industrial support assemblies.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors as part of a suspended support assembly. De-energize any nearby electrical systems and relieve line pressure from adjacent piping before beginning work in the installation area. Verify that the supporting structure and all connected hardware are rated to handle the combined load before tightening fasteners. Follow applicable building codes and manufacturer guidelines for suspended support systems.

Technical Specifications

• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.062 pounds
• Rod Size: 0.25 inch-20
• Load Capacity: 160 lb
• UPC: 781011190101

Standard Information

• Brand: EATON
• Manufacturer Part Number: BH4H7
