Eaton BH4-F12 Purlin Hanger 1/4 in Threaded Rod 100 Lb

Product Description

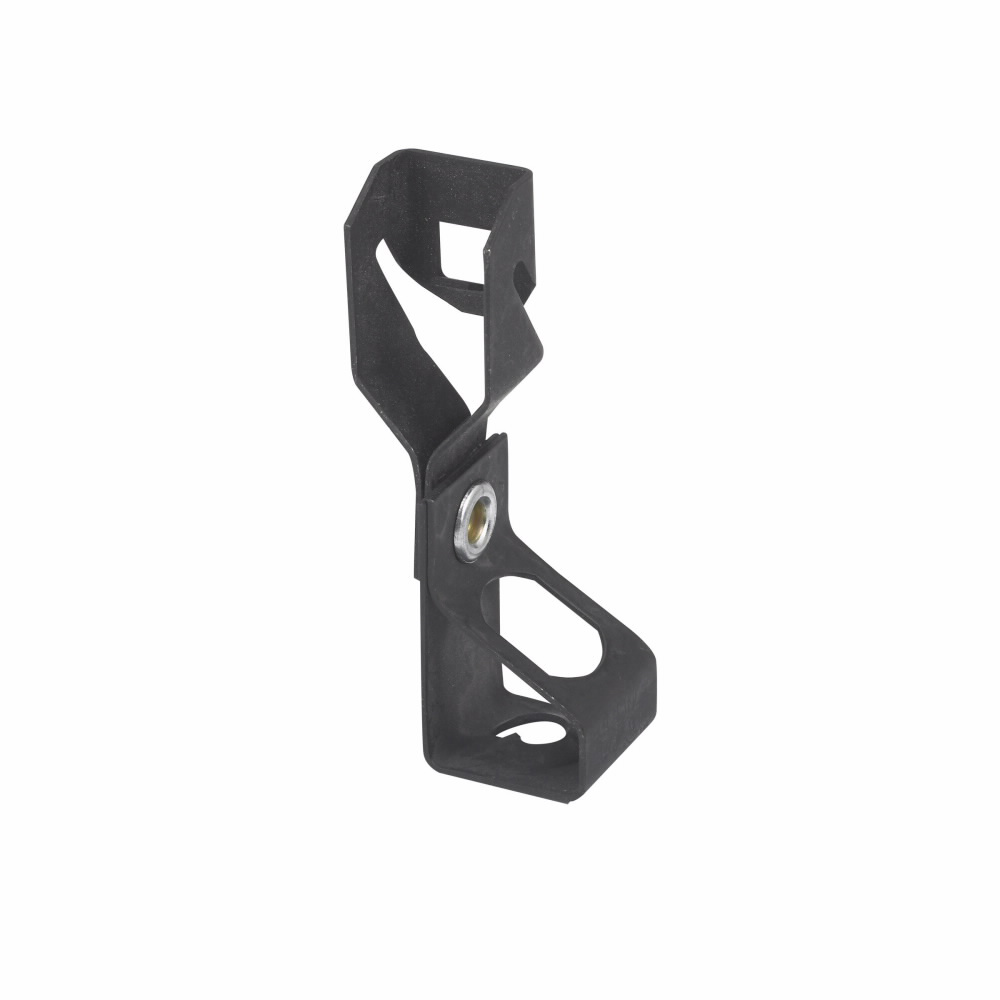

The EATON BH4-F12 is a Z-purlin hanger designed to support 0.25 inch threaded rod from steel purlin framing members. Part of the Eaton B-Line series of threaded rod and drop wire supports, this hanger provides a secure mechanical connection point for hanging pipe, conduit, duct, cable tray, and other building system components from structural purlins. It is compact, with a 1 inch height, 1 inch length, and 1 inch width, and carries a rated load capacity of 100 pounds. Licensed electricians, plumbers, pipefitters, and mechanical contractors install this type of fastener during rough-in work in commercial and industrial construction.

This hanger is suited for commercial and industrial applications where threaded rod drops must be anchored to Z-purlin or similar light-gauge structural steel framing. It is commonly used in metal building construction where structural steel purlins serve as the primary overhead framing. The BH4-F12 accepts 0.25 inch diameter threaded rod and is categorized as a universal beam fastener within the B-Line product family. Typical installations include pipe support runs, electrical raceway hangers, and mechanical system drops in metal frame structures.

Key Features

• Accepts 0.25 inch diameter threaded rod for drop hanger assemblies
• Rated for 100 pound load capacity
• Compact 1 x 1 x 1 inch form factor fits tight framing conditions
• Designed for Z-purlin attachment in metal building construction
• Part of the Eaton B-Line series universal beam fastener line
• Lightweight at 0.055 pounds for easy handling and overhead installation

Compatibility

Designed as an OEM-style support accessory compatible with 0.25 inch threaded rod systems used in Z-purlin and light-gauge structural steel framing applications.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors working overhead in metal-framed buildings. De-energize all nearby electrical systems before working in the installation area. Verify that the purlin flange thickness and steel grade are appropriate for the intended load before securing the hanger. Follow applicable building codes and manufacturer load ratings when designing threaded rod support runs.

Technical Specifications

• Rod Size: 0.25 inches
• Load Capacity: 100 pounds
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.055 pounds
• UPC: 781011190002

Standard Information

• Brand: EATON
• Manufacturer Part Number: BH4-F12
