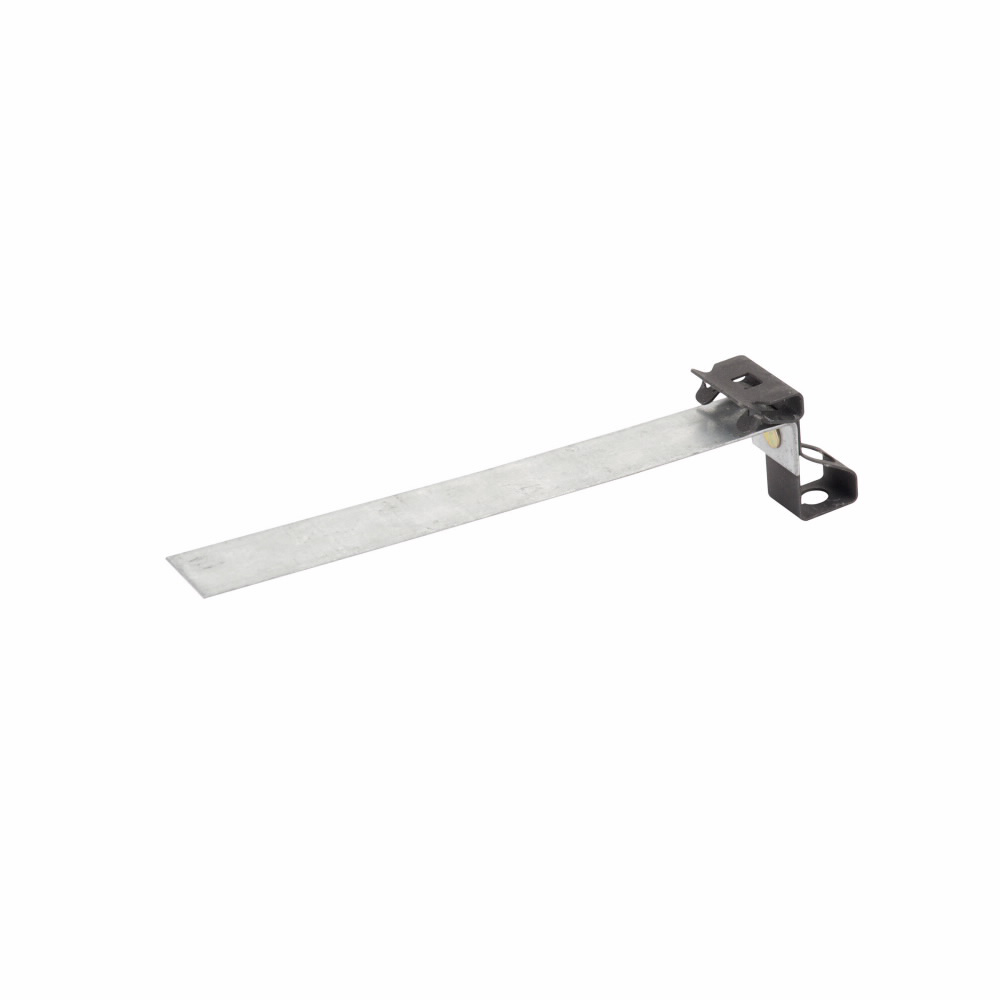

Eaton BH4-E-2-4 Rod to Beam Hanger 0.25 in 160 Lb

Product Description

The EATON BH4-E-2-4 is a rod to beam hanger from the B-Line series, designed to suspend all-threaded rod from beam flanges in commercial and industrial piping, conduit, and mechanical support systems. Rated for a 160-pound load capacity and compatible with 0.25-inch threaded rod, this hanger provides a secure, rigid connection point where overhead support from structural steel is required. The compact body measures 1 inch in height, 1 inch in length, and 1 inch in width, making it easy to install in tight spaces. Licensed electricians, pipefitters, and mechanical contractors typically install this hardware as part of larger trapeze or single-rod support assemblies.

This hanger is suited for use in both new construction and retrofit applications where threaded rod must be anchored to beam flanges. It accepts flange mounting sizes ranging from 0.13 inches to 0.25 inches, making it compatible with light structural steel commonly found in commercial buildings, industrial facilities, and mechanical rooms. It is commonly used in HVAC duct support, conduit runs, and plumbing pipe support systems where a clean, code-compliant overhead support method is needed.

Key Features

• Supports 0.25-inch threaded rod with a rated load capacity of 160 pounds
• Flange mount range of 0.13 inches to 0.25 inches suits light structural steel
• Compact 1 x 1 x 1 inch profile fits confined overhead spaces
• Lightweight at 0.062 pounds, reducing cumulative dead load on support structures
• Part of the EATON B-Line series, a widely recognized mechanical support system

Compatibility

Designed as an OEM-style replacement and standard component for threaded rod support assemblies requiring beam flange attachment with 0.25-inch rod and flange thicknesses between 0.13 inches and 0.25 inches.

Installation Notes

Installation is typically performed by licensed electricians, pipefitters, or mechanical contractors in accordance with applicable local codes and NFPA or IBC structural support requirements. De-energize and de-pressurize any systems in the work area before attaching or adjusting overhead support hardware. Verify that the beam flange thickness falls within the 0.13-inch to 0.25-inch mount range before tightening to ensure a secure grip. Do not exceed the rated 160-pound load capacity for this hanger.

Technical Specifications

• Rod Size: 0.25 inches
• Load Capacity: 160 pounds
• Minimum Mount Size: 0.13 inches
• Maximum Mount Size: 0.25 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.062 pounds
• UPC: 781011189808

Standard Information

• Brand: EATON
• Manufacturer Part Number: BH4-E-2-4
