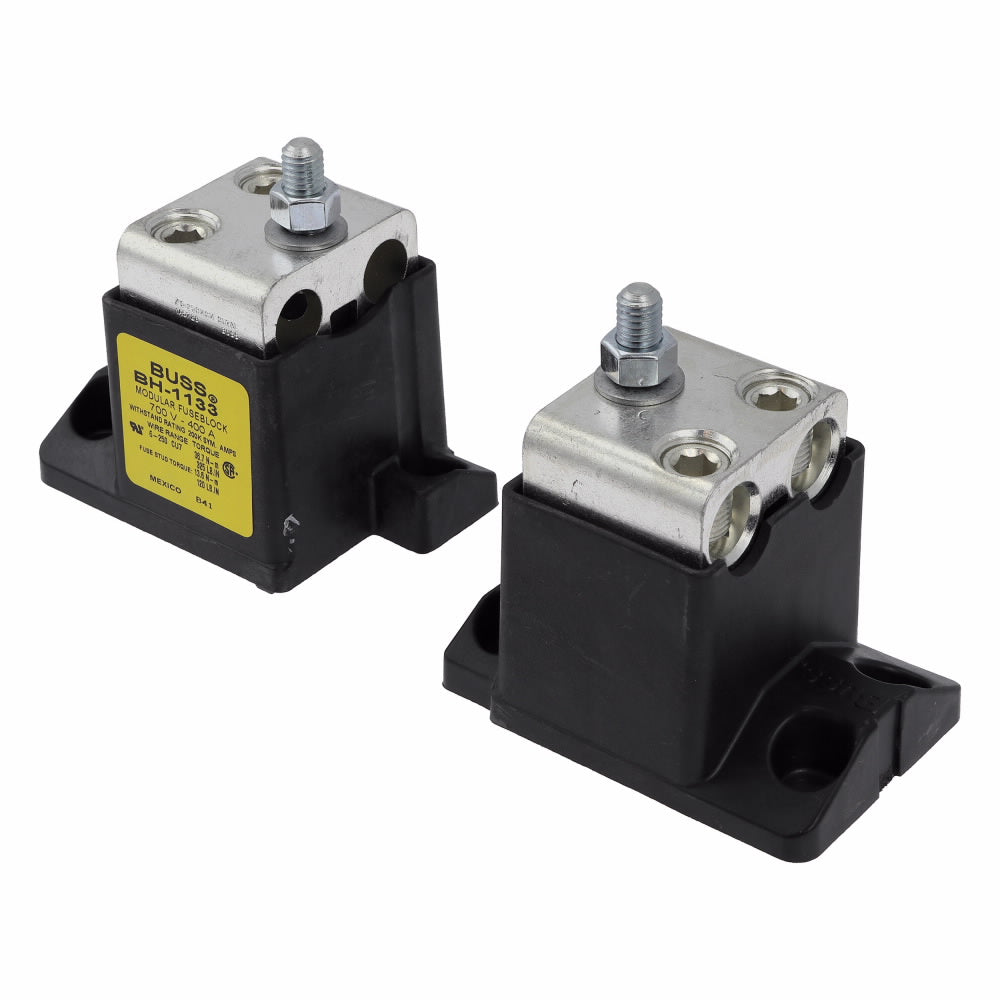

Eaton BH-1133 BUS MODULAR FUSEBLOCK (1)

Product Description

The Eaton BH-1133 is a modular square high-speed fuse block designed for reliable performance in electrical applications. This fuse block supports a voltage rating of two thousand five hundred volts and an amperage rating of four hundred amps. It features one pole with a stud connection and accommodates wire sizes from six AWG to two hundred fifty kcmil. This fuse block is suitable for semiconductor and high-speed fuses.

• Modular design for flexible installation
• Rated for up to 200 kA short circuit current
• Constructed with a thermoplastic base

Product Highlights

The BH-1133 modular fuse block is built for high-speed applications and can be mounted using studs. Its sturdy design is compatible with various electrical assemblies, panels, and solid state control circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: BH-1133

Technical Specifications

• Amperage Rating: 400 A
• Voltage Rating: 2500 V
• Connection Type: Stud
• Mounting Type: Stud/Nut
• Number of Poles: 1
• Material: Thermoplastic
• Dimensions: 6.7 in L x 4.7 in W x 3.1 in H
• Series: BH Series
• Standards/Approvals: CE Marking, CSA Certified, RoHS Compliant, UL Listed Guide EZLT2
• Application: Electrical Assemblies, Panels and EOEMs, Solid State Control Circuits, VFDs and UPS Systems Applications
• Suitable For Use With: Semiconductor and High Speed Fuse
