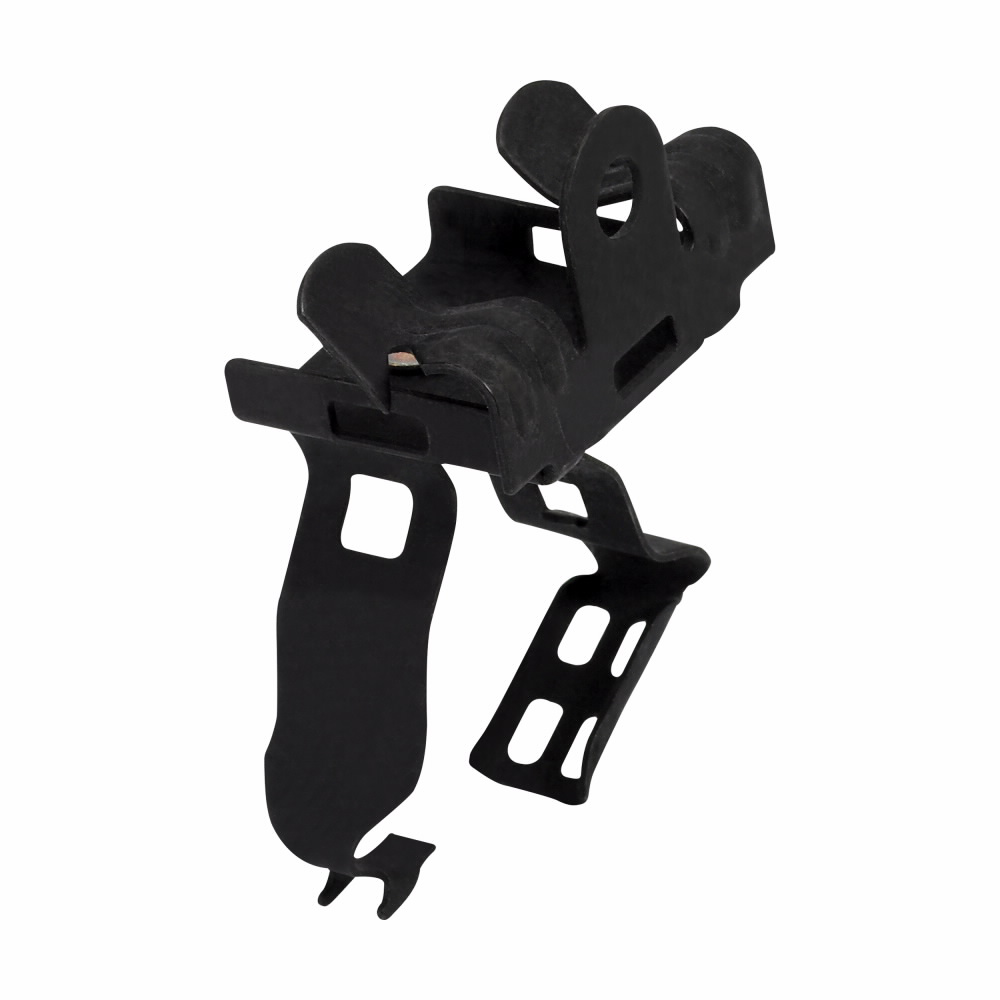

Eaton BG812U24 Conduit to Beam Fastener Flange Mount

Product Description

The EATON BG812U24 is a Guide-Rite conduit to beam fastener from the B-Line series, designed to secure 1/2-inch and 3/4-inch conduit directly to beam flanges. The fastener measures 1 inch in height, 1 inch in length, and 1 inch in width, weighing just 0.085 pounds. It accommodates flange thicknesses from 0.125 inches up to 0.25 inches, making it suited for a range of structural steel beam flanges commonly found in commercial and industrial electrical installations. Licensed electricians and electrical contractors install this fastener as part of conduit support and routing systems.

The BG812U24 is used in commercial and industrial settings where conduit must be routed along or attached to structural steel beams. It is appropriate for use with both 1/2-inch and 3/4-inch conduit runs in new construction, tenant improvement, and retrofit projects. The flange-mount design eliminates the need for drilling or welding, allowing faster conduit support installation in steel-framed structures.

Key Features

• Supports 1/2-inch and 3/4-inch conduit sizes in a single fastener
• Mounts to beam flanges ranging from 0.125 inches to 0.25 inches thick
• Compact 1 inch x 1 inch x 1 inch form factor for tight installation spaces
• Lightweight at 0.085 pounds for easy handling during overhead work
• No drilling or welding required for flange attachment
• Part of the EATON B-Line series conduit support system

Compatibility

Designed for use with 1/2-inch and 3/4-inch conduit and structural beam flanges with a thickness between 0.125 inches and 0.25 inches. Part of the EATON B-Line series conduit support product family.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for conduit support and spacing. De-energize all circuits in the work area before attaching or repositioning conduit supported by these fasteners. Verify that the beam flange thickness falls within the 0.125-inch to 0.25-inch mounting range before applying the fastener. Do not exceed the rated conduit sizes for this fastener.

Technical Specifications

• Conduit Size Compatibility: 0.5 inches, 0.75 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.085 pounds
• Minimum Mount Size: 0.125 inches
• Maximum Mount Size: 0.25 inches
• Mount Type: Beam Flange
• UPC: 781011185251

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG812U24
