Eaton BG812E24 Conduit to Beam Fastener 1/2 3/4 in

Product Description

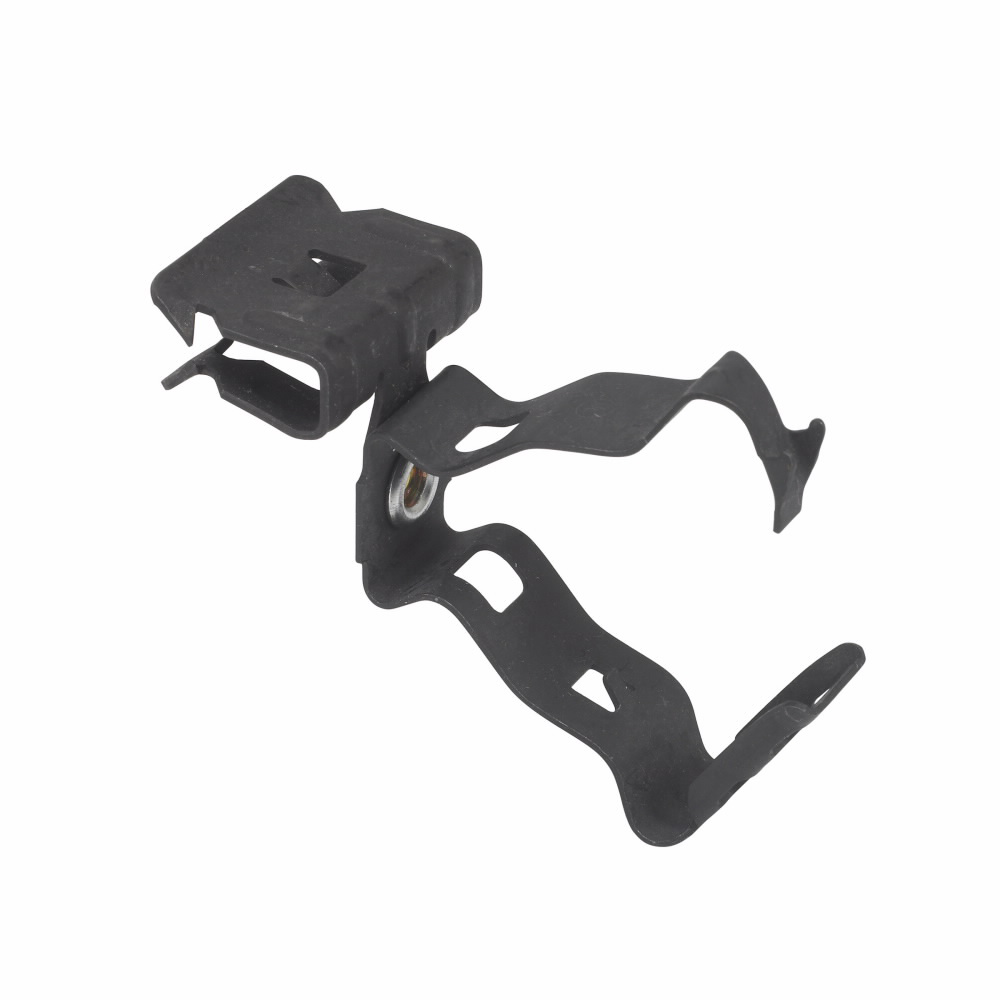

The EATON BG812E24 is a Guide-Rite conduit to beam fastener from the B-Line series, designed to secure conduit runs directly to structural beam flanges. This fastener accommodates 1/2-inch and 3/4-inch conduit sizes and clamps onto flange thicknesses ranging from 0.13 inches (minimum) to 0.25 inches (maximum). The unit measures 1 inch in height, 1 inch in length, and 1 inch in width, with a packaged weight of 0.065 pounds. Electricians and electrical contractors use this hardware to achieve clean, code-appropriate conduit support where beam flange attachment is required.

This fastener is suited for commercial and industrial electrical installations where conduit must be routed along or across structural steel beams with flanged profiles. It is a practical solution in steel-frame buildings, mechanical rooms, and industrial facilities where conduit support to beam flanges is a standard installation requirement. The compact form factor allows for tight clearances common in these environments.

Key Features

• Supports 1/2-inch and 3/4-inch conduit sizes in a single fastener
• Clamps to beam flanges from 0.13 inches to 0.25 inches thick
• Compact 1 inch x 1 inch x 1 inch profile for tight-clearance installs
• Part of the EATON B-Line series conduit support system
• Lightweight at 0.065 pounds for easy handling during overhead work

Compatibility

Designed as an OEM-style conduit support fastener for use with 1/2-inch and 3/4-inch conduit on structural beam flanges ranging from 0.13 inches to 0.25 inches in thickness.

Installation Notes

Installation is performed by licensed electricians in accordance with applicable NEC requirements for conduit support spacing and fastening. De-energize all circuits in the work area before securing conduit runs. Verify the beam flange thickness falls within the 0.13-inch to 0.25-inch range before applying the fastener to ensure a secure grip. Do not exceed the stated flange thickness range, as an improper fit may result in conduit movement or fastener failure.

Technical Specifications

• Conduit Size: 0.5 inches, 0.75 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Minimum Flange Mount Size: 0.13 inches
• Maximum Flange Mount Size: 0.25 inches
• Weight: 0.065 pounds
• Mounting Type: Beam Flange
• UPC: 781011185053

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG812E24
