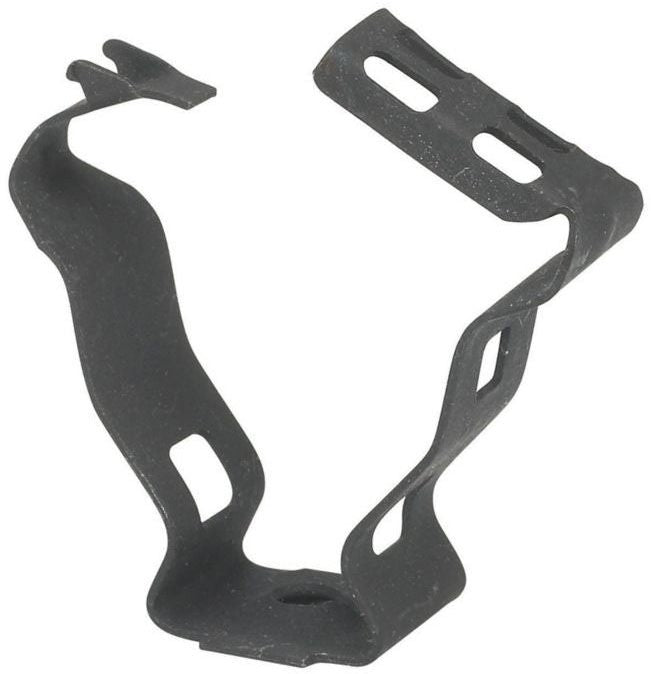

Eaton BG8124T Guide-rite Conduit Support Fastener

Product Description

The EATON BG8124T is a B-Line series Guide-Rite conduit support fastener designed to secure conduit and cable in electrical installations. This fastener measures 1 inch in height, 1 inch in length, and 1 inch in width, and features a 0.25 inch-20 thread impression for reliable attachment to standard threaded mounting hardware. At a listed weight of 0.001 pounds, it is a compact, lightweight component suited for use in conduit support applications. Licensed electricians and electrical contractors typically install this fastener as part of a conduit support system in commercial and residential electrical work.

The BG8124T is compatible with 0.5 inch and 0.75 inch conduit sizes, making it suitable for common small-diameter conduit runs. It fits into B-Line series conduit support systems and is used in applications where conduit and cable must be anchored securely to structural surfaces or support channels. This fastener is appropriate for use in new construction, retrofit, and maintenance work where a threaded mounting point is required.

Key Features

• Guide-Rite conduit fastener design for accurate, repeatable conduit positioning
• Compatible with 0.5 inch and 0.75 inch conduit sizes
• 0.25 inch-20 thread impression for secure threaded attachment
• Compact 1 inch x 1 inch x 1 inch profile minimizes space requirements
• Part of the EATON B-Line series conduit support system

Compatibility

Designed as an OEM-style component for use within the EATON B-Line series conduit support system, accommodating 0.5 inch and 0.75 inch conduit and cable.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for conduit support and securing intervals. Power down all circuits in the work area before installing or adjusting conduit support hardware. Ensure the mounting surface or support channel is rated for the intended load before fastening. Do not overtighten the threaded connection, as this may damage the thread impression.

Technical Specifications

• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.001 pounds
• Compatible Conduit Size: 0.5 inches, 0.75 inches
• Thread: 0.25 inch-20
• UPC: 781011183851

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG8124T
