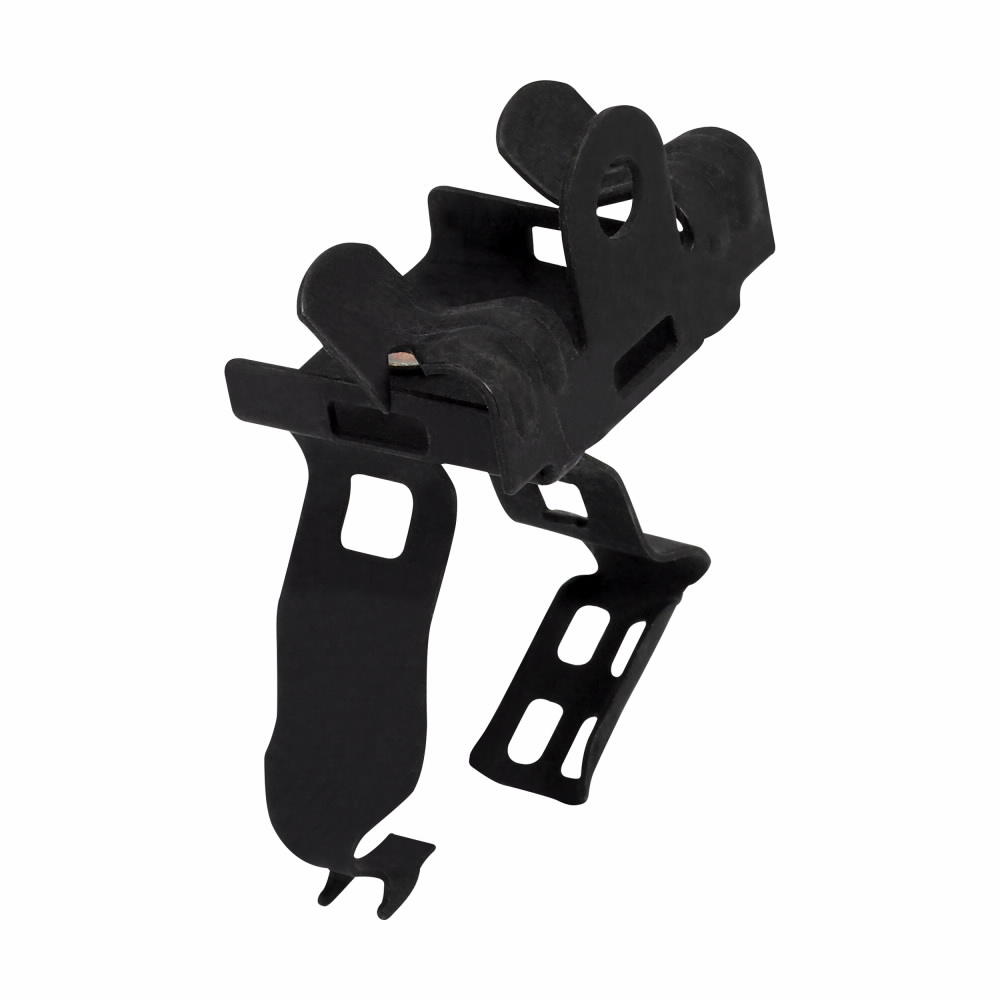

Eaton BG32-U-5-8 Beam Flange Conduit Fastener 2 in

Product Description

The EATON BG32-U-5-8 is a Guide-Rite conduit-to-beam flange fastener from the B-Line series, designed to secure conduit runs to structural beam flanges in commercial and industrial electrical installations. This fastener clamps 2-inch conduit directly to a beam flange without requiring drilling or welding, allowing electricians to establish clean, code-compliant conduit routes along structural steel. The unit weighs 0.125 pounds and measures 1 inch in height, 1 inch in length, and 1 inch in width, making it a compact, low-profile solution for tight overhead and lateral conduit routing. It accommodates flange mount thicknesses from 0.31 inches minimum to 0.5 inches maximum.

This fastener is used in commercial and industrial electrical work where conduit must be supported along I-beams, channel beams, or other flanged structural members. It is a common component in panel feeds, branch circuit routing, and equipment connection conduit runs where structural steel serves as the support framework. Licensed electricians install this hardware as part of conduit support systems governed by NEC requirements for conduit support spacing and secure attachment.

Key Features

• Accepts 2-inch conduit for direct beam flange attachment
• Fits beam flange thickness from 0.31 inches to 0.5 inches
• Compact 1 inch x 1 inch x 1 inch form factor for tight installations
• No drilling or welding required for attachment to structural beam flanges
• Lightweight at 0.125 pounds for overhead installation ease
• Part of the B-Line series for consistent compatibility with other B-Line conduit support components

Compatibility

Designed as an OEM-style conduit support fastener for use with 2-inch conduit runs attached to flanged structural beams within the EATON B-Line series conduit support system.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for conduit support intervals and secure fastening. De-energize all circuits in the work area before beginning conduit support installation. Verify beam flange thickness falls within the 0.31 inch to 0.5 inch range before securing the fastener. Do not exceed the stated flange thickness limits, as doing so may result in an unsecured connection.

Technical Specifications

• Conduit Size: 2 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.125 pounds
• Minimum Mount Size: 0.31 inches
• Maximum Mount Size: 0.5 inches
• Mount Type: Beam Flange
• UPC: 781011187651

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG32-U-5-8
