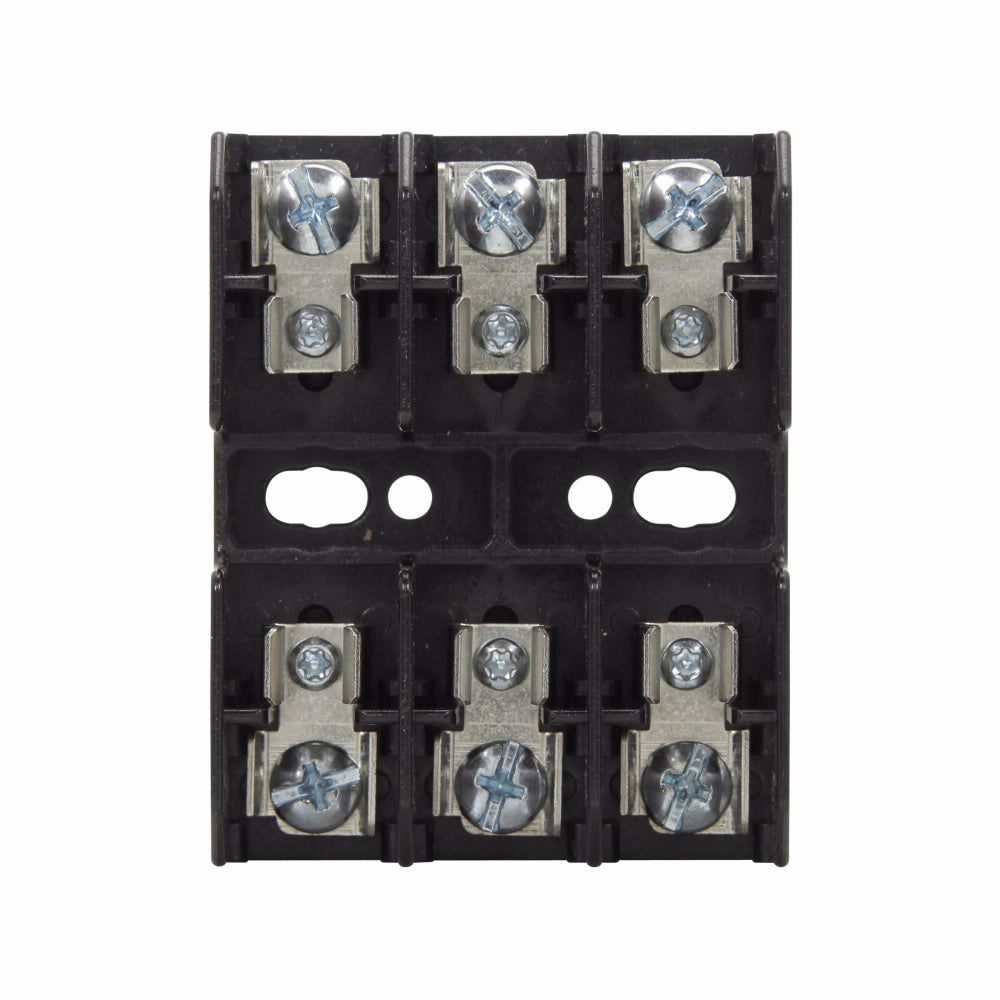

Eaton BG3033S EFSE BG3033S 480V Fuse Block

Product Description

The Eaton BG3033S is a fuse block designed for use with 480V systems. This open style fuse block is part of the Bussmann series, known for its reliable performance in electrical applications.

• Amperage Rating: 25 to 30 A
• Voltage Rating: 480 V
• Suitable For Use With Bussmann SC Series G Fuse

Product Highlights

This fuse block features a thermoplastic construction for durability and is suitable for DIN rail mounting.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: BG3033S

Technical Specifications

• Type: Open Style
• Class: G
• Color: Black
• Dimensions: 3 inches L x 2.38 inches W x 1.22 inches H
• Fuse Diameter: 13/32 inches
• Fuse Length: 1.639 inches
• Material: Thermoplastic
• Mounting Type: DIN Rail
• Number of Poles: 3
• Temperature Rating: 130 degrees C
• Connection Type: Screw
• Standards/Approvals: CSA C22.2 No. 39/6225-01/File No. 47235, RoHS Compliant, UL 512/File No. E14853, UL Guide IZLT2
