Eaton BG24E24 Guide-rite Conduit Beam Fastener

Product Description

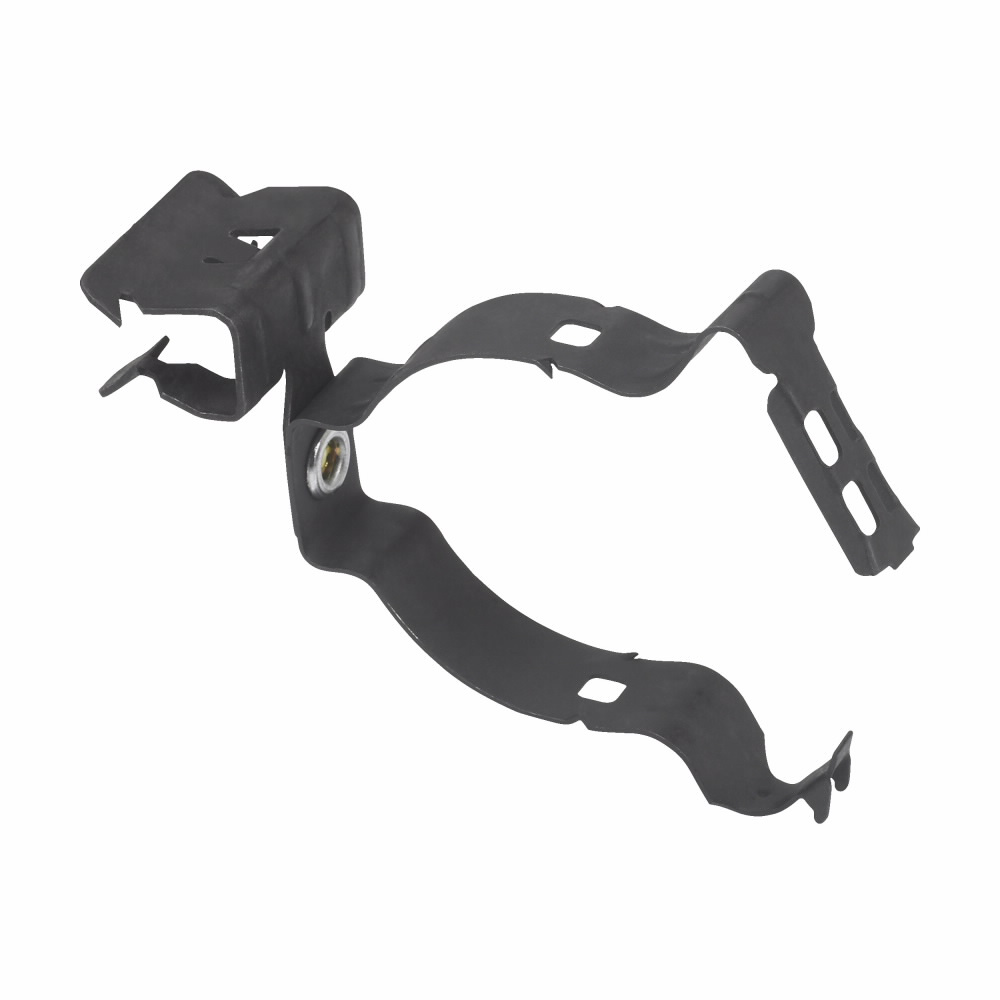

The EATON BG24E24 is a Guide-Rite conduit to beam fastener from the B-Line series, designed to secure conduit runs to beam flanges in commercial and industrial electrical installations. The fastener accommodates 1.5-inch conduit and mounts to beam flanges ranging from 0.13 inches to 0.25 inches in thickness. Its compact footprint measures 1 inch in height, 1 inch in length, and 1 inch in width, and the unit weighs approximately 0.085 pounds. Licensed electricians and electrical contractors install this hardware when routing conduit along structural steel beams, where a positive, vibration-resistant attachment to the flange face is required.

This fastener is suited for use in structural steel framing environments common to commercial buildings, industrial facilities, and institutional construction. It is applied wherever rigid or intermediate metal conduit must be supported at beam flange locations, eliminating the need for drilled holes in structural steel. The B-Line series beam fastener line is a recognized solution for organized, code-compliant conduit support layouts on exposed steel framing.

Key Features

• Accepts 1.5-inch conduit for a secure, consistent fit at the beam attachment point
• Flange mount design clamps to beam flanges from 0.13 inches to 0.25 inches thick without drilling
• Compact 1 inch x 1 inch x 1 inch body minimizes protrusion from the beam face
• Lightweight construction at 0.085 pounds reduces cumulative load on conduit support systems
• Part of the Eaton B-Line series conduit support fastener family for consistent system-wide hardware

Compatibility

Designed as an OEM-style replacement and standard installation component for conduit support systems requiring beam flange attachment of 1.5-inch conduit with flange thicknesses between 0.13 inches and 0.25 inches.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for conduit support spacing and securing methods. De-energize all circuits in the conduit run before handling or repositioning conduit during fastener installation. Verify beam flange thickness falls within the 0.13-inch to 0.25-inch range before seating the fastener to ensure a positive grip. Do not exceed the conduit size rating; using this fastener with conduit sizes other than 1.5 inches may result in an insecure mounting.

Technical Specifications

• Conduit Size: 1.5 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.085 pounds
• Minimum Mount Size: 0.13 inches
• Maximum Mount Size: 0.25 inches
• Mount Type: Beam Flange
• UPC: 781011187057

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG24E24
