Eaton BG20U24 Conduit to Beam Fastener 1.25 in Conduit

Product Description

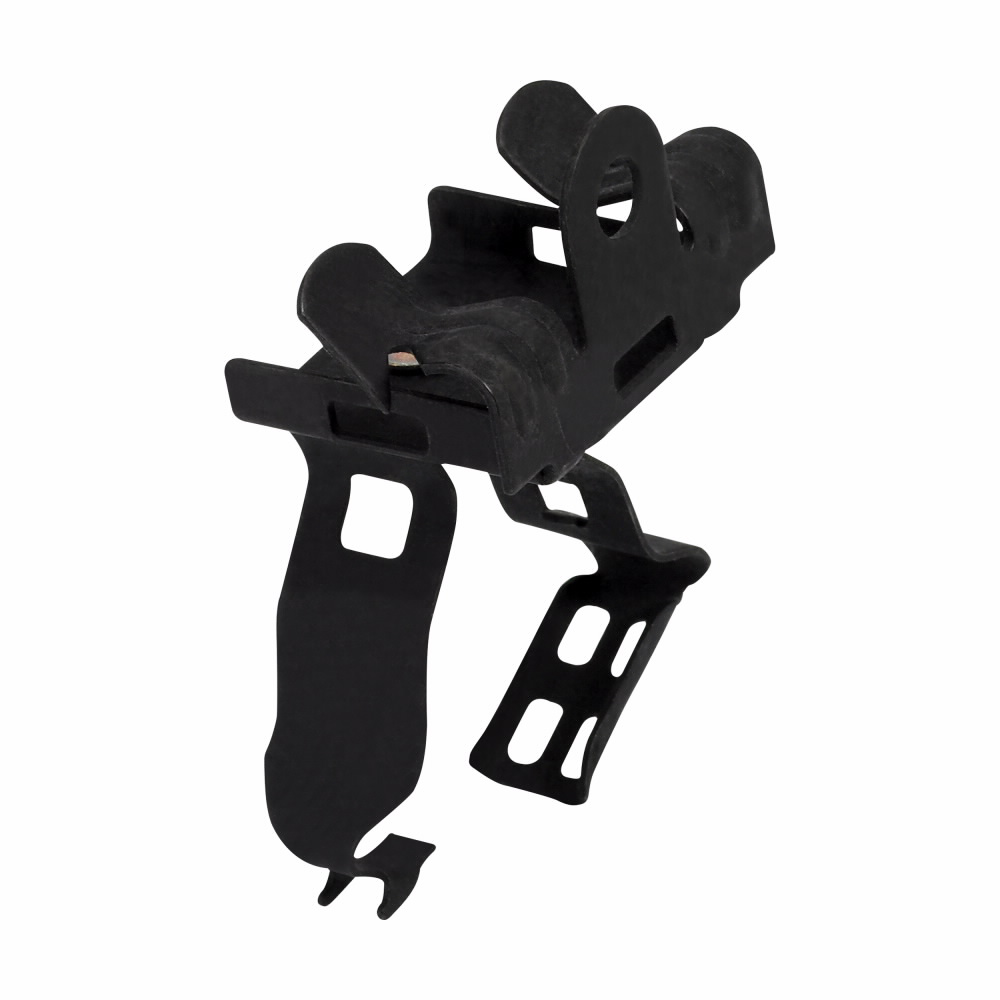

The EATON BG20U24 is a Guide-Rite conduit to beam fastener from the B-Line series, designed to secure conduit runs directly to structural beam flanges. This hardware is used to route and support conduit through steel-framed structures, keeping runs aligned and stable without additional strut or channel. The fastener accommodates a 1.25-inch conduit and clamps onto flanges ranging from 0.125 inches to 0.25 inches thick. At 0.105 pounds, it is a compact, lightweight clip measuring 1 inch in height, 1 inch in length, and 1 inch in width. Electricians and electrical contractors install this fastener wherever conduit must be secured directly to beam flanges in commercial and industrial construction.

The BG20U24 is suited for commercial and industrial electrical installations where conduit must follow structural steel framing. Typical applications include beam-mounted conduit runs in warehouses, manufacturing facilities, data centers, and other steel-frame buildings. The fastener attaches to the flange of a steel I-beam or similar structural member and holds 1.25-inch conduit in position, keeping wiring systems organized and code-compliant along the structural framing path.

Key Features

• Accepts 1.25-inch conduit for a secure, direct beam-mount attachment
• Fits flange thicknesses from 0.125 inches to 0.25 inches
• Compact 1 inch x 1 inch x 1 inch profile minimizes installation footprint
• Lightweight at 0.105 pounds for easy single-hand positioning during install
• Part of the EATON B-Line series Guide-Rite conduit support system

Compatibility

Designed as an OEM-style conduit support fastener for use with 1.25-inch conduit secured to beam flanges with a thickness between 0.125 inches and 0.25 inches, consistent with the EATON B-Line Guide-Rite conduit support system.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for conduit support and spacing. Before installation, de-energize any nearby circuits and verify the structural member flange is within the 0.125-inch to 0.25-inch thickness range. Do not force the fastener onto flanges outside the specified thickness range, as this may compromise the holding strength of the mount. Consult local electrical codes for required conduit support intervals.

Technical Specifications

• Conduit Size: 1.25 inches
• Minimum Mount (Flange) Thickness: 0.125 inches
• Maximum Mount (Flange) Thickness: 0.25 inches
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.105 pounds
• Mounting Type: Beam Flange
• UPC: 781011186807

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG20U24
