Eaton BG16E24 Conduit to Beam Fastener 1 in Flange

Product Description

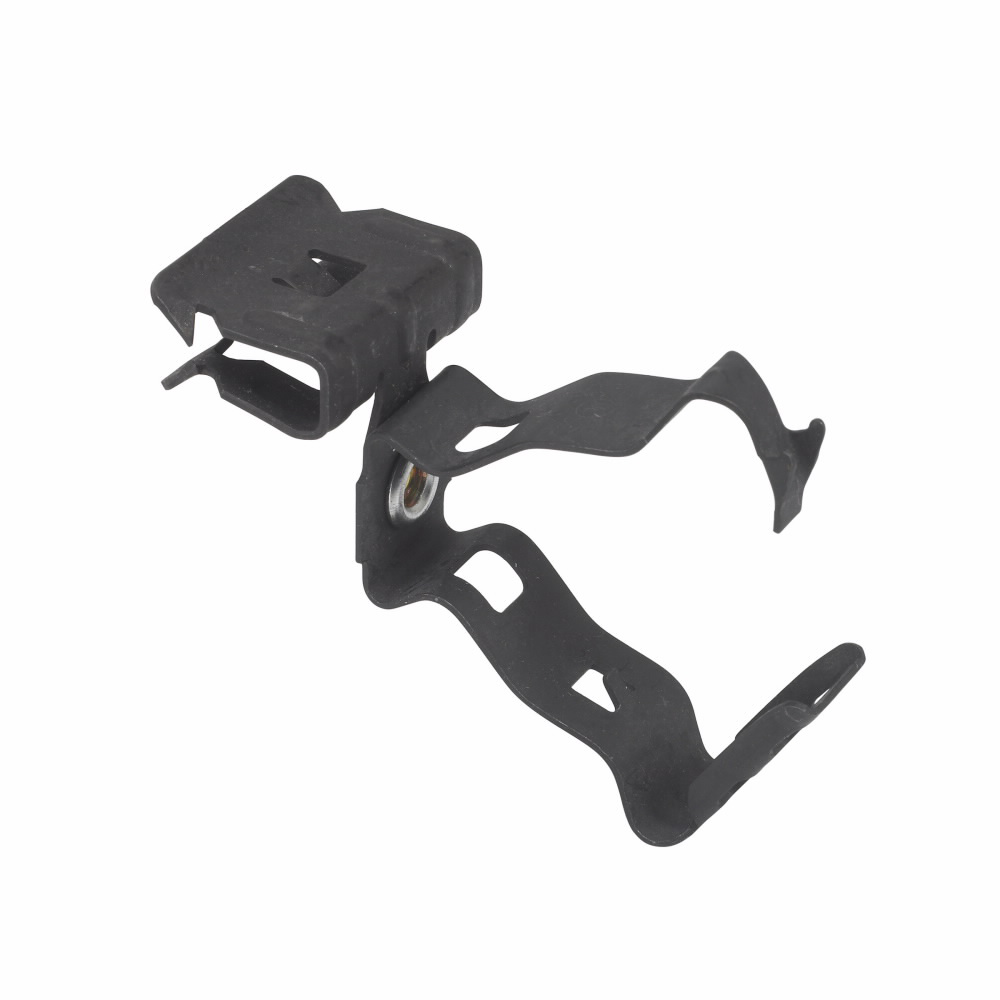

The EATON BG16E24 is a Guide-Rite conduit to beam fastener from the B-Line series, designed to secure 1-inch conduit directly to structural beam flanges. This fitting provides a clean, low-profile mount in applications where conduit must be routed along steel beams without additional strut or bracket hardware. The fastener accommodates flange thicknesses from 0.13 inches to 0.25 inches, making it suitable for a range of standard beam flange profiles. At 0.065 pounds, it is a lightweight component typically installed by licensed electricians during commercial or industrial conduit rough-in work.

This fastener is used in commercial and industrial electrical installations where conduit runs are supported from structural steel beams. The flange-clamp design eliminates the need for drilled holes in the beam, making it well suited for new construction and retrofit projects alike. It is commonly specified in steel-frame buildings, warehouses, and mechanical rooms where EMT or rigid conduit must be secured overhead or along vertical steel members.

Key Features

• Secures 1-inch conduit directly to beam flanges without drilling
• Accepts flange thicknesses from 0.13 inches to 0.25 inches
• Compact 1 inch x 1 inch x 1 inch form factor for tight spaces
• Lightweight at 0.065 pounds for fast, overhead installation
• Part of the EATON B-Line series Guide-Rite conduit support system

Compatibility

Designed as an OEM-style conduit support fastener for 1-inch conduit secured to structural beam flanges with thicknesses between 0.13 inches and 0.25 inches, as part of the EATON B-Line series Guide-Rite conduit support system.

Installation Notes

Installation is performed by a licensed electrician in accordance with applicable NEC requirements for conduit support spacing and securement. Power down all affected circuits before working in the conduit run. Confirm beam flange thickness falls within the 0.13-inch to 0.25-inch range before applying the fastener to ensure a secure, code-compliant grip. Do not exceed the rated flange thickness or force the fastener onto out-of-spec flanges.

Technical Specifications

• Conduit Size: 1 inch
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Minimum Mount Size: 0.13 inches
• Maximum Mount Size: 0.25 inches
• Weight: 0.065 pounds
• Mount Type: Flange
• UPC: 781011185756

Standard Information

• Brand: EATON
• Manufacturer Part Number: BG16E24
