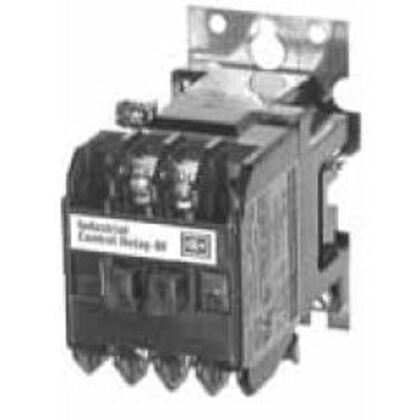

Eaton BF66F relay 12-pole 120VAC

Product Description

The EATON BF66F is a basic relay from the BF series with a 300V maximum voltage rating. This 12-pole relay features a 110/120V coil voltage and operates at 50/60 Hz. It has a 6NO-6NC contact configuration and clamp terminals fully accessible from the front. Suitable for low voltage circuits.

• Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time
• Terminals are shrouded or finger proofed to reduce possibility of electrical shock
• Wide spacing of contacts simplifies installation, contact testing and maintenance

Product Highlights

EATON BF66F relay with 6NO-6NC contact configuration, 120VAC coil, and clamp terminals for easy installation and maintenance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BF66F
• Country of Origin: USA

Technical Specifications

• Type: Machine tool relay
• Brand: Eaton
• Height: 4.81 Inch
• Length: 3.13 Inch
• Voltage: 300 Volt
• Frequency: 50-60 Hz
• Coil Voltage: 120 V
• Number of Poles: 12 Pole
• Contact Configuration: 6 NO-6 NC
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Enclosure Type: NEMA 1
• Mounting Type: Panel
• Series: BF Series
• Terminal Type: Clamp
• Amperage Rating: 10 A
• MPN: BF66F
• Max Voltage Rating: 300V
• Poles: 12-pole
• Product Name: Eaton NEMA machine tool relay
• Catalog Number: BF66F
• UPC: 786678278988
• Product Length/Depth: 3.13 in
• Product Height: 4.81 in
• Product Width: 1.97 in
• Product Type: Machine tool relay
• Voltage rating: 300 V
• Volts AC Control: 120
• Amps: 10
• Mounting: Surface
• Category: Relay/Socket
