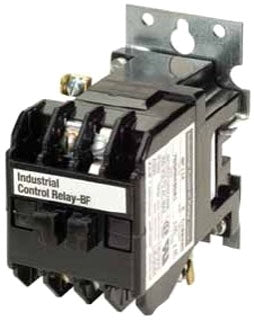

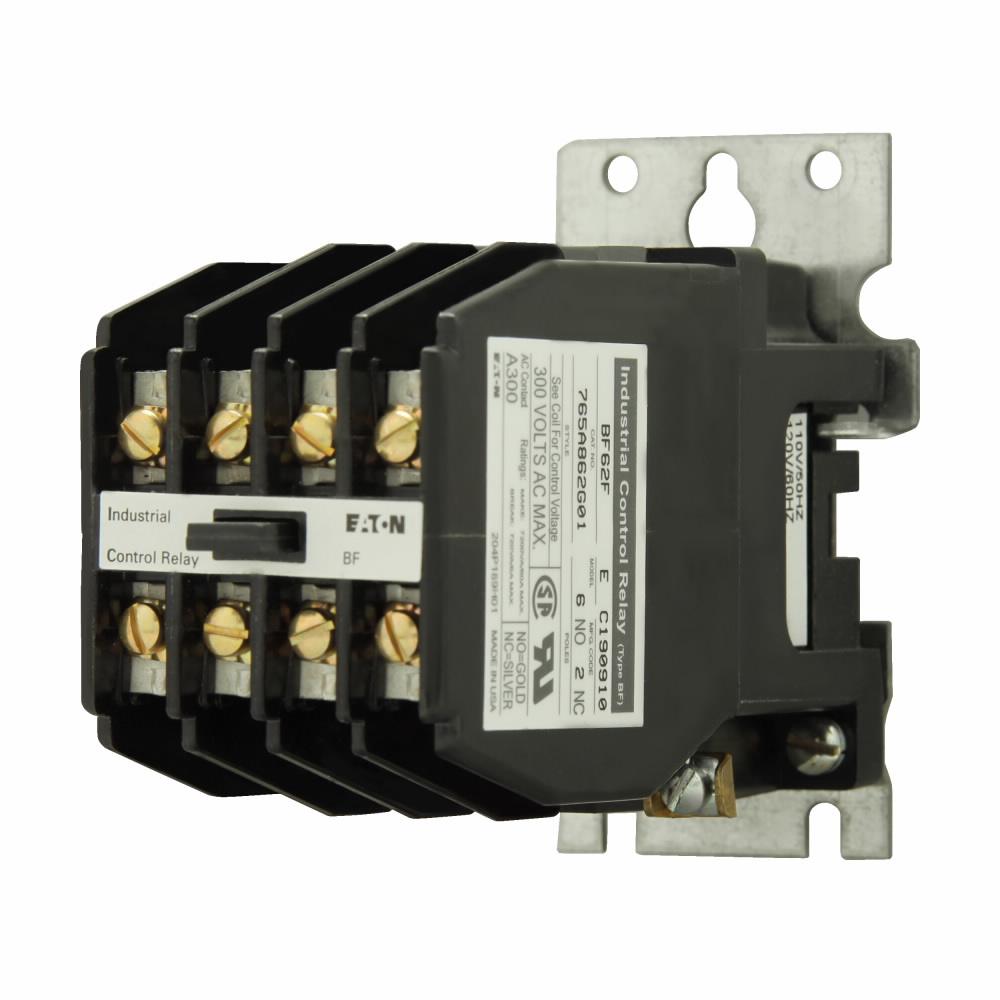

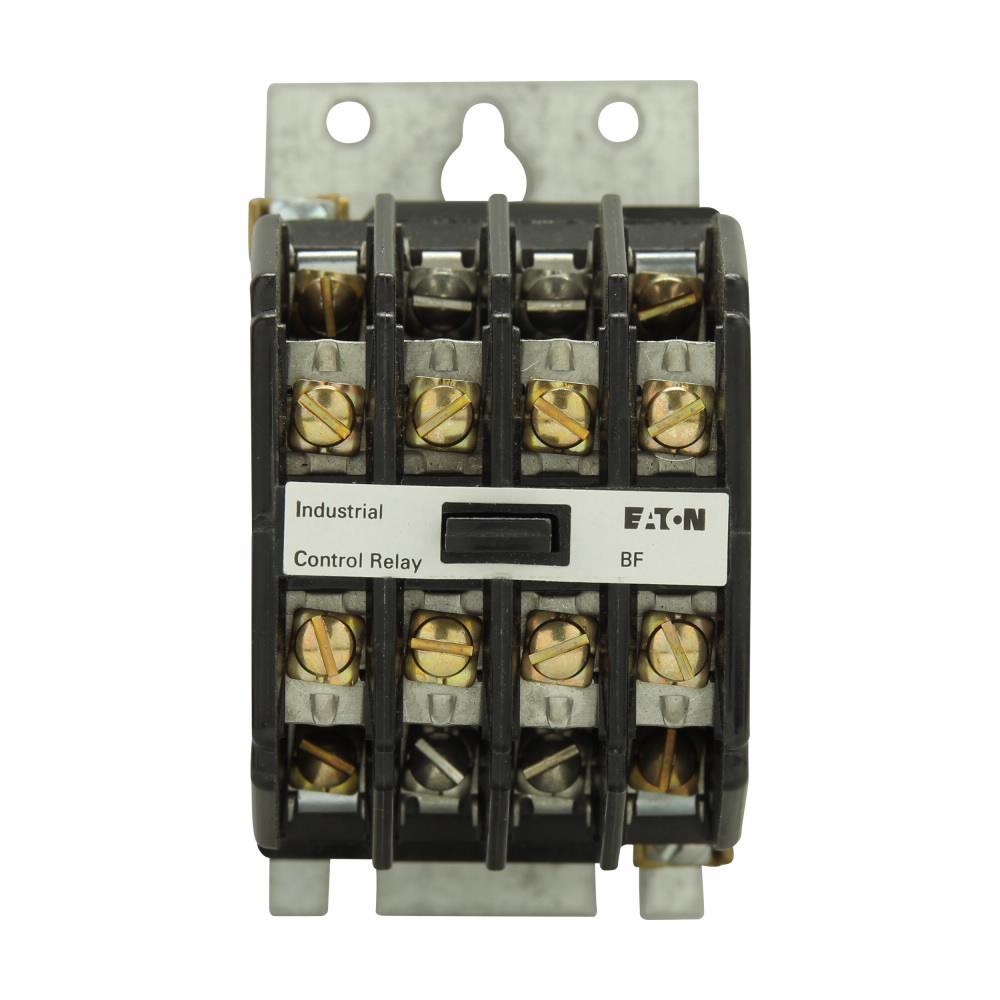

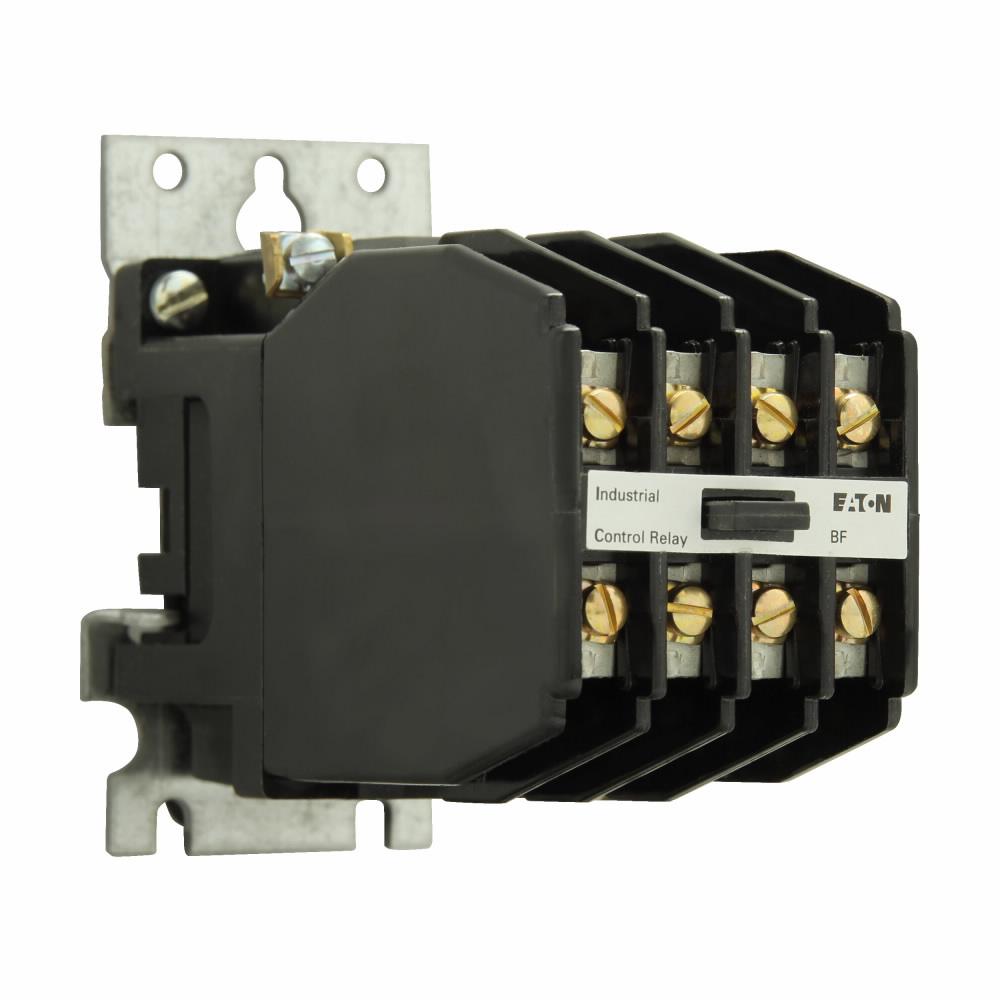

Eaton BF62F Basic Relay, 300V max. voltage rating, Eight-pole, 110/120V Coil Voltage, 6NO-2NC Contact Configuration

Product Description

The Eaton BF62F is a BF Series basic relay with a maximum voltage rating of 300V. This eight-pole relay features a 110/120V coil voltage and a 6NO-2NC contact configuration. It is designed for use in machines, process lines, conveyors, and similar automatic and semiautomatic equipment.

• Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time
• Terminals are shrouded or finger proofed to reduce possibility of electrical shock
• Wide spacing of contacts simplifies installation, contact testing and maintenance

Product Highlights

Eaton's BF62F relay is ideal for industrial control applications requiring a reliable and versatile switching solution. It offers easy installation and maintenance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BF62F
• Country of Origin: US

Technical Specifications

• Catalog Number: BF62F
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: United States
• Made in USA: Yes
• Contact Configuration: 6 NO-2 NC
• Frequency Rating: 50-60 Hz
• Number of Poles: 8
• Standard: CSA file No. LR39402-6,UL Recognized file E19223
• UPC: 786678278353
• GTIN: 00786678278353
• Item Type: Machine tool relay
• Type: Basic Fixed Contact Industrial
• Coil Voltage: 110/120 VAC
• Mounting Type: Panel
• Terminal Type: Clamp
• Enclosure Type: NEMA 1
• Amperage Rating: 10 A
• Max Voltage Rating: 300V
• Voltage: 300V AC
• Series: BF Series
• Warranty: 1 year
• Nominal Voltage: 120 VAC
• Product Length/Depth: 3.13 in
• Product Height: 4.19 in
• Product Width: 1.97 in
• Certifications: UL Recognized file E19223 CSA file No. LR39402-6
