Product Description

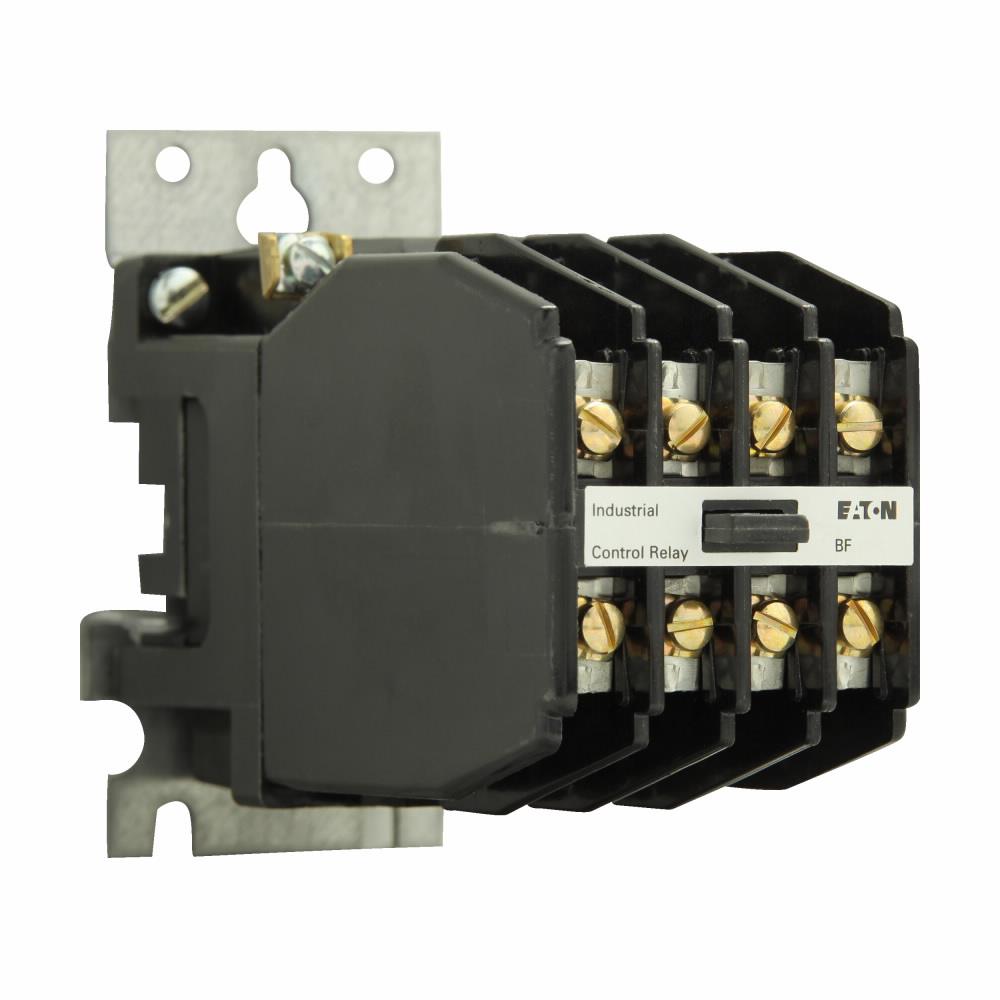

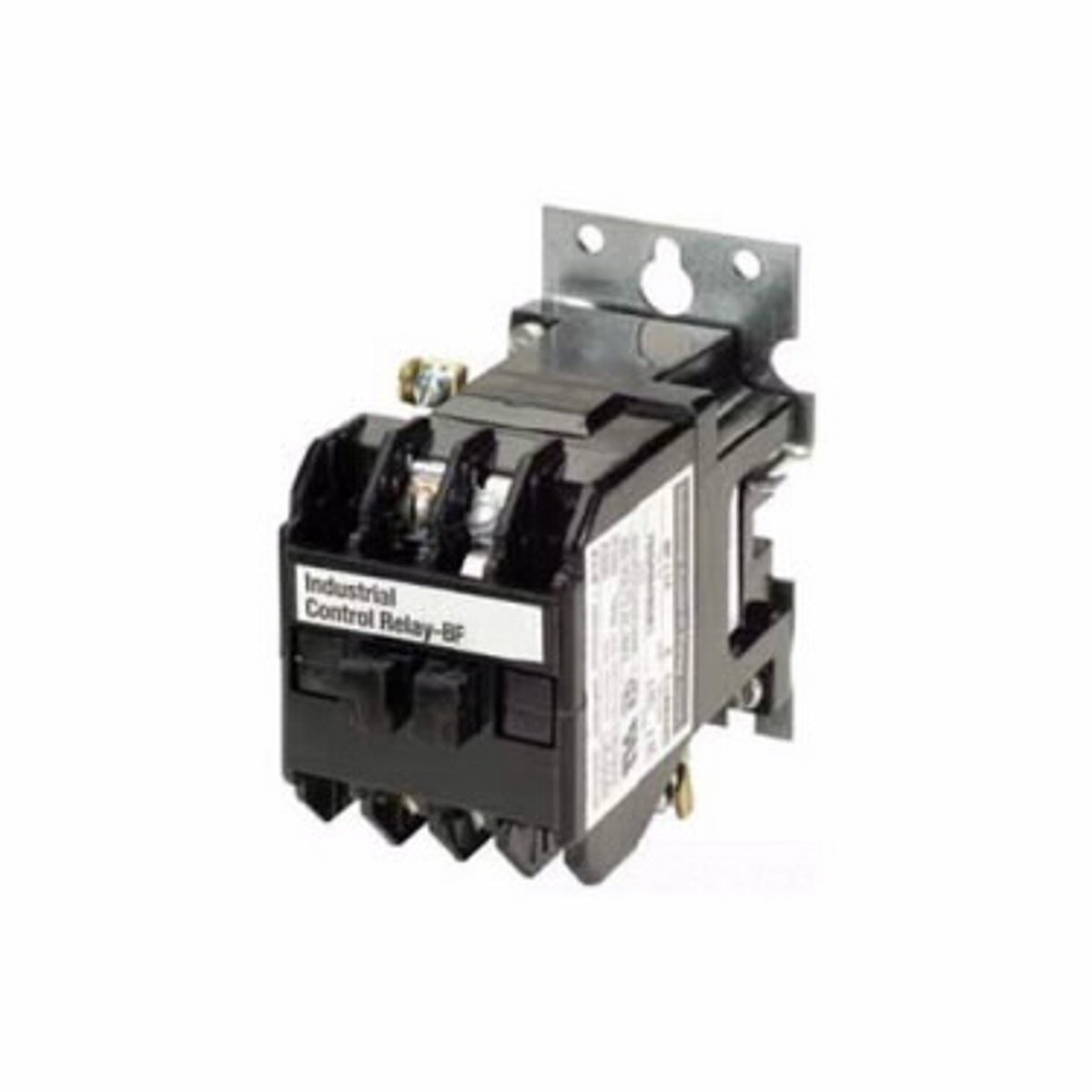

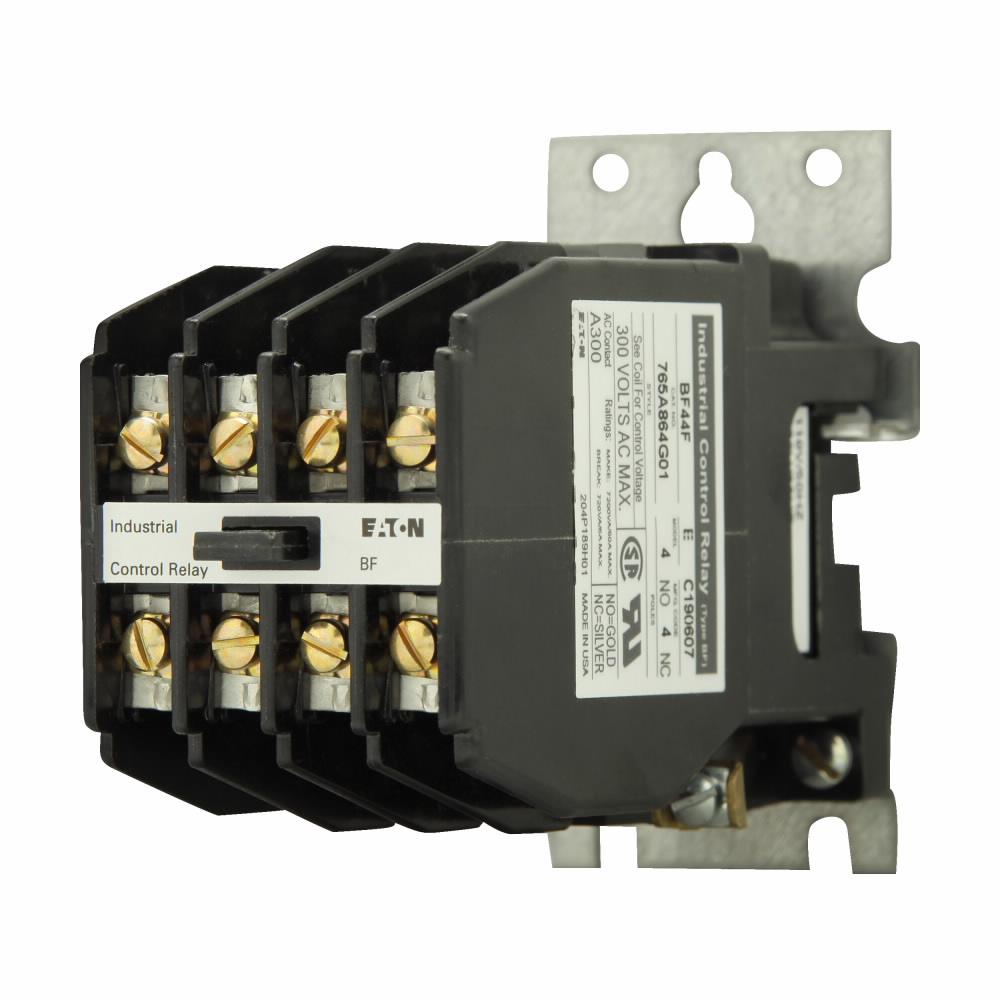

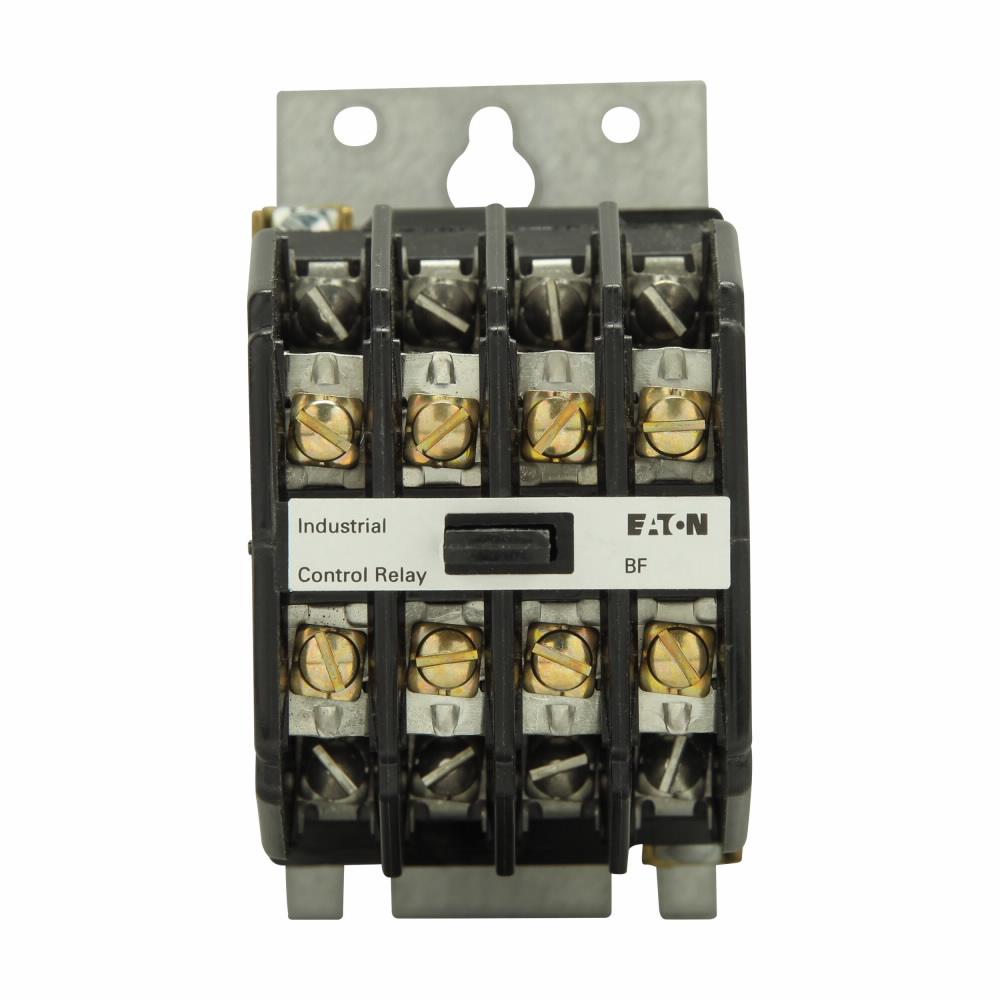

The Eaton BF44F is a BF Series basic relay with a 300V maximum voltage rating and an eight-pole configuration. It features a 110/120V coil voltage and operates at 50/60 Hz, with a 4NO-4NC contact configuration. This relay is designed for use in electrical assemblies, panels, and EOEM applications.
- Features captive clamp terminals fully accessible from the front.
- Has a molded coil with low operating temperature.
- Contacts are electrically and mechanically isolated for added safety.
Product Highlights
Eaton's BF44F relay is suitable for machines, process lines, conveyors, and similar automatic and semiautomatic equipment.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: BF44F
-
Country of Origin: United States
Technical Specifications
-
Type: Basic Fixed Contact Industrial
-
Brand: Eaton
-
Width: 1.97 in
-
Height: 4.19 Inch
-
Length: 3.13 Inch
-
Voltage: 300 Volt
-
Standard: CSA File No. LR39402-6,UL Recognized File E19223
-
Frequency: 50-60 Hz
-
Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
-
Coil Voltage: 110/120 VAC
-
Product Series: BF Series
-
Number of Poles: 8
-
Contact Configuration: 4 NO-4 NC
-
Country of Origin: United States
-
Made in USA: Yes
-
Frequency Rating: 50/60 Hz
-
Item Type: Machine tool relay
-
Dimensions: 3.13 in L x 1.97 in W x 4.19 in H
-
Mounting Type: Panel
-
Terminal Type: Clamp
-
Enclosure Type: NEMA 1
-
Amperage Rating: 10 A
-
Voltage Rating: 300V
-
Poles: Eight-pole
-
Enclosure: NEMA 1
-
Standards/Approvals: CSA Certified File No. LR39402-6|UL Listed File No. E19223|UL Listed Class NKCR2
-
Relay Poles: Eight Pole
-
Relay Throws: Single Throw 4 Normally Open & 4 Normally Closed
-
Coil Voltage Rating: 120 Volt
-
Manufacturer: Eaton Cutler-Hammer
-
Component: Machine Tool Relay
-
Relay UL Rating: UL Recognized File E19223
-
Part Number: BF44F
-
Family: BF Series
-
Category: Motor Control Parts And Accessories
-
Group: Relays
-
Dimensions (HxWxD): 4.19"x1.97"x3.13"
-
Warranty: 1 year
