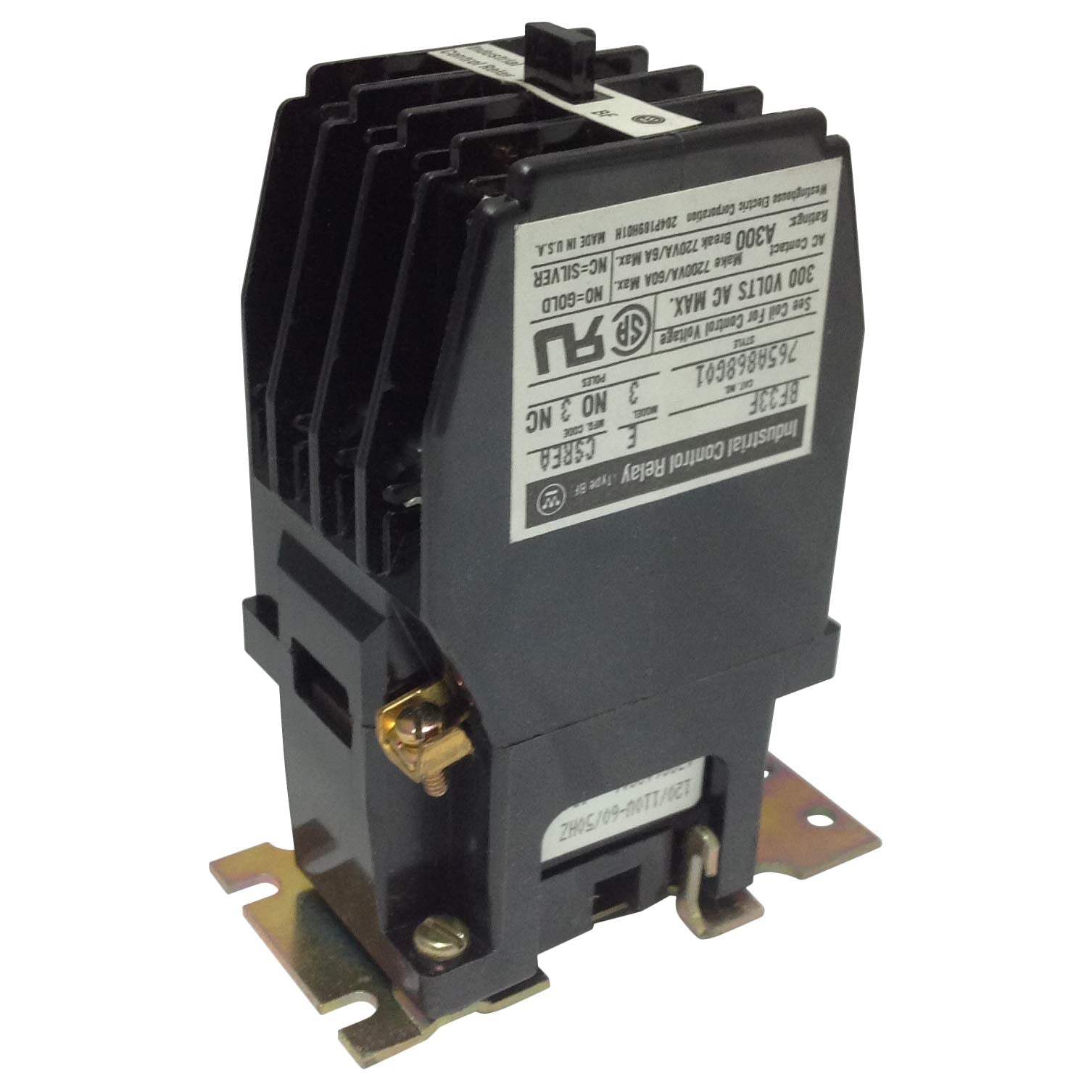

Eaton BF33F Basic Relay 110/120V Coil Voltage 6 Pole

Product Description

The Eaton BF33F is a BF Series basic relay with a 300V maximum voltage rating. This six-pole relay features a 110/120V coil voltage and a 3NO-3NC contact configuration. It is suitable for electrical assemblies, panels, and EOEM applications. The relay has clamp terminals fully accessible from the front and silver alloy contacts suitable for low voltage circuits.

• Contact pole terminals have captive, backed-out, self-lifting pressure plates for reduced wiring time.
• Terminals are shrouded to reduce the possibility of electrical shock.
• Wide spacing of contacts simplifies installation, contact testing, and maintenance.

Product Highlights

Eaton's BF33F is a reliable basic relay with a 3NO-3NC contact form, ideal for industrial control applications requiring a robust and safe design.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BF33F

Technical Specifications

• Type: Machine tool relay
• Brand: Eaton
• Voltage: 300 Volt
• Frequency: 50-60 Hz
• Coil Voltage: 110/120 VAC
• Number of Poles: 6
• Contact Configuration: 3NO-3NC
• Applications: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Enclosure Type: NEMA 1
• Mounting Type: Panel
• Series: BF Series
• Terminal Type: Clamp
• Amperage Rating: 10 A
• Manufacturer: Cutler Hammer, Div of Eaton
• Standards/Approvals: CSA Certified File No. LR39402-6|UL Listed File No. E19223 Class NKCR2
• Product Type: RELAY
• MPN: BF33F
• Frequency Rating: 50-60Hz
• Voltage Rating: 300V
• Relay Poles: Six Pole
• Relay Throws: Single Throw 3 Normally Open & 3 Normally Closed
• Coil Voltage Rating: 120 Volt
• Component: Machine Tool Relay
• Relay UL Rating: UL Recognized File E19223
• Nominal Voltage: 120 VAC
• Mounting: Screw
• Approvals: CSA, UL
