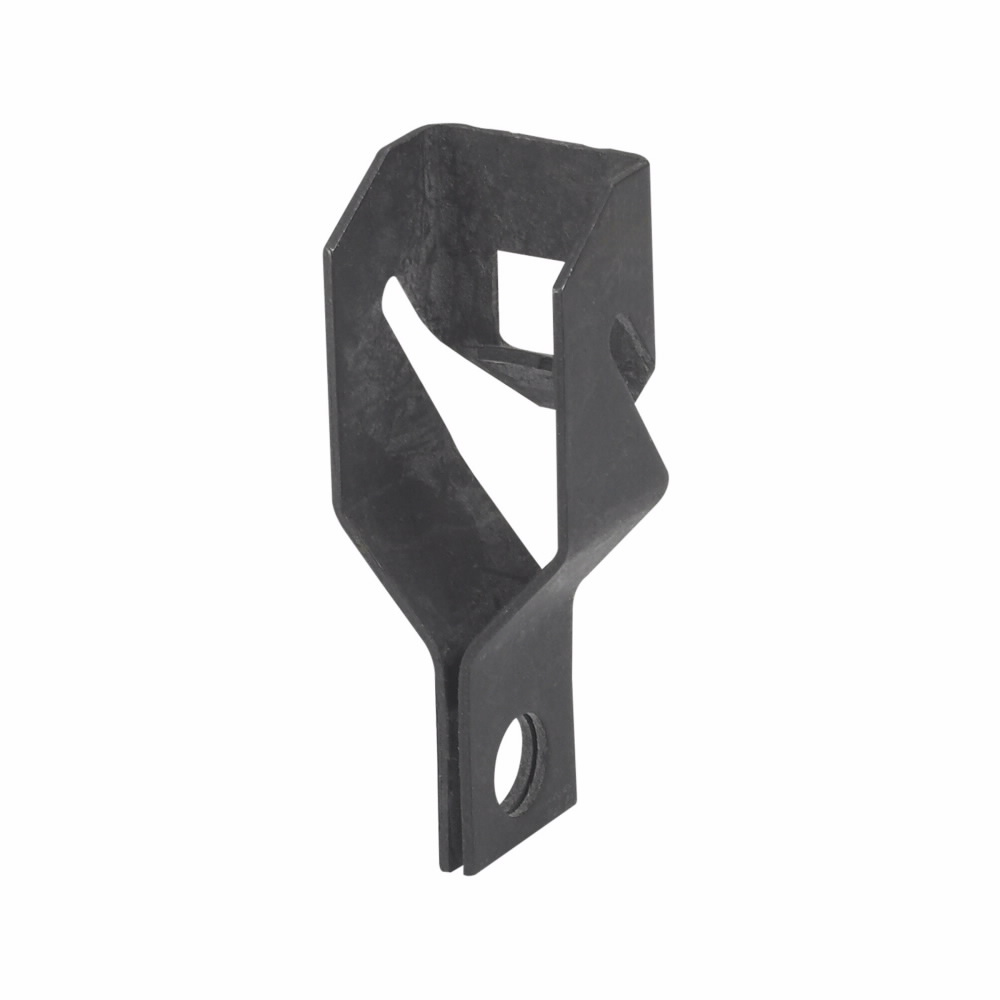

Eaton BF12 Z Purlin Clip Hanger 100 Lb S Hook

Product Description

The EATON BF12 is a Z purlin clip hanger from the B-Line series, designed to support threaded rod and drop wire suspension systems in commercial and industrial construction. This small-profile clip accepts S hooks through a 0.25 inch hole and provides a rated load capacity of 100 lbs. At 1 inch in height, 1 inch in length, and 1 inch in width, the BF12 fits tight structural and framing cavities where space is limited. It is installed by electricians, mechanical contractors, and general trade professionals to anchor threaded rod drops or wire hangers to Z-profile purlin framing members.

The BF12 is suited for use in commercial buildings, industrial facilities, and warehouse structures where Z purlin steel framing is used as the primary overhead support structure. It is a standard component in conduit support runs, HVAC duct hanger systems, and general mechanical suspension applications wherever threaded rod or drop wire needs to terminate at a purlin flange. The clip is part of the EATON B-Line series, a widely specified line of support hardware in both new construction and retrofit installations.

Key Features

• 100 lb rated load capacity for reliable threaded rod and drop wire support

• 0.25 inch hole sized for standard S hook engagement

• Compact 1 x 1 x 1 inch profile fits tight purlin flange clearances

• Designed for Z purlin framing common in steel commercial and industrial construction

• Part of the EATON B-Line series for broad compatibility with B-Line support system components

Compatibility

Designed as an OEM-style replacement and standard component for Z purlin hanger applications within the EATON B-Line series threaded rod and drop wire support system.

Installation Notes

Installation is performed by licensed electricians or mechanical contractors working overhead on steel framing. Verify the purlin flange profile matches the Z purlin clip geometry before installation, and confirm the suspended load does not exceed the 100 lb rated capacity. De-energize any nearby electrical systems before working in the overhead space. Follow applicable NEC or local mechanical code requirements for support spacing and hanger loading.

Technical Specifications

• Load Capacity: 100 lbs

• Hole Size: 0.25 inches

• Height: 1 inch

• Length: 1 inch

• Width: 1 inch

• Weight: 0.025 pounds

• UPC: 781011183400

Standard Information

• Brand: EATON

• Manufacturer Part Number: BF12

• Quantity: 20
