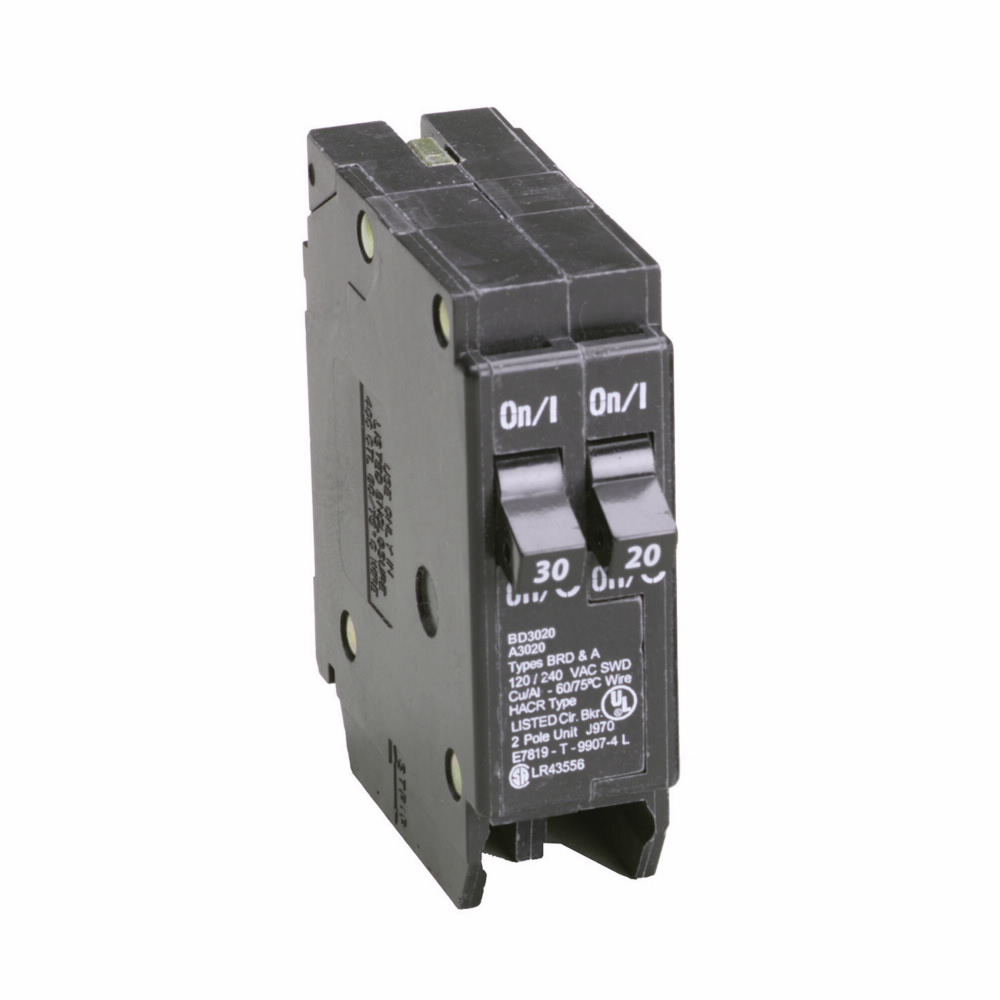

Eaton BD3020 1 Inch CTL Class Type BD Plug-On Circuit Breaker

Product Description

The Eaton BD3020 is a thermal magnetic circuit breaker designed for use in load centers and panelboards. This type BD circuit breaker is a plug-on style that can handle a range of amperages from twenty to thirty amps. It operates at one hundred twenty volts and has a ten kA interrupt rating.

• Includes rejection tab feature for easy installation
• Suitable for residential and commercial applications
• Compatible with BR-type load centers

Product Highlights

The Eaton BD3020 circuit breaker ensures reliable performance and protection against electrical overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Eaton
• Brand: Eaton

Technical Specifications

• Type: Type BD 1-Inch CTL Plug-on Breaker
• Voltage: 120 Volt
• Amperage: 20 Amp
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Wire Size: #14-4 AWG Copper/Aluminum
• Height: 3 Inch
• Length: 2 Inch
• Weight: 0.38 lb
• Standard: UL 489, Federal Specifications Classification W-C375
• Application: Suitable for renewable and conventional energy generation
• Country of Origin: Dominican Republic
