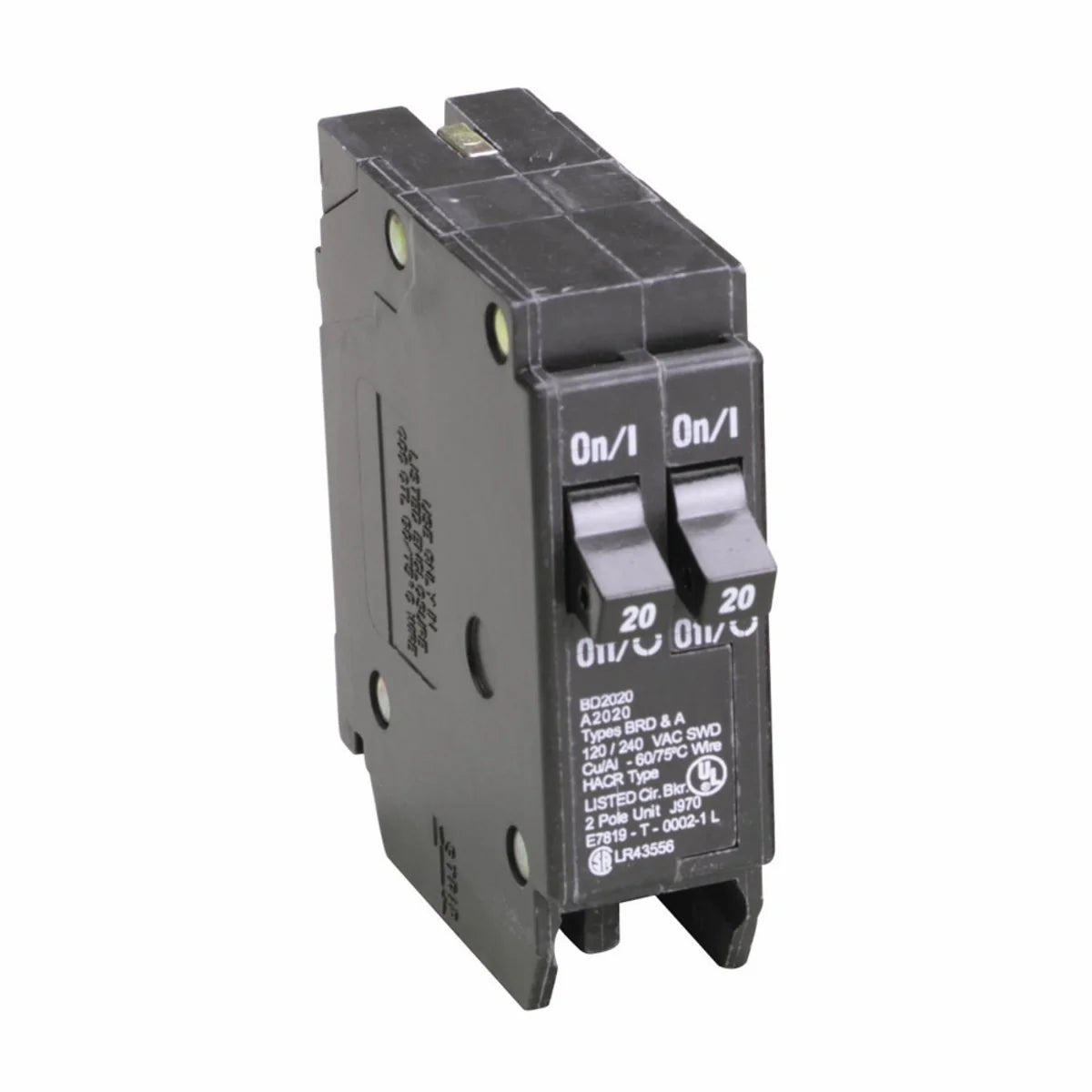

Eaton BD2020 Type BD Duplex Circuit Breaker, 120 VAC, (2) 20 A, 10 kA Interrupt, 1 Pole

Product Description

The Eaton BD2020 Type BD Duplex Circuit Breaker is designed for use in load centers and panelboards. This circuit breaker operates at one hundred twenty volts alternating current and has a dual rating of twenty amperes. It includes a thermal and magnetic trip mechanism with a ten kiloamp interrupt rating.

• Designed for one hundred twenty volts AC
• Features thermal/magnetic trip for reliable protection
• Compatible with 14 to 4 AWG wire

Product Highlights

This circuit breaker is suitable for use in various applications including residential settings, commercial installations, and more. It is built to UL 489 standards and is ideal for protecting electrical loads in different environments.

Product Information

Standard Information

• Manufacturer: Eaton
• Catalog Number: BD2020

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: (2) 20 A
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Trip Type: Thermal/Magnetic
• Mounting Type: Plug-On
• Dimensions: 3 in L x 1 in W x 3 in H
• Country of Origin: Dominican Republic
