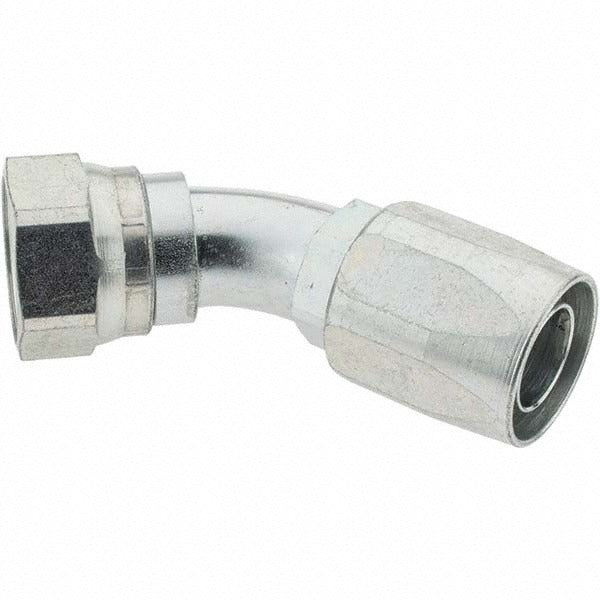

Eaton BD-C24722 Female Swivel Fitting 1-5/16-12 Jic

Product Description

The EATON BD-C24722 is a reusable female swivel hose fitting designed for hydraulic and fluid-transfer hose assemblies. It features a 1-5/16-12 JIC thread and accepts a 7/8 inch hose ID, allowing field technicians and hydraulic specialists to assemble or service hose ends without discarding the fitting. The carbon steel construction provides solid mechanical strength for typical hydraulic system pressures. The swivel design allows the fitting body to rotate freely during installation, reducing hose twist and simplifying routing in tight plumbing layouts.

This fitting is suited for hydraulic hose assemblies used in industrial, mobile equipment, and fluid-power applications. The reusable style makes it a cost-effective choice for shops and field crews that regularly build or repair hose assemblies. JIC fittings are a standard connection type across a wide range of hydraulic systems, making this fitting broadly applicable wherever 1-5/16-12 JIC female swivel terminations are required.

Key Features

• 1-5/16-12 JIC thread for compatibility with standard JIC hydraulic connections
• Accepts 7/8 inch hose ID for direct hose assembly without special adapters
• Reusable design allows disassembly and reassembly in the field
• Female swivel configuration reduces hose twist during installation
• Carbon steel construction for mechanical durability in hydraulic service

Compatibility

Designed as a reusable female swivel hose end fitting for hydraulic hose assemblies requiring a 1-5/16-12 JIC thread connection and a 7/8 inch hose ID.

Installation Notes

Installation is typically performed by hydraulic hose specialists or maintenance technicians. Depressurize and drain the hydraulic circuit fully before disconnecting any existing hose assemblies. Follow the hose and fitting manufacturer assembly procedure for reusable fittings, including proper skiving or preparation of the hose end as required. Verify thread engagement and swivel function before returning the system to service.
