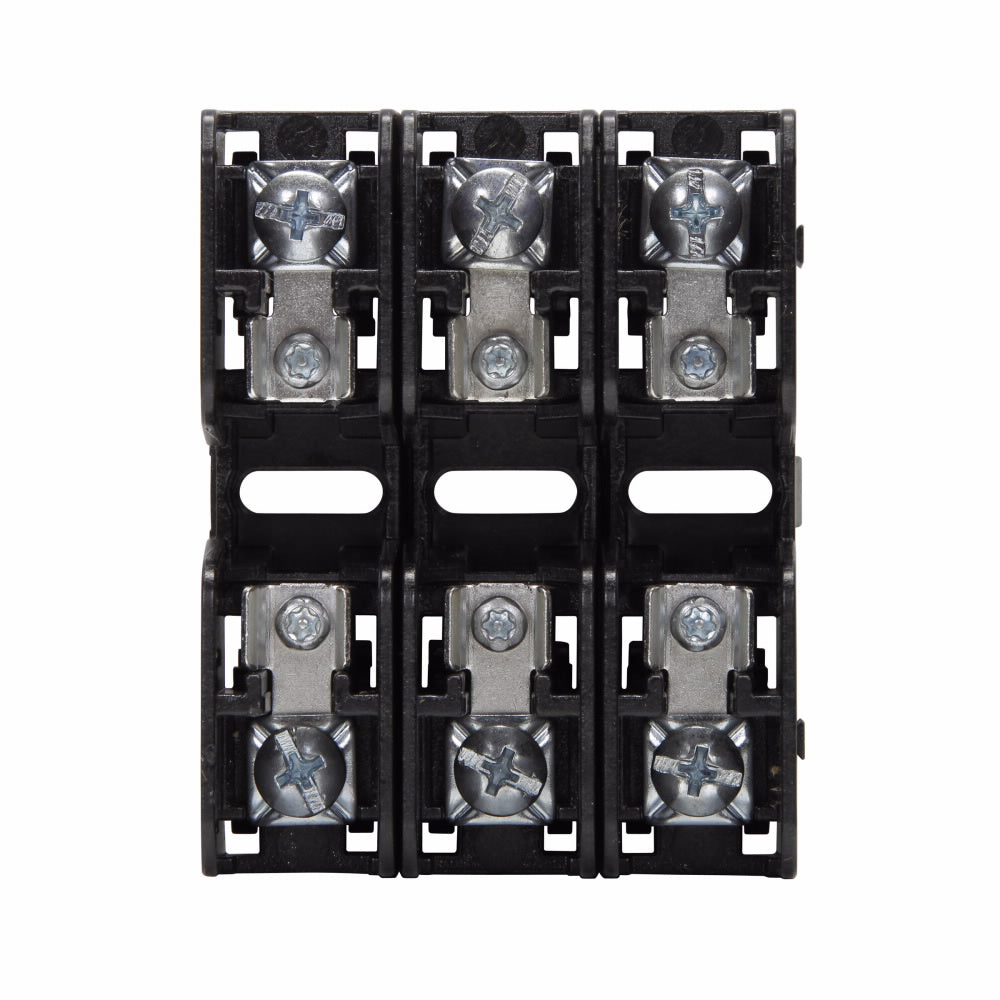

Eaton BCM603-3P BCM Modular Fuse Block 600 VAC 30 A 3 Poles Replaces BC6033P

Product Description

The Eaton BCM603-3P is a modular fuse block designed for electrical assemblies and panels. This component operates at 600 VAC and can handle up to thirty amps with three poles. It works with multiple wire sizes from eighteen to ten AWG, making it versatile for various applications. The fuse block has a temperature range from negative forty to one hundred twenty degrees Celsius, ensuring performance in diverse environments.

• Modular design allows for tool-less assembly
• Compatible with DIN rail and panel mounts
• Made from thermoplastic for durability

Product Highlights

The BCM603-3P fuse block is designed for use with Low-Peak LP-CC Series time delay fuses and Limitron FNQ-R series fast-acting fuses. Its compact size maximizes panel space efficiency.

Product Information

Standard Information

• Manufacturer: Eaton
• MPN: BCM603-3P

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Material: Thermoplastic
• Temperature Rating: -40 to 120 degrees Celsius
• Dimensions: 3 inches L x 2.4 inches W x 1.3 inches H
• Mounting Type: DIN Rail/Panel
• Suitable For Use With: Low-Peak LP-CC Series, Limitron FNQ-R, Limitron KTK-R fuses
• Standards/Approvals: CE Certified, CSA 47235-6225-01, RoHS Compliant, UL File No. E14853 Guide IZLT, UL94 V-0 Flammability Rating
